Hardware Orientation; Front Panel - RGBlink Mini Quick Start Manual

Hardware Orientation

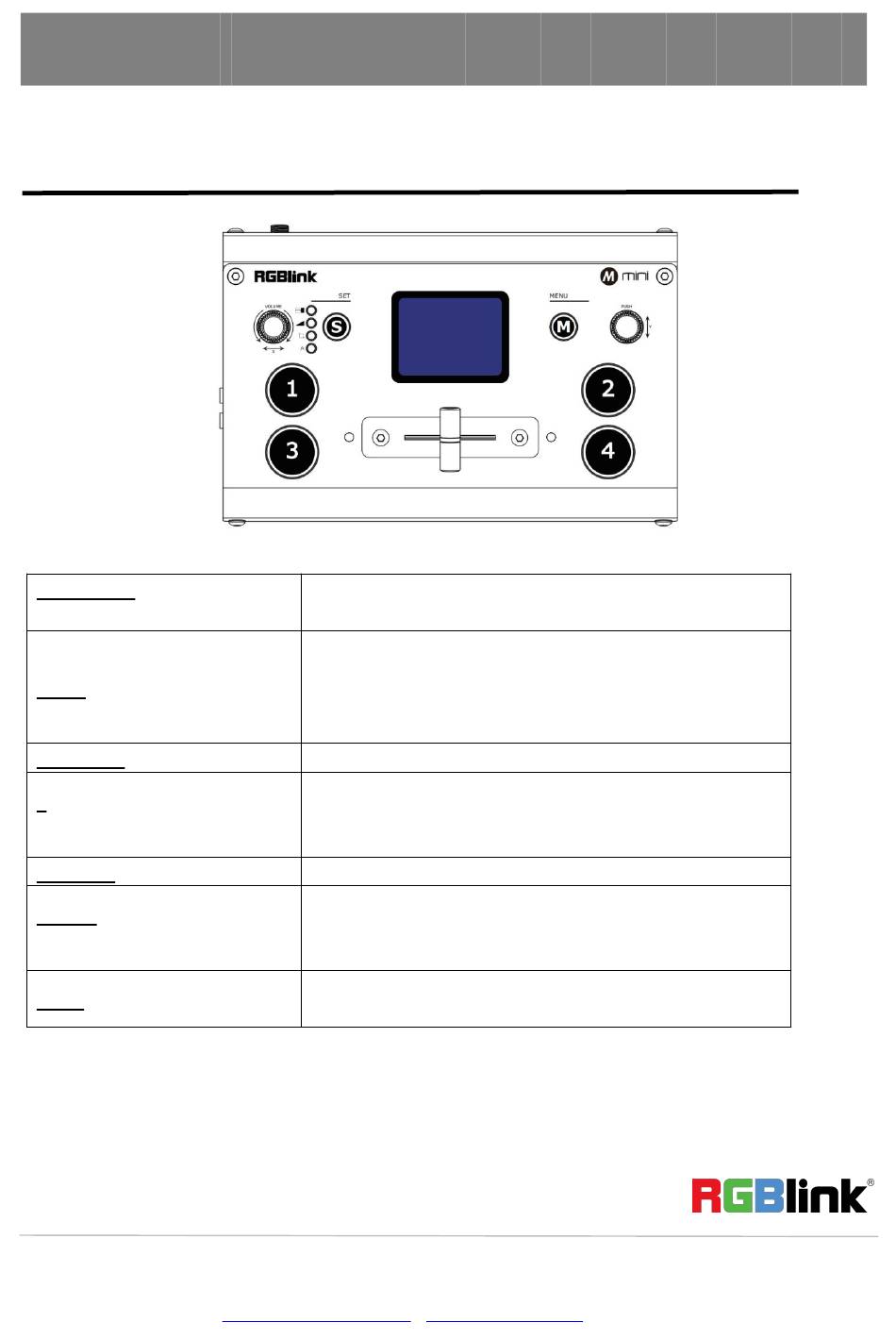

Front Panel

TFT display
PUSH
M( menu)
S
VOLUME
1,2,3,4
T-Bar
© Xiamen RGBlink Science & Technology Co., Ltd.
Ph: +86 592 5771197 |
To display 4 inputs and menu
Knob, turn to select menu item, push to comfirm
Work as a quick button to switch HDMI Out between
6-Picture PVW and PGM when TFT is under the state
of previewing 4 inputs
Menu and Back Button
Function Select button, to select Transition effect,
Switch Mode (Fast or T-Bar), PIP and FX (reserved
licensed feature for future)
Turn to adjust volume of PGM
4 inputs, red is on air (PGM), static green is signal
standing by to switch, flash green is the ready to be
switched
Manual switch, push to left end or right end to switch
signal to PGM.
