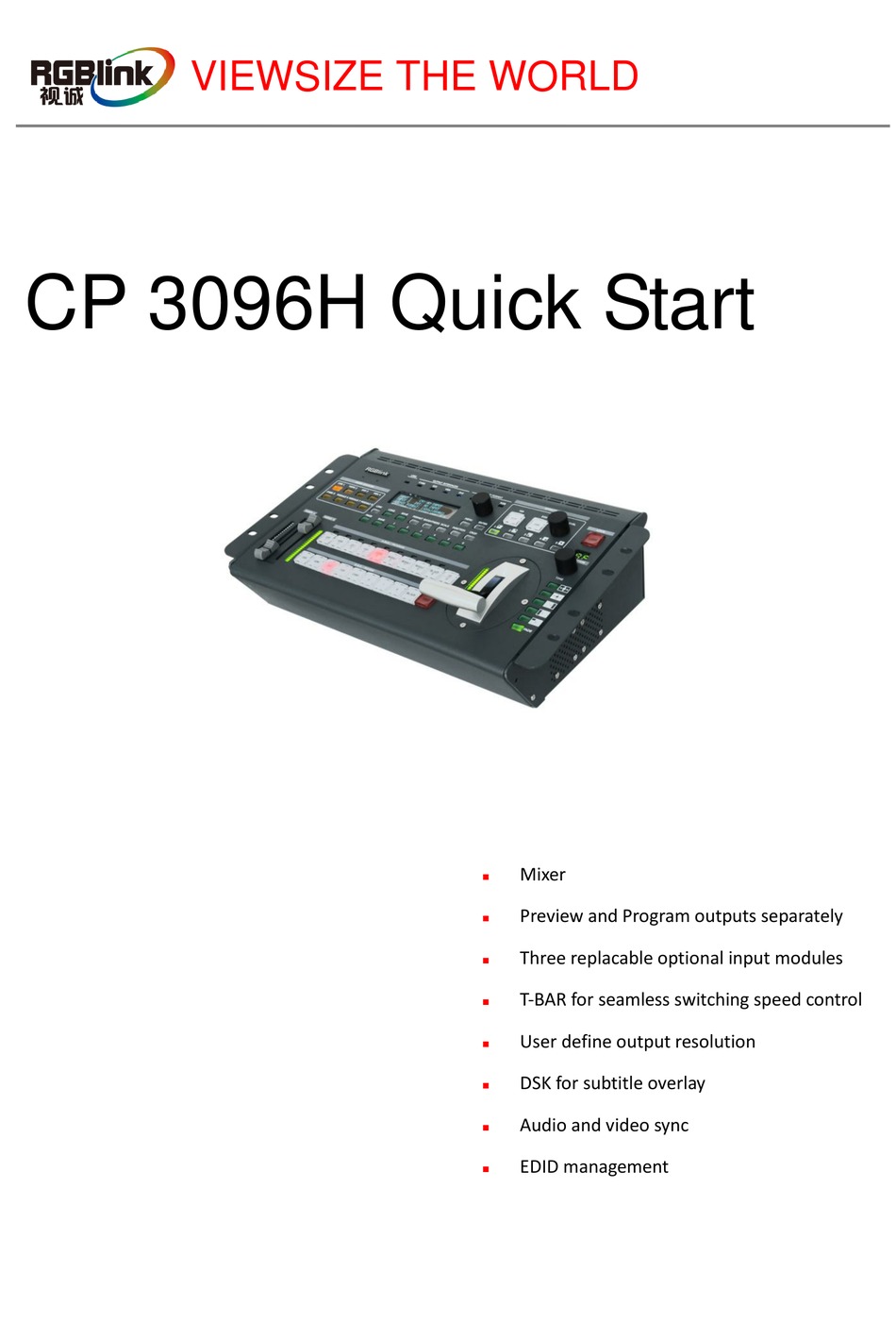

- Page 1 VIEWSIZE THE WORLD CP 3096H Quick Start Mixer Preview and Program outputs separately Three replacable optional input modules T-BAR for seamless switching speed control User define output resolution DSK for subtitle overlay Audio and video sync ...
-
Page 2: Table Of Contents
How to Realize the Text Overlay Setting .................. 16 How to Save the Parameter ...................... 16 How to Load the Saved Parameter ................... 16 Contact Information..........................17 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 3: Product Introduction
Product Introduction The CP 3096H is a mixer that supports analog and digital video graphics to be mixing together and switch to the outputs. The operator can check the input separately by its Preview output, before taking the dedicated input to the Program output. CP 3096H supports fully seamless switcher function based on this application. -
Page 4: Packing Configuration
SDI Cable Quick Start Note: SDI cable is only for SDI optional module. Chinese Standard, American Standard or European Standard power cord is option. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 5: Hardware Orientation
Effects operation area Audio sources area Lock top panel area Function area Transition time control area Volume control area Effects switch control area Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 6: Indicator Area
Button Instruction OLED Panel Show operation menu items MENU Menu button Knob Confirm and adjust OLED menu ENTER Confirm button 3. Audio Sources Area Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 7: Function Area
BANK Total 6 banks, use for save and load BRIGHTNESS Brightness adjustment button Number button, use for save and load SCALE Scale button Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 8: Volume Control Area
DVI signal source button Test Pattern button VGA signal source button Number button, use for scale, crop and position adjustment CVBS CVBS signal source button Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 9: Effects Operation Area
Single and double image switch button Alpha adjustment button DSK effect button PIP layouts shortcut button 8. Lock Top Panel Area Button Instruction LOCK Lock top panel Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 10: Transition Time Control Area
Show transition time Knob Adjust transition time 10. Effects Switch Control Area Button Instruction TAKE Effects switch button Effects mode T-bar Switch effects mode manually Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 11: Back Panel
CVBS output BNC port CVBS input BNC port 19~21 S.H.D.U.V.C optional module Other Interface Dial Switch USB Interface 3. 4 RS-232 Interface Switch Power IEC-3 Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 12: Operating Instruction
How to Realize Screen Size and Full Size Switching How to Realize the Text Overlay Setting How to Save the Parameter How to Load the Saved Parameter Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 13: How To Change The Transition Effects
Only 50 0r digital 60 supports for the refresh rate. Use the digital buttons to finish the settings. 6. After input all the values, push knob to enable CP 3096H to output this resolution. CP 3096H will take 5 to 10 seconds to enable this output resolution. -
Page 14: How To Realize Single Image Switching
How to Realize Single Image Switching CP 3096H can realize seamless effects switch between two channels, choose the signal in PREVIEW area, then push the [TAKE] button, the signal will be switched to LED display. For example, switch VGA to LED display, first push the [VGA] button in PREVIEW area, then push the [TAKE] button or T-bar in effects switch control area, the LED display will show VGA signal. -
Page 15: How To Set The Position Of Image
SWAP IMAGE: It can set PIP to swap exchange, when choose ON, it can realize the main and sub-picture exchange. SELECT: Can choose to set the size or position of IMAGE A or IMAGE B individually. Address：S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C Tel: 00865925771197 Fax:00865925771202 Email: rgblinkcs@gmail.com http://www.rgblink.cn... -
Page 16: How To Use Black Out
Black signal realizes one-key-touch to a black screen. CP 3096H provides black effect processing for program output with fade in fade out effect. Push the [BLACK/9] button, then output turns to black with fade in fade out effect. As shown below: How to Realize the Screen Size and Full Size Switching 1. -
Page 17: How To Realize The Text Overlay Setting
How to Load the Saved Parameter There are two pages and each page has 6 save modes, CP 3096H provides 12 save modes for load. 1. Push the [LOAD] button, the button light turns on, and PAGE, 1 and 2 button light flash. -
Page 18: Contact Information
All video products are designed and tested to the highest quality standard and backed by a full 3-year parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include...
