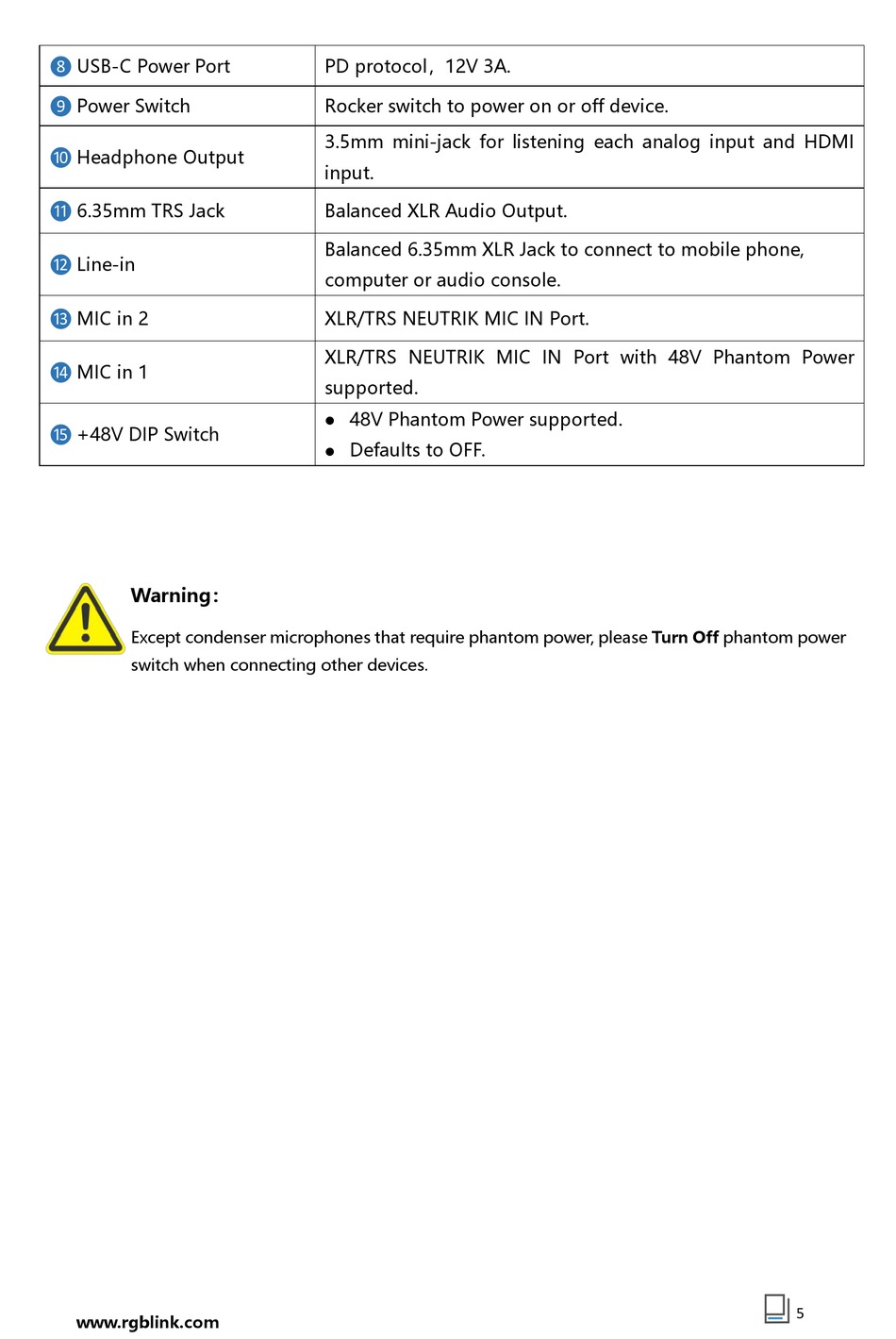

RGBlink mini-mx Quick Start Manual page 7

❽ USB-C Power Port
❾ Power Switch
❿ Headphone Output
⓫ 6.35mm TRS Jack
⓬ Line-in
⓭ MIC in 2
⓮ MIC in 1
⓯ +48V DIP Switch
Warning：
Except condenser microphones that require phantom power, please Turn Off phantom power
switch when connecting other devices.
www.rgblink.com
PD protocol，12V 3A.
Rocker switch to power on or off device.
3.5mm mini-jack for listening each analog input and HDMI
input.
Balanced XLR Audio Output.
Balanced 6.35mm XLR Jack to connect to mobile phone,
computer or audio console.
XLR/TRS NEUTRIK MIC IN Port.
XLR/TRS NEUTRIK MIC IN Port with 48V Phantom Power
supported.
48V Phantom Power supported.

Defaults to OFF.

5
