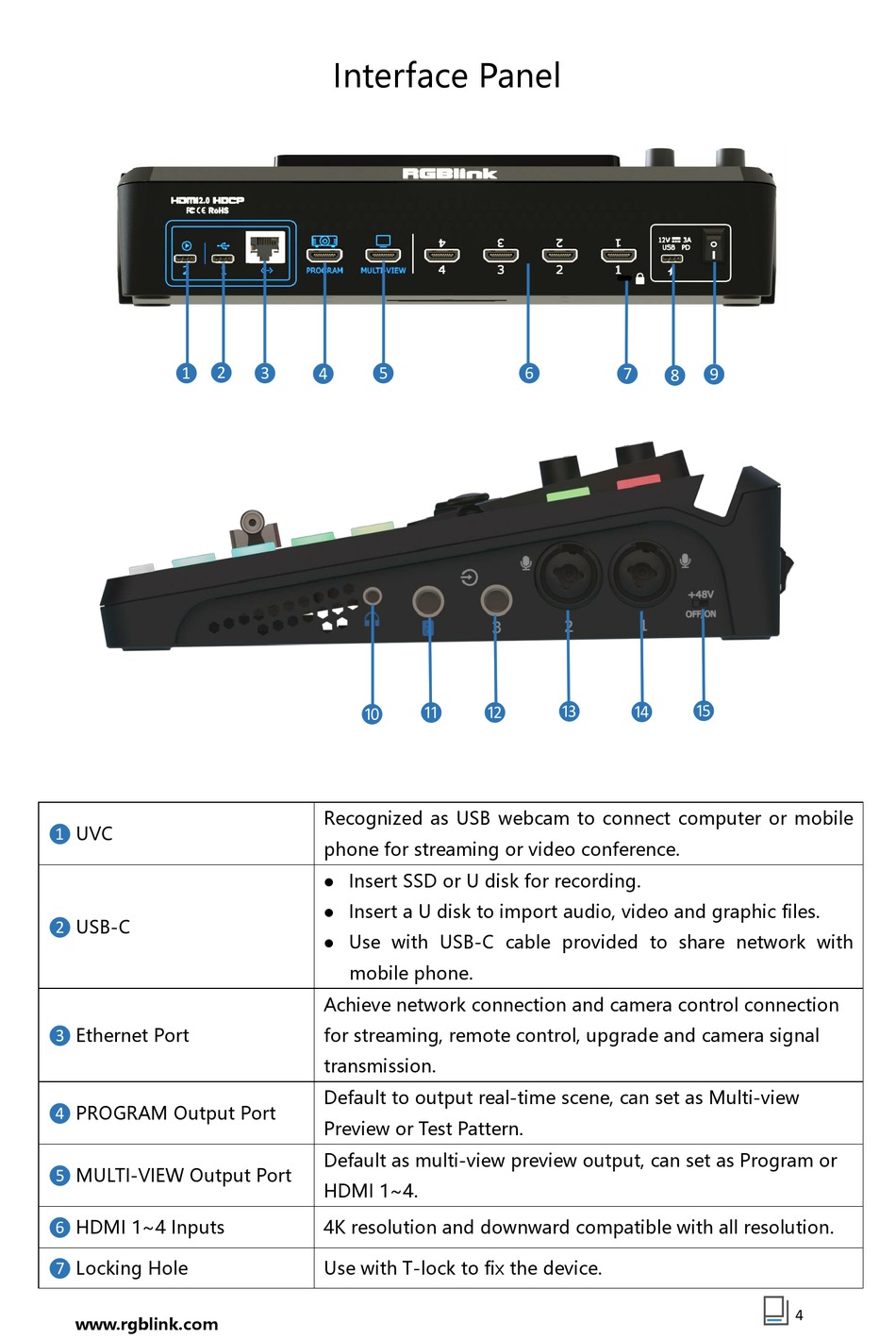

Interface Panel - RGBlink mini-mx Quick Start Manual

❷
❶
❶ UVC
❷ USB-C
Ethernet Port
❸
❹ PROGRAM Output Port
❺ MULTI-VIEW Output Port
❻ HDMI 1~4 Inputs
❼ Locking Hole
www.rgblink.com

Interface Panel

❸ ❹ ❺
⓫
❿
Recognized as USB webcam to connect computer or mobile
phone for streaming or video conference.
Insert SSD or U disk for recording.

Insert a U disk to import audio, video and graphic files.

Use with USB-C cable provided to share network with

mobile phone.
Achieve network connection and camera control connection
for streaming, remote control, upgrade and camera signal
transmission.
Default to output real-time scene, can set as Multi-view
Preview or Test Pattern.
Default as multi-view preview output, can set as Program or
HDMI 1~4.
4K resolution and downward compatible with all resolution.
Use with T-lock to fix the device.
