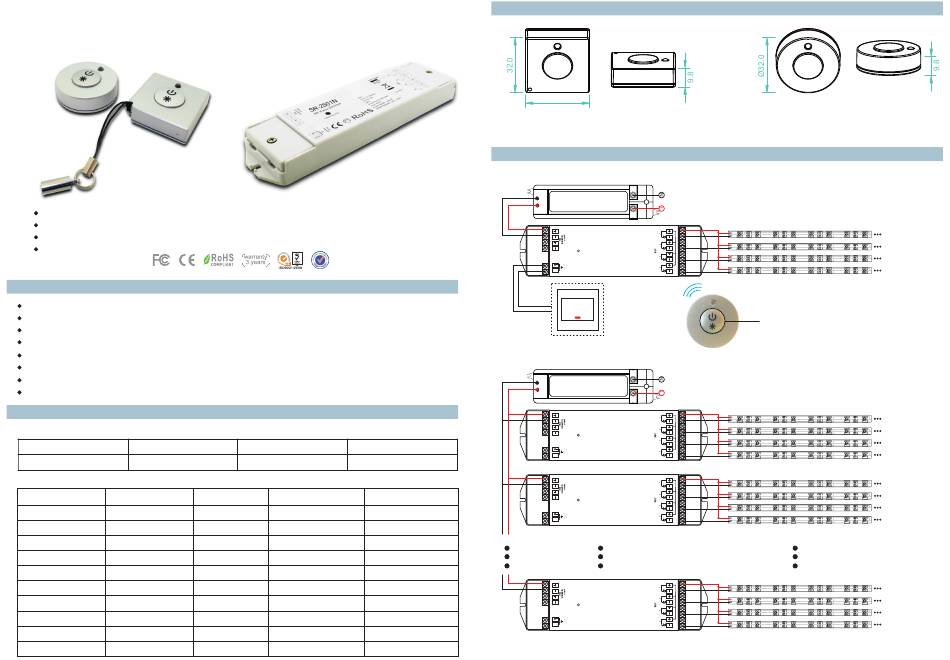

Sunricher SR-2807 Series Manual

1 Zones Mini RF Single Color LED Dimmer
SR-2807 with SR-2501 series
Mini RF wireless dimmer
Battery include with remote
On/Off function
Memory Function

Feature

Reliable&stable switch and dimming control function.
Long time span battery for 2 years
Switch on/off lightings slowly,without any flash,meet the comfort of human eyes.
Dimming range:0.1-100%
Use with power repeater to expand the output power unlimitedly.
One zone controlled, but can be set endless receivers, each receiver can be controlled by 8 different remotes.
Enable be dimmed and ON/OFF by push button after connecting receivers.
Receivers can work with RF-WIFI converter after installing software on ISO and Android system.

Parameter

Remote
Item No Operation Voltage
SR-2807 3VDC
Correspond Receiver
Input Voltage
Part No.
SR-2501N 12-36VDC
SR-2501NEA 12-36VDC
SR-2502N 12-36VDC
SR-2503N 12-36VDC
SR-2501NTC 12-36VDC
SR-2502NTC 12-36VDC
SR-2503NTC 12-36VDC
SR-2501NS 12-36VDC
SR-2502NS 12-36VDC
SR-2503NS 12-36VDC
Operation Frequency
434MHz/868MHz
Output Current Output Power
4x(60-180)W
4x5A
Constant voltage
4x8A 4x(96-288)W
Constant voltage
4x0.35A 4x(4.2-12.6)W Constant current
4x0.7A 4x(8.4-25.2)W
Constant current
2x(60-180)W
2x5A Constant voltage
2x(4.2-12.6)W
2x0.35A Constant current
2x(8.4-25.2)W
2x0.7A
Constant current
1x(96-288)W
1x8A
Constant voltage
1x0.7A 1x(8.4-25.2)W Constant current
1x1.4A 1x(16.8-50.4)W
Constant current

Product size

32.0
SR-2807(square)

Wiring diagram

1)Receiver Connection Diagram for Single Unit
GND
2)Receiver Connection Diagram for Multiple Units
Battery
GND
Cr2025
Remarks
GND
GND
Power Supply
AC110-230V
12-36VDC
SR-2501N
RF Easy Dimmer
Learning Key
PUSH
Power Supply
AC110-230V
12-36VDC
SR-2501N
RF Easy Dimmer
Learning Key
SR-2501N
RF Easy Dimmer
Learning Key
SR-2501N
RF Easy Dimmer
Learning Key
SR-2807(round)
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
short press is turn ON/OFF,long press is
Dimming up/down.
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
Single Color LED Strip
