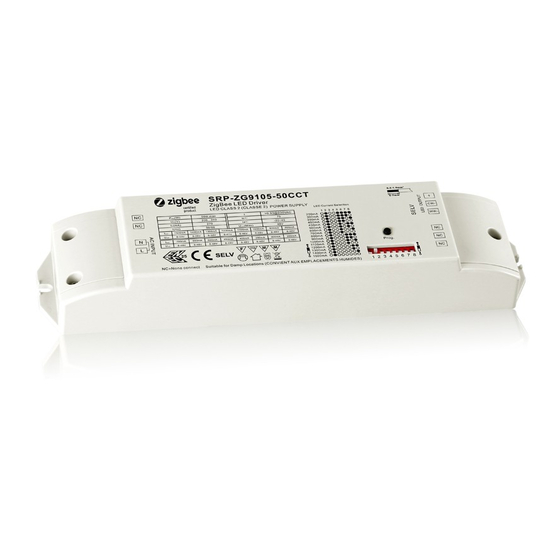

Sunricher SRP-ZG9105-50CCT-HP Instruction

50W ZigBee CCT LED Driver(constant current)
Important: Read All Instructions Prior to Installation
Function introduction
Program Key:
8-230V Push Switch Input
press and hold down to increase/decrease light intensity
Push Switch Input
ZigBee LED Driver
AC 200-240V input
Product Data
Selectable Current 250mA
DC Voltage Range 8-48V
Output
Selectable Current 800mA 900mA 1000mA 1100mA 1200mA 1300mA 1400mA 1500mA
DC Voltage Range 8-48V
Rated Power
Voltage Range
Frequency
Power Factor (Typ.)
Input
Efficiency (Typ.)
Input Current
Inrush Current (Typ.)
Short Circuit
Over Voltage
Protection
Over Temperature
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp. &
Humidity
emc
300MHz
short press to switch on/off load,
LED+
2 channels CCT
CW-
output
WW-
NC
Prog key NC
1 2 3 4 5 6 7 8
Dips to set the
operation current
300mA 350mA 400mA 450mA 500mA 600mA 700mA
8-48V 8-48V 8-48V 8-48V 8-48V
8-48V 8-48V 8-46V 8-41V 8-38V
50W max.
200-240V AC
50/60Hz
>0.9
87% @ 230VAC
0.27A @ 230VAC
COLD START Max. 2A @ 230VAC
Yes, auto recovery after fault removed
Yes, auto recovery after fault removed
Yes, auto recovery after fault removed
-20 ℃ ~ +45 ℃
85 ℃ ( Ta=" 45 ℃ " )
10% ~ 95% RH non-condensing
40 80 , 10% ~ 95% RH
- ℃ ~ + ℃
Safety Standards
Withstand Voltage
Safety&EMC
EMC Emission
EMC Immunity
Others
Dips to set the operation current
1 2 3 4 5 6 7 8
• Dimmable LED driver for tunable white
• ZigBee CCT LED light device based on ZigBee 3.0 protocol
• Max. output power 50W total
• 2 channels 250-1500mA constant current output, dips to select multi operation current
8-48V 8-48V
• Class Ⅱ power supply, full isolated plastic case
• Built-in active PFC function, high power factor and efficiency
• Deep and smooth dimming to 0.1%
• Enables to control ON/OFF, light intensity and CCT of connected CCT LED lights
8-35V 8-33V
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink
• Supports find and bind mode to bind a ZigBee remote
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• Compatible with universal CCT ZigBee remotes
• With Push Dim function, can be controlled by universal 8-230V input single wire push switch
• Waterproof grade: IP20, suitable for indoor LED lighting applications
• 5 years warranty
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring Diagram
L N
PUSH
ENEC EN61347-1, EN61347-2-13 approved
I/P-O/P: 3.75KVAC
EN55015, EN61000-3-2, EN61000-3-3
EN61547, EN61000-4-2,3,4,5,6,8,11, surge immunity Line-Line 1KV
190300H, MIL-HDBK-217F @ 230VAC at full load and 25℃
MTBF
ambient temperature
Dimension
210*50*32mm (L*W*H)
1 2 3 4 5 6 7 8
250mA
300mA
350mA
400mA
450mA
500mA
600mA
700mA
Push Switch Input
ZigBee LED Driver
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8
800mA
900mA
1000mA
1100mA
1200mA
1300mA
1400mA
1500mA
V+ V+
CW- CW-
WW- WW-
LED+
CW-
WW-
NC
Prog key NC
CCT color LED light
