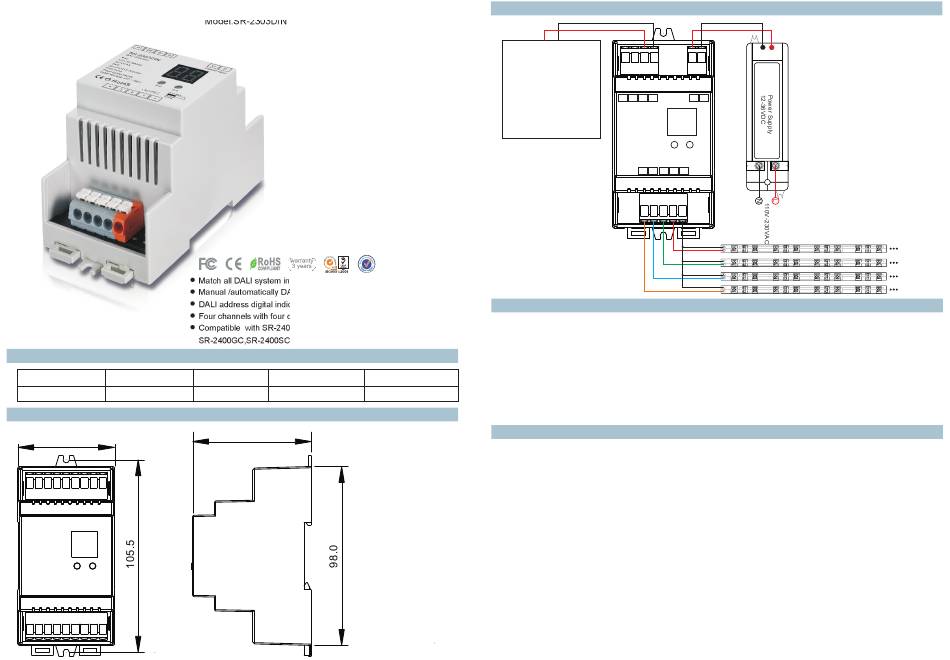

Sunricher SR-2303DIN Quick Start Manual

Parameter
Input Voltage
Part No.
SR-2303DIN 12-36VDC
Product Size
53.0
DALI dimmer
Model:SR-2303DIN
Match all DALI system in the market
Manual /automatically DALI address setting
DALI address digital indicate
Four channels with four different addresses,4 channels work separately
Compatible with SR-2400TL,SR-2400TG,SR-2400TS,SR-2400LC,
SR-2400GC,SR-2400SC and any good quality DALI Master
Output Current Output Power
4x5A Constant voltage
4x(60-180)W
65.0
Wiring diagram
DALI Master
Operation
Setting DALI address
a. Manual:Long press any button---digital address will flicker---short press button to set address we want----
long press any button to confirm.
b. DALI master setting: SR-2302xx Series can also be setting address by all DALI master which possesses this
function. The specific operation can refer to DALI master manual.
Remarks
c. Once an address is selected, the remaining 3 channels will be utilized digitally. For example, if the decoder is
addressed to 22 on the display then CH1 – 22, CH2 – 23, CH3 –24, CH4 – 25.
Safety & Warnings
1) The product shall be installed and serviced by a qualified person.
2) IP20.Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof
enclosure.
3) Always be sure to mount this unit in an area with proper ventilation to avoid overheating.
4) Please check if the output voltage of any LED power supplies used comply with the working voltage of the
product.
5) Never connect any cables while power is on and always assure correct connections to avoid short circuits
before switching on.
6) Please ensure that the cable is secured tightly in the connector
7) For update information please consult your supplier.
D1 D2 D1 D2 V+ V-
Power input
SR-2303DIN
DALI Dimmer
0-6 0-9
4 3 2 1 +
