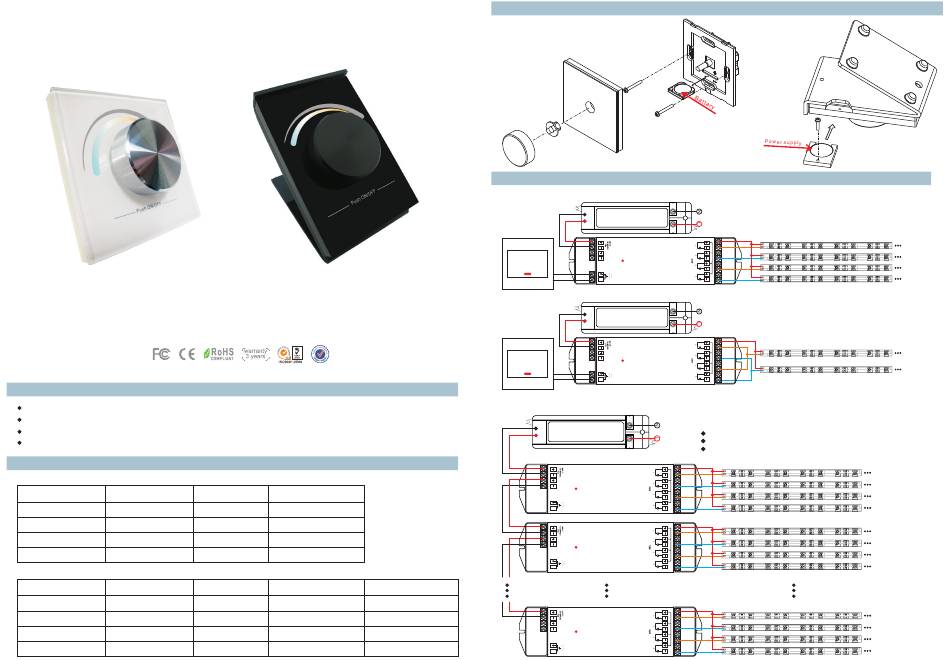

Sunricher SR-2805RCCT Quick Start Manual

Wall Panel RF RGB Dimmer
SR-2805RCCT/SR-2805DCCT/SR-2805RCCT(IT)/SR-2805RCCT(US)
SR-2805RCCT

Feature

Adjust brightness from 0.1-100% & color temperature
Control range<30M
Long time span battery for 2 years
Wireless, easy to change battary

Parameter

Remote
Part No. Operation Voltage
SR-2805RCCT 3VDC
SR-2805DCCT 3VDC
SR-2805RCCT(IT) 3VDC
SR-2805RCCT(US) 3VDC
Receiver
Input Voltage
Part No.
SR-2501M 12-36VDC
SR-2501MEA 12-36VDC
SR-2502M 12-36VDC
SR-2503M 12-36VDC
SR-2805DCCT
Operation
Remarks
Frequency
434MHz/868MHz RF Wireless
434MHz/868MHz RF Wireless
434MHz/868MHz RF Wireless
434MHz/868MHz RF Wireless
Output Current Output Power
4x5A Constant voltage
4x(60-180)W
4x8A 4x(96-288)W
Constant voltage
4x350mA
4x(4.2-12.6)W
4x700mA 4x(8.4-25.2)W

Installation

Wiring diagram

1)Receiver Connection Diagram for Single Unit
PUSH
PUSH
2) Receiver Connection Diagram for Multiple Units
GND
GND
Remarks
Constant current
Constant current
GND
SR-2805RCCT
Power Supply
110V-230VAC
12-36VDC
SR-2501M
Learning Key RF Easy Dimmer
GND
4x5A
Power Supply
110V-230VAC
12-36VDC
SR-2501M
RF Easy Dimmer
Learning Key
GND
2x5A
Note:
Power Supply
110V-230VAC
One receiver can work with 1-8pcs SR-2805RCCT
12-36VDC
One SR-2805RCCT control multiple receivers
The power supply chosen must be 20% higher than the actual
load
SR-2501M
RF Easy Dimmer
Learning Key
SR-2501M
RF Easy Dimmer
Learning Key
SR-2501M
Learning Key RF Easy Dimmer
SR-2805DCCT
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
WW LED Strip
CW LED Strip
