Sunricher SRP-2305N-45CC500-1400 Manual

45W DALI DT6 NFC Enabled LED Driver(Constant Current)
2
Important: Read All Instructions Prior to Installation
Function introduction
AC/DC power
input
L
N
DA
DA DALI Dimmable Driver
DALI signal input
AC Push input

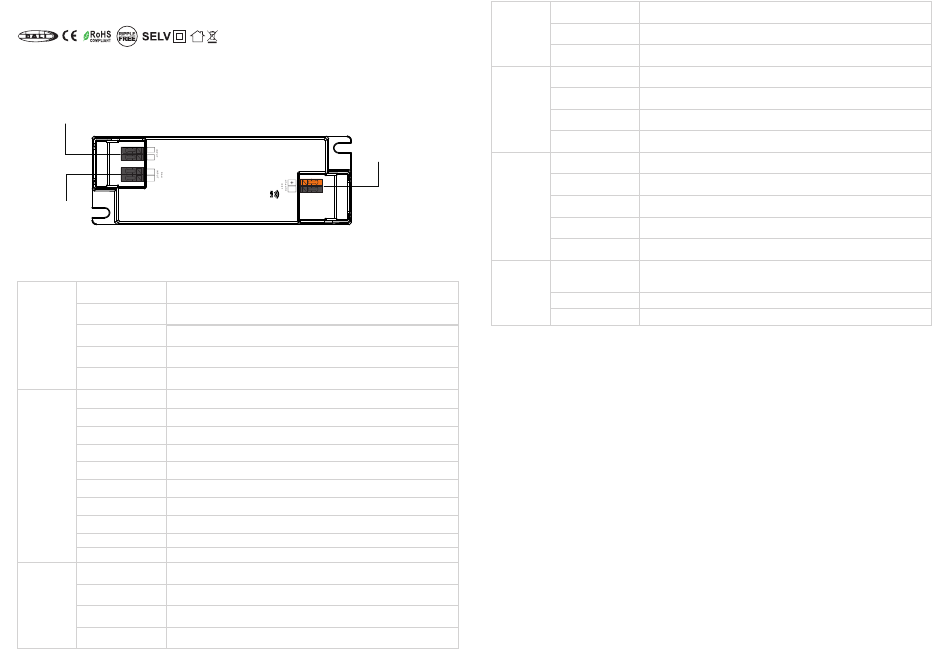

Product Data
LED Channel
DC Voltage
Current 500-1400mA via NFC setting; Min.current gear lower to 0.1mA
Output
Current Accuracy
Rated Power
Voltage Range
Frequency Range
Power Factor (Typ.)
Total Harmonic
Distortion
Efficiency (Typ.)
Input
AC Current (Typ.)
Inrush Current (Typ.)
Leakage Current
Standby Power Consumption
Anti Surge
Dimming Interface
Dimming Range
Control
Dimming Method
Dimming Curve
LED Output
-
1
6-58V
±3%( ±1%@Certain full load) @ full load
Max. 45W
200-240VAC/176-280VDC
0/50/60Hz
> 0.95 @ 230VAC Full load
THD ≤ 10% (@ full load / 230VAC)
＞89% @ 230VAC full load
0.25A @ 230VAC
Max. 8.56A at 230VAC; 88μs duration
< 5mA /230VAC
＜0.5W
L-N:2KV
DALI Device Type 6 (DALI consumption < 2mA)/ AC Push
0.01%-100%@ Max current
Amplitude/CCR dimming
Linear/ Logarithmic optional
Short Circuit
Yes, recovers automatically after fault condition is removed
Over Current
Protection Yes, recovers automatically after fault condition is removed
Over Temperature
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp.
& Humidity
Safety Standards
Withstand Voltage
Safety &
Isolation Resistance
EMC
EMC Emission
EMC Immunity
MTBF
Others
Dimension
Warranty
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，
• Built-in DALI-2 interface, DALI DT6 device
• Dimmable LED driver. Max. output power 45W
• 500-1400mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• To switch and dim LED lighting luminaries
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT6 commands
• Error report function
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
Operation
With DALI master
1. DALI Address
1 DALI address for 1 channel output are assigned by DALI Master controller automatically, please refer to user
manuals of compatible DALI Masters for specific operations.
Yes, recovers automatically after temperature drop
-25℃ ~ +45℃
TC=85℃ (Ta="45℃")
10% ~ 95% RH non-condensing
-40℃ ~ +80℃, 10% ~ 95% RH
EN61347-1, EN61347-2-13
I/P-O/P: 3.75KVAC
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
En55015, EN61000-3-2, EN61000-3-3
En61547, EN61000-4-2,3,4,5,6,8,11
191350H, MIL-HDBK-217F @ 230VAC full load
and 25℃ ambient temperature
145x45x28mm (L*W*H)
5 Years
