Sunricher SRPL-2309N-80CCT350-700H Manual

80W DALI DT8 NFC Enabled LED Driver(Constant Current)
2
Important: Read All Instructions Prior to Installation

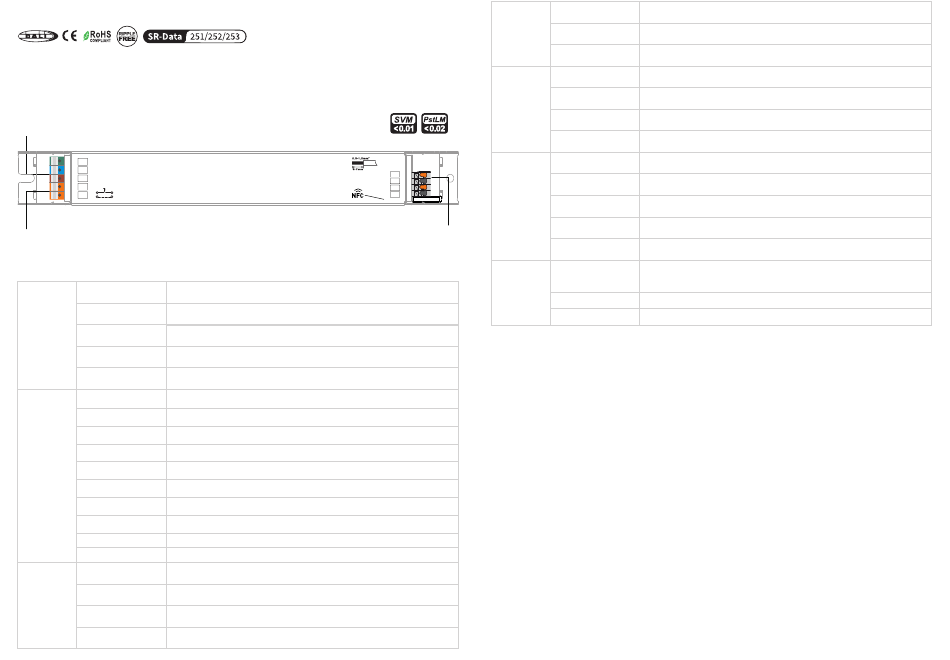

Function introduction
AC/DC power
input
GND
ACN/
DC-
DALI DIMMABLE DRIVER
ACL/
DC+
PUSH DIM
DA
L DA
DA
N DA
DALI signal input
AC Push input
Product Data
LED Channel
DC Voltage
Current
Output
Current Accuracy
Rated Power
Voltage Range
Frequency Range
Power Factor (Typ.)
Total Harmonic
Distortion
Efficiency (Typ.)
Input
AC Current (Typ.)
Inrush Current (Typ.)
Leakage Current
Standby Power Consumption
Anti Surge
Dimming Interface
Dimming Range
Control
Dimming Method
Dimming Curve
2
50-220V
350-700mA via NFC setting; Min.current gear lower to 0.1mA
±3%@ full load
Max. 80W
220-240VAC/VDC
0/50/60Hz
> 0.98 @ 230VAC Full load
THD ≤ 12% (@ full load / 230VAC)
＞91% @ 230VAC full load
0.42A @ 230VAC
Max. 26.1A at 230VAC; 280μs duration
< 5mA /230VAC
＜0.5W
L-N:1KV/ L-N-G: 2KV
DALI Device Type 8 (DALI consumption < 2mA)/ AC Push
0.01%-100%@ Max current
Amplitude/CCR dimming
Linear/ Logarithmic optional
Short Circuit
Over Current
Protection
Over Temperature
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp.
Safety Standards
WW+
WW-
Withstand Voltage
CW+
CW-
Safety &
Isolation Resistance
EMC
EMC Emission
LED Output
EMC Immunity
Others
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2, IEC 62386-209
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver with linear metal housing. Max. output power 80W
• 350-700mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool
• For luminaires of protection class I and protection class II
• High power factor and efficiency. Non-SELV rated driver
• To switch and dim LED lighting luminaries , Tunable White control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• DALI-251/252/253 Enabled，DALI data inside
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
Operation
With DALI master
1. DALI Address
1 DALI address for 2 channel output are assigned by DALI Master controller automatically, please refer to user
manuals of compatible DALI Masters for specific operations.
Yes, recovers automatically after fault condition is removed
Yes, recovers automatically after fault condition is removed
Yes, recovers automatically after temperature drop
10% ~ 95% RH non-condensing
-40℃ ~ +80℃, 10% ~ 95% RH
& Humidity
EN61347-1, EN61347-2-13, GB 19510.1-2023, GB 19510.213-2023
I/P-O/P: 3.75KVAC
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
EN55015, EN61000-3-2, EN61000-3-3, GB 17625.1-2022, GB/T 17743-2021
EN61547, EN61000-4-2,3,4,5,6,8,11
191350H, MIL-HDBK-217F @ 230VAC full load
MTBF
and 25℃ ambient temperature
Dimension 285x30x21mm (L*W*H)
Warranty
-25℃ ~ +60℃
Tc=90℃
5 Years
