Sunricher SR-ZG9041A-D Manual

ZigBee Micro Smart Dimmer
Important: Read All Instructions Prior to Installation

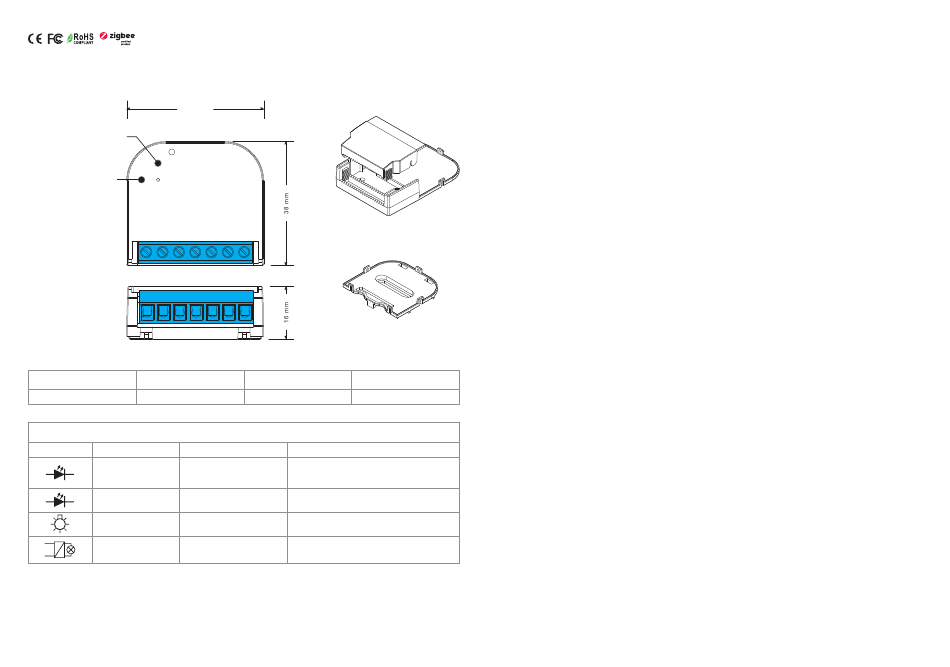

Function introduction
42 mm
"Reset" Key: factory reset of
the dimmer, turn on/off load
Reset
Min. Set Button
1) Set minimum brightness
2) Set startup brightness
Min.Set
N N O L
Product Data
Input Voltage Output Voltage
100-240VAC 100-240VAC
Compatible Load Types
Load Symbol Load Type
Dimmable LED lamps
Dimmable LED drivers
Incandescent lighting,
HV Halogen lamps
Low voltage halogen
lighting with electronic
transformers
ZigBee Clusters the device supports are as follows:
Input Clusters
• 0x0003: Identify • 0x0004: Groups
• 0x0000: Basic
• 0x0702: Simple Metering • 0x0008: Level Control
Output Clusters
• 0x0019: OTA
Accessory 1: Wire clamp cover.
L L SW
Need to purchase separately.
Accessory 2: din rail bracket.
Need to purchase separately.
Output Current Size(LxWxH)
0.1-1.1A 42x38x16mm
Maximum Load Remarks
Due to variety of LED lamp designs, maximum
200W @ 230V
number of LED lamps is further dependent on power
100W @ 110V
factor result when connected to dimmer.
200W @ 230V
Maximum permitted number of drivers is 200W
100W @ 110V
divided by driver nameplate power rating.
250W @ 230V
125W @ 110V
200W @ 230V
100W @ 110V
• 0x0005: Scenes • 0x0006: On/off
• 0x0b04: Electrical Measurement • 0x0b05: Diagnostics
• ZigBee AC phase cut dimmer based on latest ZigBee 3.0 protocol
• 100-240VAC Wide Input and Output Voltage
• Supports resistive loads, capacitive loads or inductive loads
• 1 Channel Output, Up to 250W
• Input and Output with Screw Terminals, Safe and Reliable
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink without coordinator
• Compatible with universal ZigBee gateway products
• Support power metering
• Mini Size, Easy to be Installed into a standard 86*86mm wall box
Main Features:
• Can operate under two-wire connection with no neutral lead or three-wire connection with neutral lead
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting function
• Works with various types of switches – momentary, toggle, three-way, etc.
• Active element: semiconductor electronic switch
• To be installed in wall switch boxes of dimensions allowing for installation, conforming to provisions of applicable
regulations
• The Bypass is an extension unit
As a dimmer it operates under the following loads:
• Conventional incandescent and HV halogen light sources
• ELV halogen lamps and dimmable LED bulbs (with electronic transformers)
• MLV halogen lamps (with ferromagnetic transformers)
• Dimmable LED bulbs
• Dimmable compact fluorescent CFL tube lamps
• Supported dimmable light sources (power factor > 0.5) with minimal power of 3VA using the Bypass (depending on the
type of load)
Trailing edge or leading edge dimming mode can be preset by factory setting to control following types of loads:
• "Trailing edge" for resistive loads
• "Trailing edge" for capacitive loads
• "Leading edge" for inductive loads
Note: factory default version is trailing edge.
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Wiring Diagram
Notes for the diagrams:
L - terminal for live lead
N - terminal for neutral lead
O - output terminal of the dimmer (controlling connected light source)
SW - terminal for switch
