Sunricher SRP-2309N-36CCT350-1050 Manual

36W DALI DT8 NFC Enabled LED Driver(Constant Current)
2
Important: Read All Instructions Prior to Installation

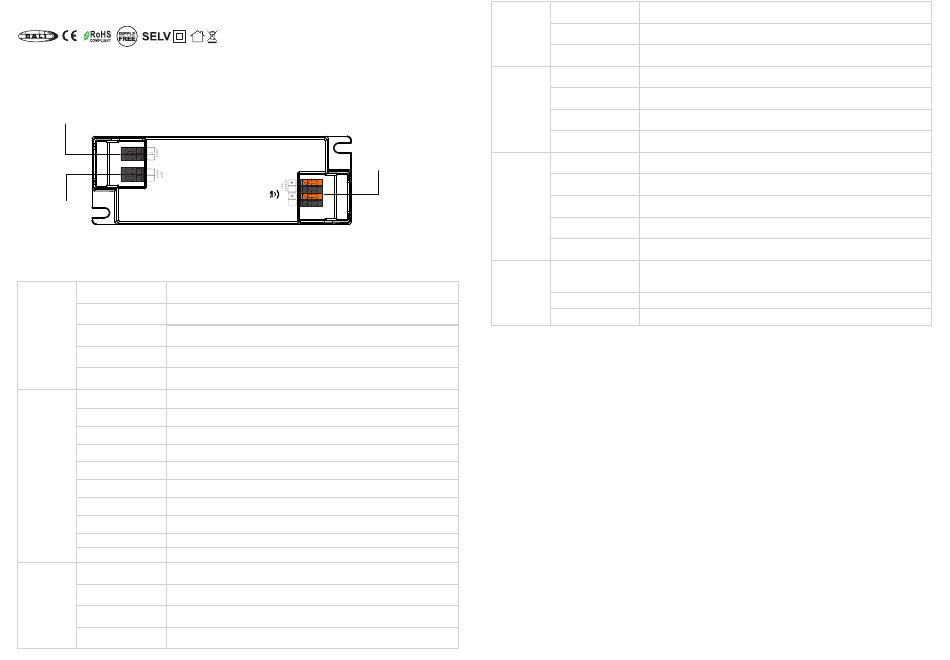

Function introduction
AC/DC power
input
L
N
DA
DA DALI Dimmable Driver
DALI signal input
AC Push input
Product Data
LED Channel
DC Voltage
Current 350-1050mA via NFC setting; Min.current gear lower to 0.1mA
Output
Current Accuracy
Rated Power
Voltage Range
Frequency Range
Power Factor (Typ.)
Total Harmonic
Distortion
Efficiency (Typ.)
Input
AC Current (Typ.)
Inrush Current (Typ.)
Leakage Current
Standby Power Consumption
Anti Surge
Dimming Interface
Dimming Range
Control
Dimming Method
Dimming Curve
LED Output
WW-
CW-
2
6-54V
±3%( ±1%@Certain full load) @ full load
Max. 36W
200-240VAC/176-280VDC
0/50/60Hz
> 0.95 @ 230VAC Full load
THD ≤ 10% (@ full load / 230VAC)
＞86% @ 230VAC full load
0.25A @ 230VAC
Max. 8.56A at 230VAC; 88μs duration
< 5mA /230VAC
＜0.5W
L-N:2KV
DALI Device Type 8 (DALI consumption < 2mA)/ AC Push
0.01%-100%@ Max current
Amplitude/CCR dimming
Linear/ Logarithmic optional
Short Circuit
Yes, remove the fault conditions and re-power the device
Over Current
Protection Yes, remove the fault conditions and re-power the device
Over Temperature Yes, remove the fault conditions and re-power the device
Working Temp.
Max. Case Temp.
Environment
Working Humidity
Storage Temp.
& Humidity
Safety Standards
Withstand Voltage
Safety &
Isolation Resistance
EMC
EMC Emission
EMC Immunity
MTBF
Others
Dimension
Warranty
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2，IEC 62386-209:2011
• Built-in DALI-2 interface, DALI DT8 device
• Dimmable LED driver. Max. output power 36W
• 350-1050mA current selectable via NFC program tool. Min.current gear lower to 0.1mA
• DALI Address/Group/Scene setting via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
• ON/OFF, Dimming and Tunable White control
• Amplitude/CCR dimming, smooth and deep dimming
• Compatible with universal DALI masters that support DT8 commands
• Error report function
• IP20 rating, suitable for indoor LED lighting applications
• 5 years warranty
Safety & Warnings
• DO NOT install with power applied to the device.
• DO NOT expose the device to moisture.
Operation
With DALI master
1. DALI Address
1 DALI address for 2 channels output are assigned by DALI Master controller automatically, please refer to user
manuals of compatible DALI Masters for specific operations.
-25℃ ~ +45℃
TC=85℃ (Ta="45℃")
10% ~ 95% RH non-condensing
-40℃ ~ +80℃, 10% ~ 95% RH
EN61347-1, EN61347-2-13
I/P-O/P: 3.75KVAC
I/P-O/P: 100M Ohms / 500VDC / 25℃ / 70% RH
En55015, EN61000-3-2, EN61000-3-3
En61547, EN61000-4-2,3,4,5,6,8,11
191350H, MIL-HDBK-217F @ 230VAC full load
and 25℃ ambient temperature
145x45x28mm (L*W*H)
5 Years
