Sunricher Universal Series Quick Start Manual

Universal series DALI dimmer
2
Important: Read All Instructions Prior to Installation
Function introduction
Digital display
DALI DIMMER
DA
DA
0-6 0-9
DA
PUSH DIM
L DA
N DA
DA
2 groups DALI/Push
Manual set button
input & output
Product Data
Input Output Output
No. Remarks
Voltage Current Power
1 4x5A Constant voltage
12-36VDC 4x(60-180)W
2 4x350mA Constant current
12-48VDC 4x(4.2-16.8)W
3 4x700mA 4x(8.4-33.6)W
12-48VDC Constant current
• In compliance with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2.
• Built-in DALI-2 interface, DALI DT6 device
• Match all DALI systems in the market
• Manual /automatically DALI address setting
• DALI address digital indicate
• Four channels, can set addresses from one to four.
• To work with power repeater to expand output power unlimitedly.
• Waterproof grade: IP20
Safety & Warnings
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
Operation
Set DALI Address Manually Via Buttons
1.1. Press and hold down any of the two buttons until numeric digital display flashes, then release the button.
1.2. Click any of the two buttons once to select a digit, click again to change the digit until the desired DALI
address appears. Click first button to set "tens" position and second button to set "units" position. The address
can be set from 00~63.
1.3. Then press and hold down any of the 2 buttons until the numeric digital display stops flashing to confirm the
setting.
Note: DALI address can be manually assigned from 00-63-FF, by factory defaults, no DALI address is
assigned for the dimmer, and the display shows
dimmer to factory defaults.
V-
V-
12-36V DC power input
V+
V+
Common Anode output(+)
1- CH 1:R output(-)
CH 2:G output(-)
2-
CH 3:B output(-)
3-
CH 4:W output(-)
4-
DALI Dimming Ambient
Size(LxWxH)
Consumption Range Temperature
166x53.4x23mm -20℃ ~ +50℃
2mA 0.1%-100%
166x53.4x23mm -20℃ ~ +50℃
2mA 0.1%-100%
2mA 0.1%-100% -20℃ ~ +50℃
166x53.4x23mm
. Setting DALI address as will reset the
2. Set DALI Address Quantity
70040013
2.1. Press and hold down both of the two buttons until numeric digital display flashes, then
release the button.
2.2. Click first button to select "1A", "2A", "3A" or "4A" which means 1 address, 2 addresses, 3
addresses or 4 addresses.
2.3. Then press and hold down any of the 2 buttons until the numeric digital display stops
flashing to confirm the setting.
For example, when we set address to 22:
1 2
When select 1A, all four channels will be the same address 22.
When select 2A, channel 1 & 3 will be the same address 22, channel 2 & 4 will be the same
address 23.
When select 3A, channel 1, 2, 3 will be address 22, 23, 24 respectively, and channel 4 address is
also 24.
When select 4A, channel 1, 2, 3, 4 will be address 22, 23, 24, 25 respectively.
3. DALI Address Assigned by DALI Masters
DALI address can also be assigned by DALI Master controller automatically, please refer to user manuals of
compatible DALI Masters for specific operations.
Note: The digital display will show
4. Push Dimmer Mode
While connected with a AC push switch, the digital display will show "PD" which means Push Dimmer Mode,
operations under Push Dimmer Mode are as follows:
4.1. Click the button to switch ON/OFF
4.2. Press and hold down the button to increase or decrease light intensity to desired level and release it, then
repeat the operation to adjust light intensity to opposite direction. The dimming range is from 1% to 100%.
4.2. Memory function after power off or power failure enables the device to memorize the status before power
off while power on again.
Conformity & Standards
• Radio Frequency Interference according to EN 55015:2013
• Immunity standard according to EN 61547:2009
• TÜV Rheinland marked, CE marked

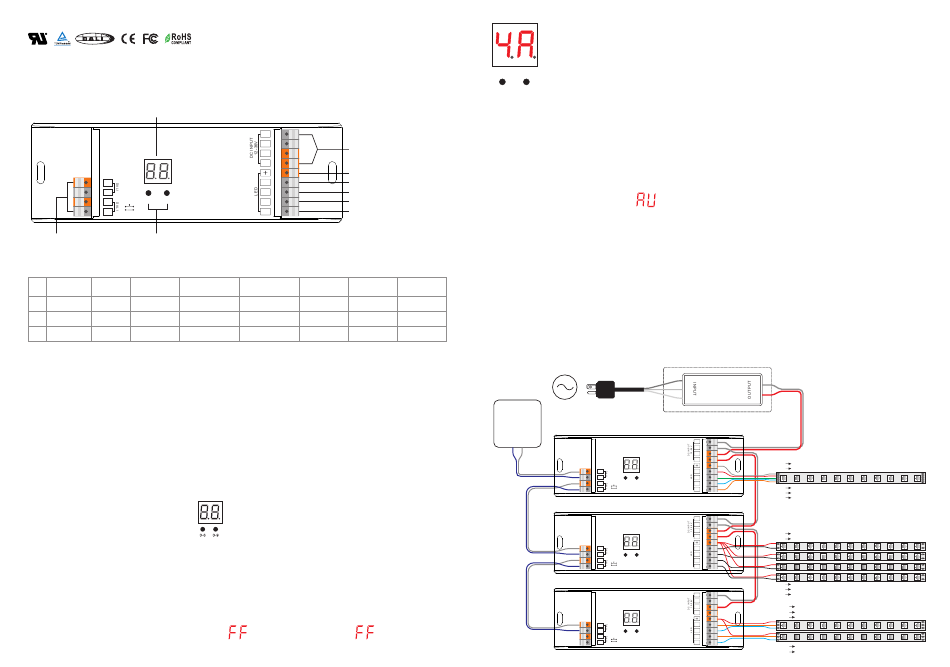

Wiring Diagram
1) With DALI Bus
AC Power
50/60Hz
DALI Master
DA
DA
DA
DA
DA
DA
DA
DA
DA
DA
DA
DA
When the DALI master is assigning addresses.
