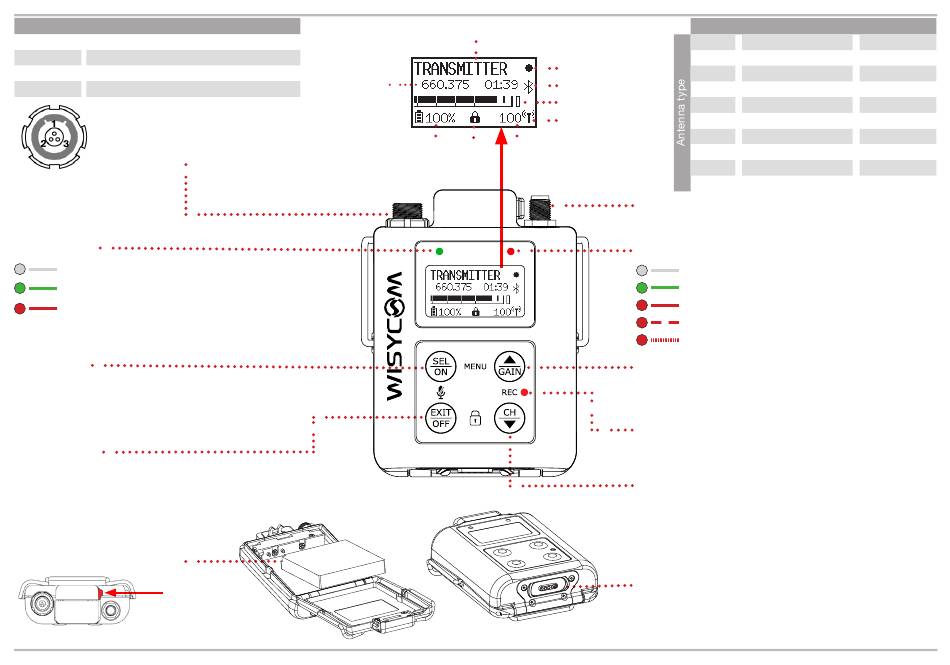

WisyCom MTP61 Quick User Manual page 2

Mic Mode Pinout
2 W 1 = GND / 3 = AF
2 W+B 1 = GND / 3 = AF+5,5 V
3 W 1 = GND / 2 = 5,5 V / 3 = AF
AUX 1 = GND / 3 = AF (High impedance)
Mic Input
(LEMO type)
Load a mic PRESET to suit your
wiring or enter the Audio menu.
Audio LED
OFF: Audio is muted
GREEN: Audio is enabled
RED: Audio is peaking
SEL / ON
Push to switch ON the device. Push together with
GAIN/UP to enter the main MENU. When in menu
single push to save and confirm selections.
EXIT / OFF
Long press to switch the unit OFF.
Short press to step back in menu
Press together with SEL/ON to mute/
unmute the audio.
Battery compartment
Press to
open
Transmitter name
Frequency
Group
Channel
Battery
Panel
status locked
Recording ON
Bluetooth
Audio bar
Tx PWR status
RF level
in mW
Antenna Connector
RF/Power LED
OFF: MTP61 is OFF
GREEN: Transmission is ON
RED: Transmission is OFF
RED SLOW BLINK: battery < 25%
RED FAST BLINK: battery < 12%
Gain Shortcut/Up
Push to quickly access gain setup frequency
menu and/or scroll up while in the menu.
Recording Status Led
Solid red when recording has started.
Ch Shortcut/Down
Short press to access channel/group/
frequency menu and/or scroll down while in
the menu. Long press it with EXIT/OFF to
lock the front panel.
Magnetic Connector 5 pin
to recharge battery, connect to Wisycom
Manager, LTC Timecode sync, Download
recorded files (USB High Speed).
Label Code Band MHz
507 AWSS-507 470-547
590 AWSS-590 547-663
552 AWSS-552 510-595
646 AWSS-646 595-698
710 AWSS-710 663-760
796 AWSS-796 760-832
808 AWSS-808 806-810
950 AWSS-950 940-960
1K1 AWSS-1K1 960-1160
AWSS-1K2
1K2 1240-1260
(SSMA type).
