Interface Panel - RGBlink mini-mx Quick Start Manual

9 Buttons 1-8
5-Direction
10
Joystick
11 MENU
12 ON AIR
5.5-inch Touch
13
Screen

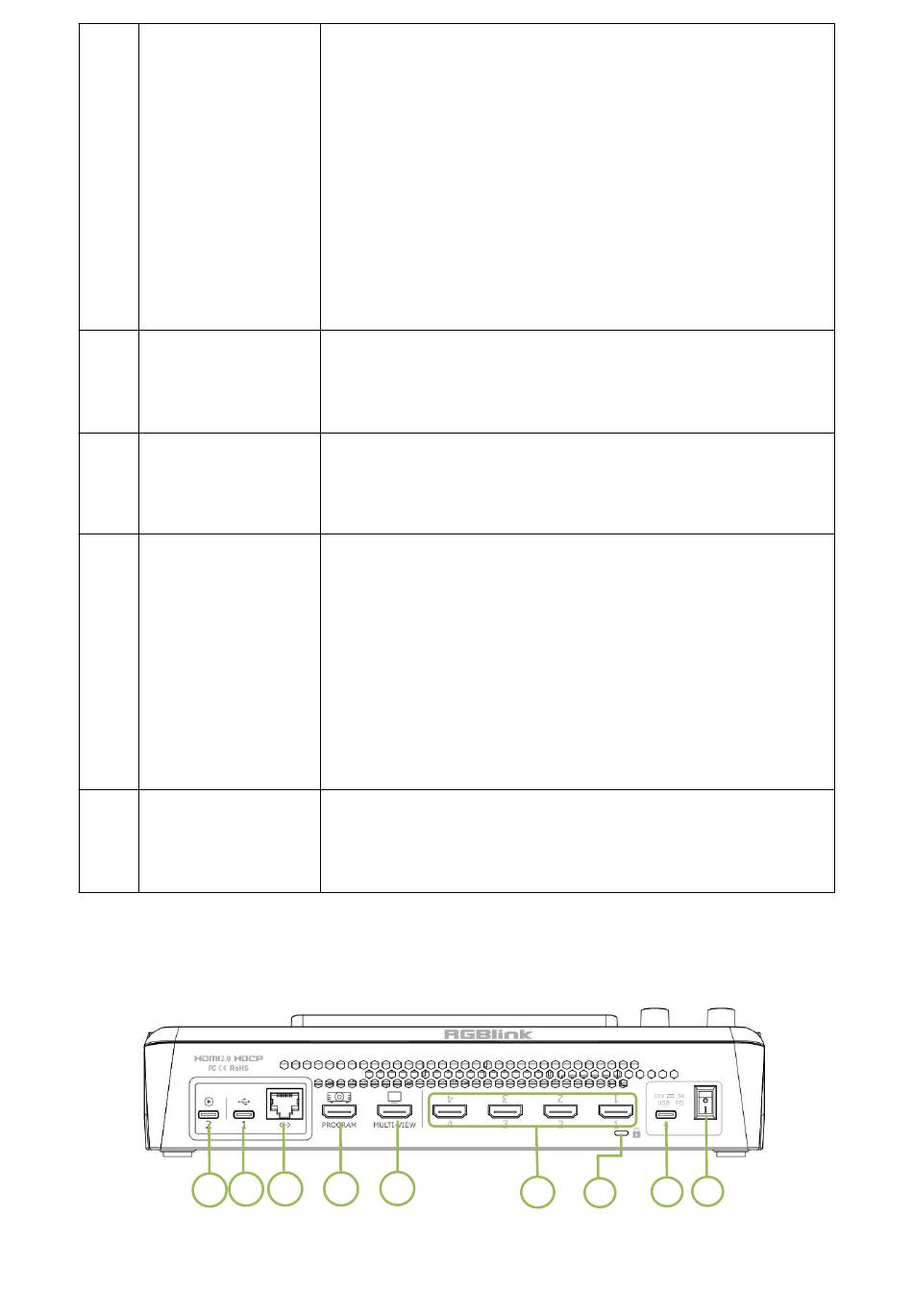

Interface Panel

1
mini-mx
● Button 1-8 indicate 8 selections in Main Menu
correspondingly with button light in white.
● Button 1-4 can also be used as HDMI 1-4 signal
switch button. Light in red indicates the signal is in
PGM output state, Light in green indicates the signal
is in editing state.
●Set pan, tilt, zoom for PTZ camera.
●For adjustment of layer position.
● Press MENU button to enter preview interface/
main interface/preset interface.
●Button color adjustable.
●Click to start or end streaming.
●Streaming status can be checked on LCD screen
through indicator light: steady red shows ON AIR;
flashing red shows unstable network ON AIR; unlit
shows streaming is finished.
For menu
monitoring.
2
4
3
5
Quick Start
operation and multi-view
6
7
window
8 9
6
