Audio Setting; Video Output - RGBlink mini-mx Quick Start Manual

1. Click【CHROMA KEY】or Button【5】
to enter the setting menu.

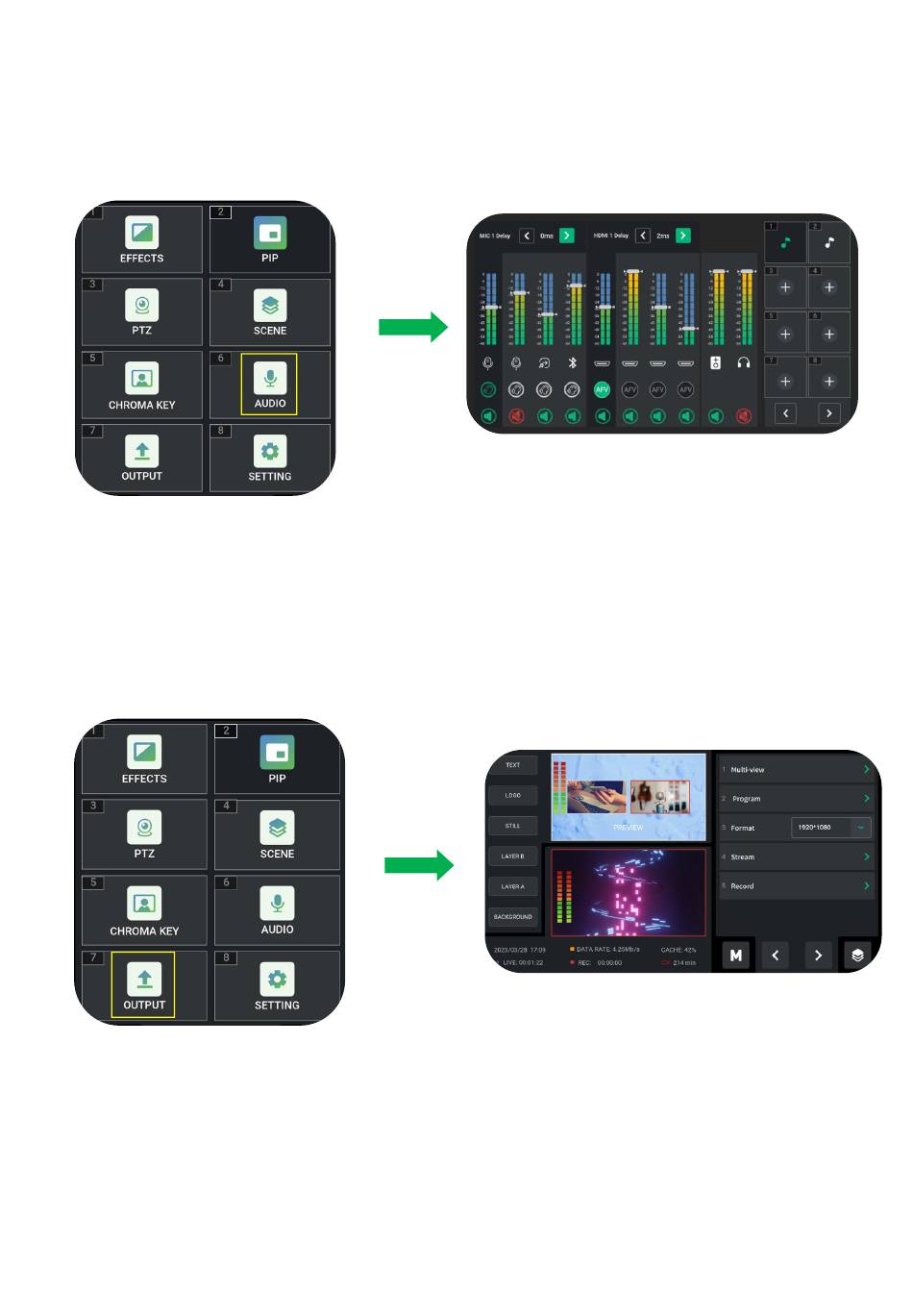

Audio Setting

1. Click 【AUDIO】 or Button 【6】 to enter
the setting interface.

Video Output

1.Click【VIDEO OUT】or Button【7】to
enter the setting menu.
mini-mx
2. User can choose to enable/disable the
function and select the background color
to be removed and make adjustments. The
size of layers can also be set via sliding the
bar.
2. mini-mx supports audio output mix of
multiple channels. You can turn on/off analog
audio output and the volume can be adjusted
by Channel Fader. 10 audio columns indicate
MIC1\MIC2\LINEIN\Bluetooth\HDMI1\HDMI
2\HDMI3\HDMI4\PGM\Monitor respectively.
If the sound and the video are not
synchronous, increase or reduce the Delay
value.
2.Choose different layout in Multi-view and
Program. Click Format to set output resolution.
Quick Start 15
