Connecting to a Power Source
To connect a device to a power source:
1. First verify that the external AC power supply can provide 100 to 240
VAC, 50-60 Hz, 1 A minimum.
2. Plug the power cable into a grounded, 3-pin, AC power source.
Note: For international use, you may need to change the AC line
3. Insert the plug on the other end of the power directly into the socket
located on the front of the switch.
4. Check the front-panel LEDs as the switch is powered on to be sure
the Power LED is lit. If not, check that the power cable is correctly
plugged in. The switch will automatically select the setting that
matches the connected input voltage. Therefore, no additional
adjustments are necessary when connecting it to any input voltage
within the range marked on the front panel.
Notes: 1. The switch performs a self-diagnostic test upon power-on.
2. The unit supports a "hot remove" feature which permits you to
connect or disconnect network cables without powering off the unit
cord. You must use a line cord set that has been approved for
the socket type in your country.

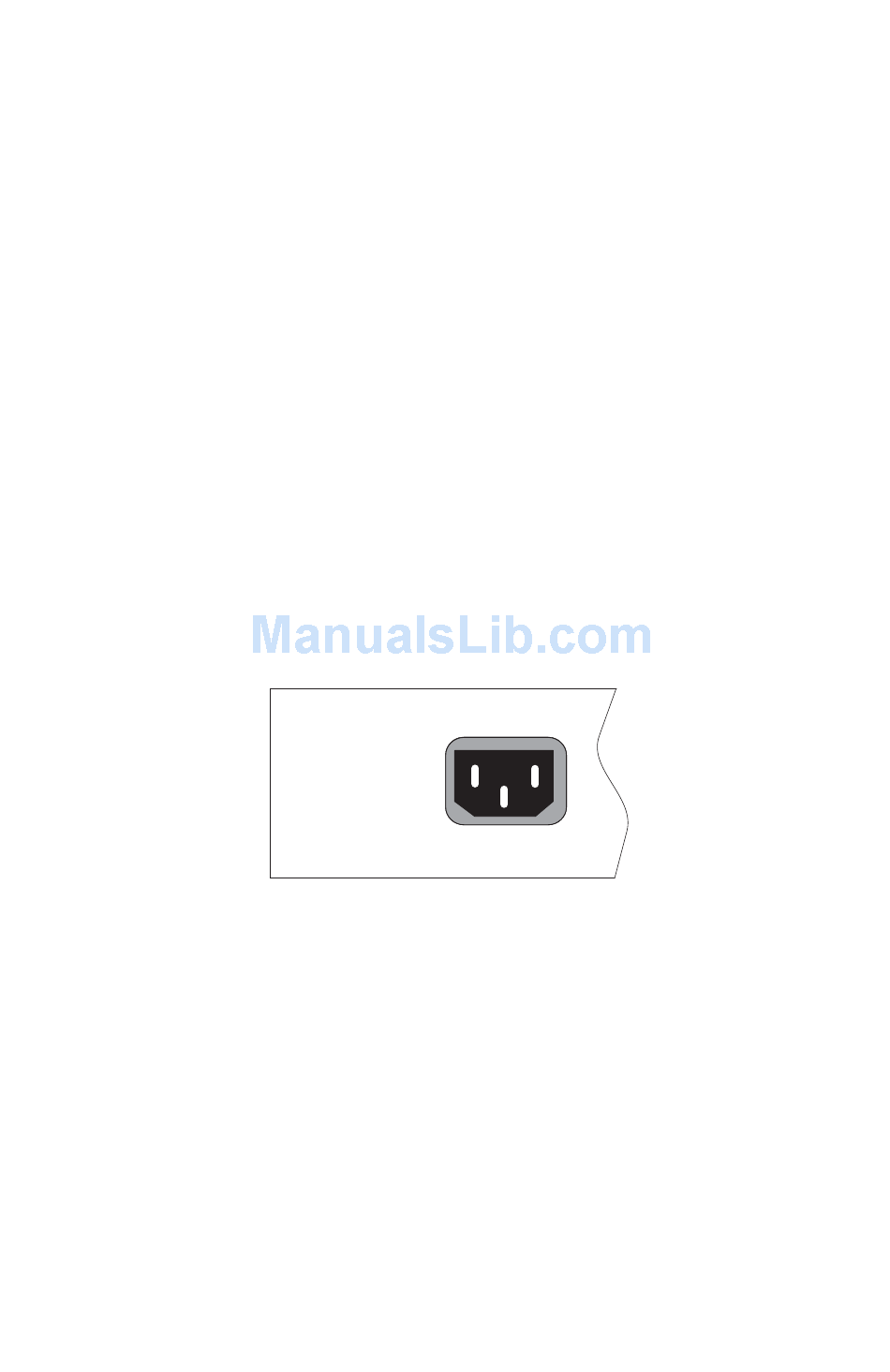

Figure 3-8 Power Socket
C
ONNECTING TO A
-
-
100 240V 50 60Hz 1A
P
S
OWER
OURCE
3-9
