Connecting to PCs, Servers, Hubs and Switches

Depending on the wiring configuration used at the customer's site,
separate wall jacks may be used for telephone and VDSL services.
Otherwise, you will need to connect the telephone and computer directly
to a CPE similar to that shown below. For detailed information on
installing and operating the CPE, refer to the relevant user guide.
VDSL Line Wall Jack
Standard Telephone Cable
Telephone, Fax, or Modem
1. Attach one end of a twisted-pair cable segment to the CPE's RJ-45
connector.
2. Attach the other end of the cable segment to to your PC or other
network equipment. Make sure the twisted pair cable does not exceed
100 meters (328 ft) in length.
3. As each connection is made, the corresponding Link LED (on the
CPE) should light up to indicate that the connection is valid.
RJ-11 Ports

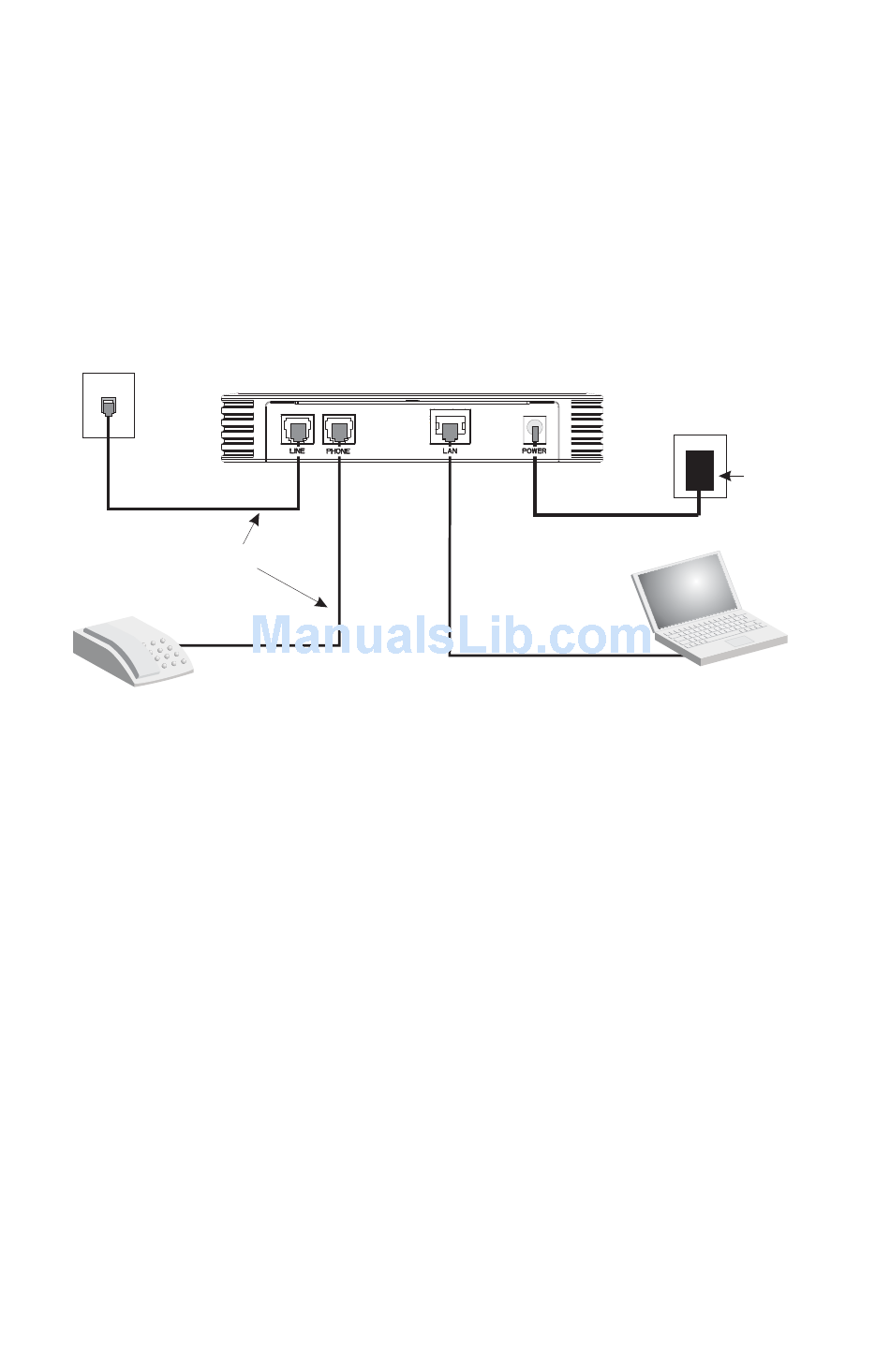

Figure 4-4 Customer Premises Connections

C
ONNECTING
RJ-45 Port
Computer
T -P D
WISTED AIR
AC Power Outlet
AC Power Adapter
Category 5 UTP cable to
Ethernet port on computer
EVICES
4-5
