Preparing the Site for VDSL/POTS Connections
In multi-tenant buildings, phone lines from the service provider enter the
site and are terminated at a location referred to as the MPOE (Minimum
Point of Entry). The MPOE is the "demarcation" point where the service
provider's cables end and that of the building's owner/customer begins.
An MPOE typically consists of two sets of punch-down blocks; one from
the service provider, and the other from the customer. The customer's
punch-down blocks are connected to PBX or MDF equipment in the
building. A PBX may have either analog or digital cards that provide the
phone lines to individual end users. The PBX lines are usually connected
to the end users through another set of punch-down blocks or patch
panels. The following figure displays the normal wiring before installing
the VDSL switch.
Existing Phone
Lines to Clients
Punch-Down Blocks
Connecting to Clients
NSTALLING THE
PBX

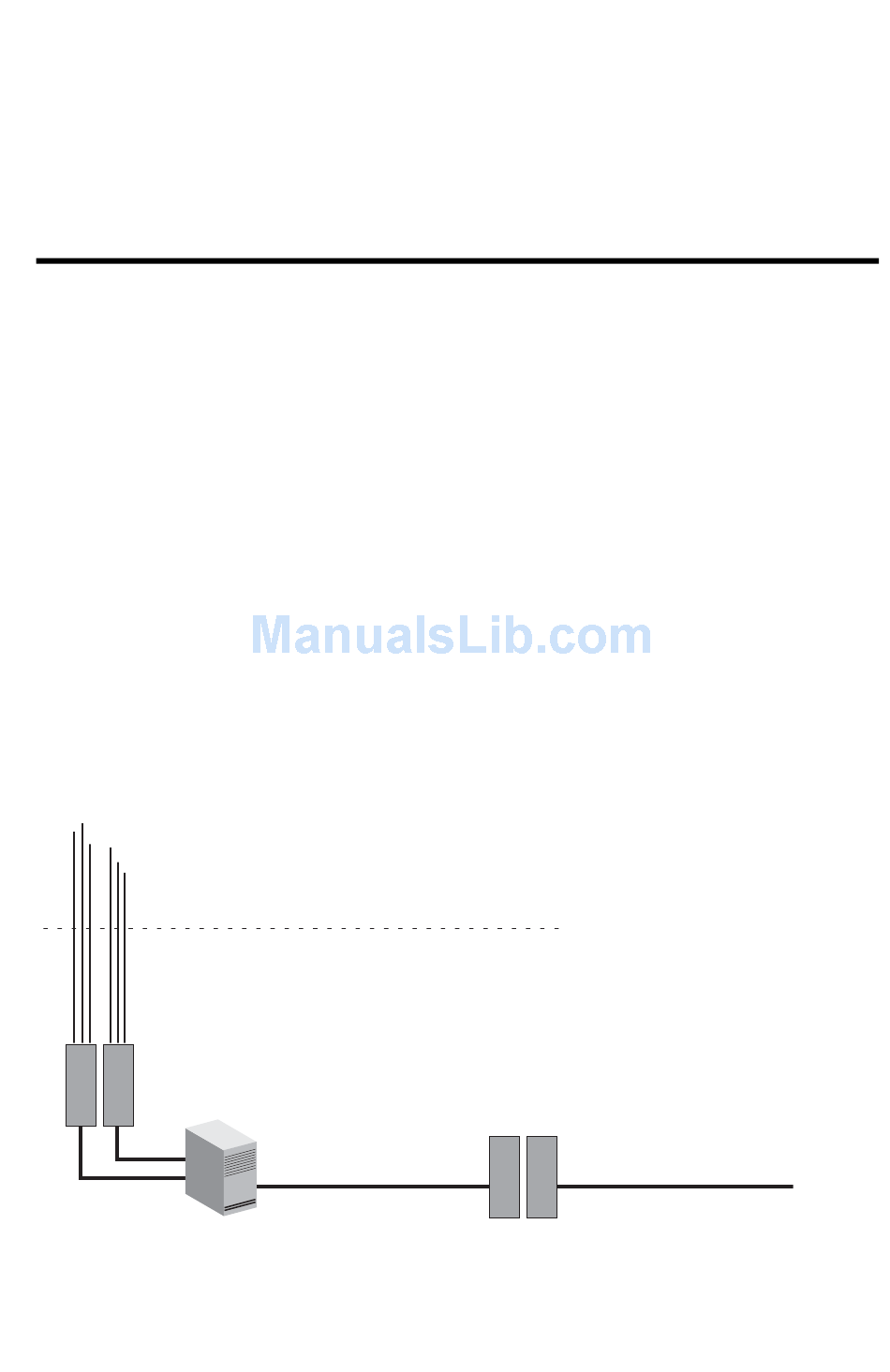

Figure 3-1 Wiring before VDSL Switch Installation
Upper Floors
Basement
MPOE
'
Customer s
Punch-Down
Blocks
C
HAPTER
S
WITCH
Telephone Line
from Central Office
'
Service Provider s
Punch-Down
Blocks
3
3-1
