Console Port Pin Assignments

The DB-9 serial port on the switch's front panel is used to connect to the
switch for out-of-band console configuration. The on-board command-
line configuration program can be accessed from a terminal or a PC
running a terminal emulation program. The pin assignments used to
connect to the serial port are provided in the following tables.

DB-9 Port Pin Assignments

EIA CCITT
Circuit Signal
BB 104
BA 103
AB 102
No other pins are used.

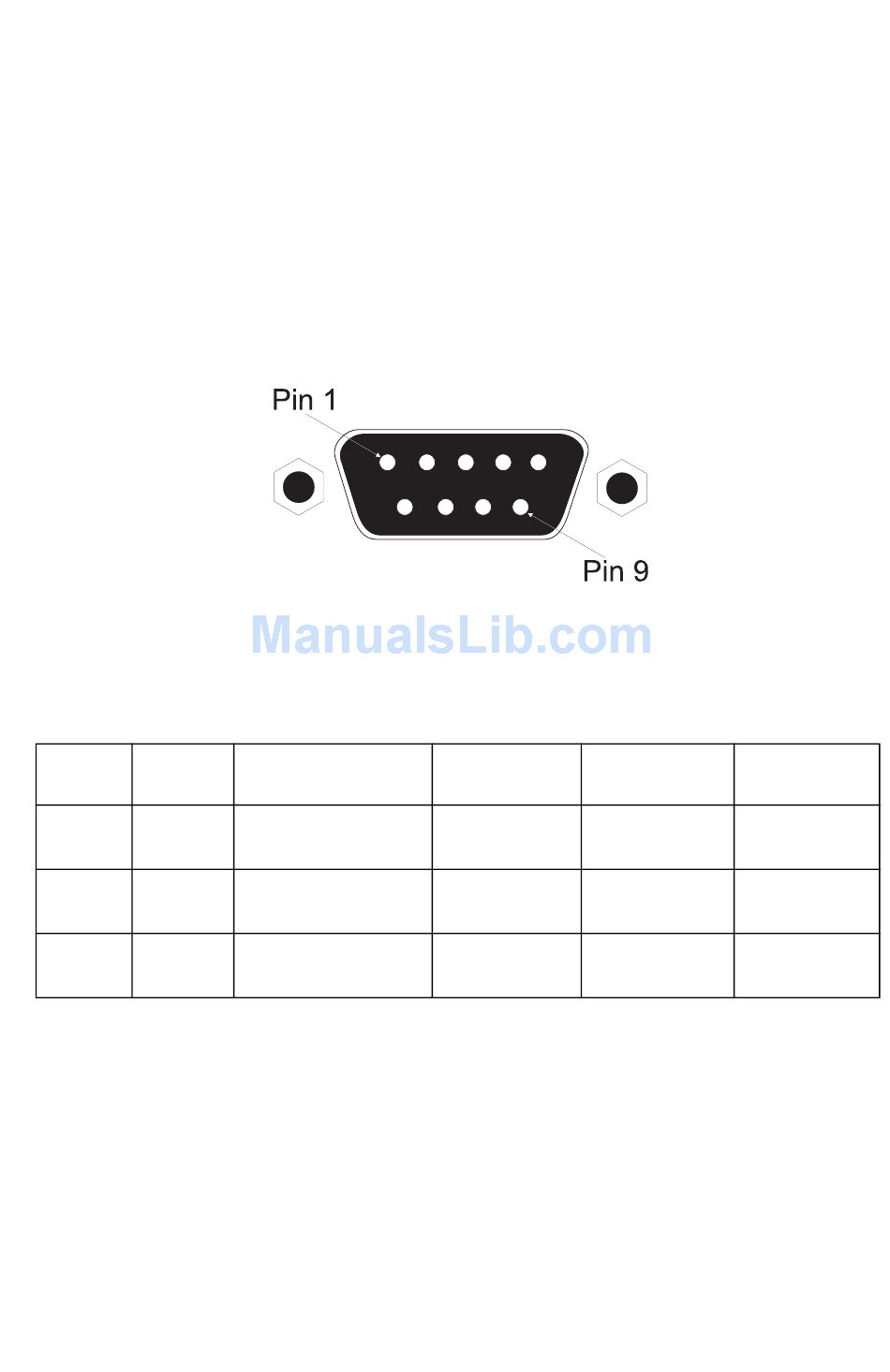

Figure B-5 DB-9 Console Port Pin Numbers

Table B-5 DB-9 Port Pin Assignments

Description
RxD
(Received Data)
TxD
(Transmitted Data)
SG
(Signal Ground)
C P
ONSOLE
Switch's DB9 PC DB9
DTE Pin # DTE Pin #
2 2
3 3
5 5
P A
ORT IN SSIGNMENTS
PC DB25
DTE Pin #
3
2
7
B-9
