Installing an Optional SFP Transceiver

Line

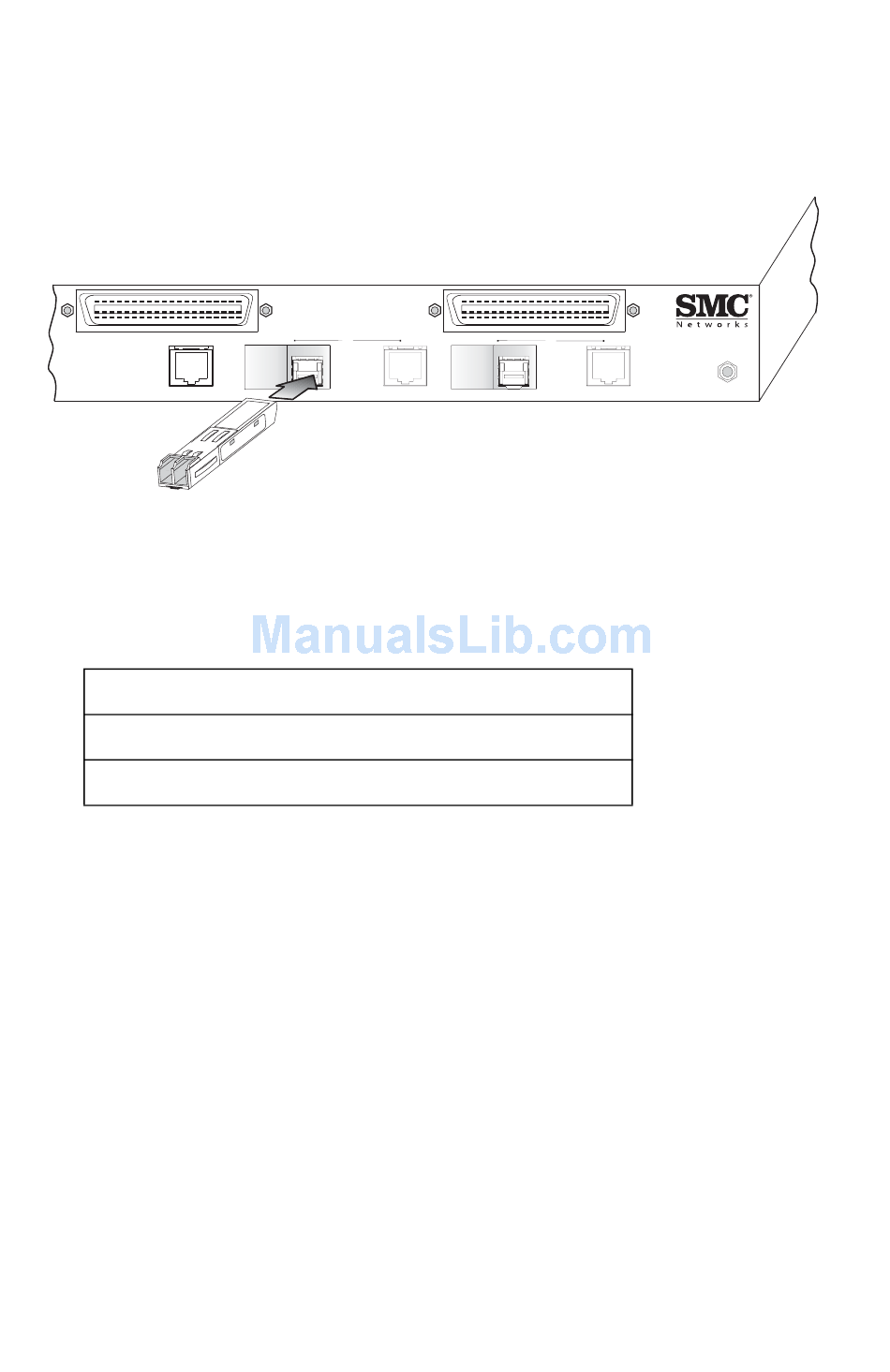

Figure 3-7 Inserting an SFP Transceiver into a Slot

The switch support the following optional transceivers:

Table 3-1 Optional SFP Transceivers

1000BASE-SX (SMCBGSLCX1)
1000BASE-LX (SMCBGLLCX1)
1000BASE-ZX (SMCBGZLCX1)
To install an SFP transceiver, do the following:
1. Consider network and cabling requirements to select an appropriate
SFP transceiver type.
2. Insert the transceiver with the optical connector facing outward and
the slot connector facing down. Note that SFP transceivers are keyed
so they can only be installed in the correct orientation.
3. Slide the SFP transceiver into the slot until it clicks into place.
Note: SFP transceivers are hot-swappable. The switch does not need to
be powered off before installing or removing a transceiver.
However, always first disconnect the network cable before
removing a transceiver.
