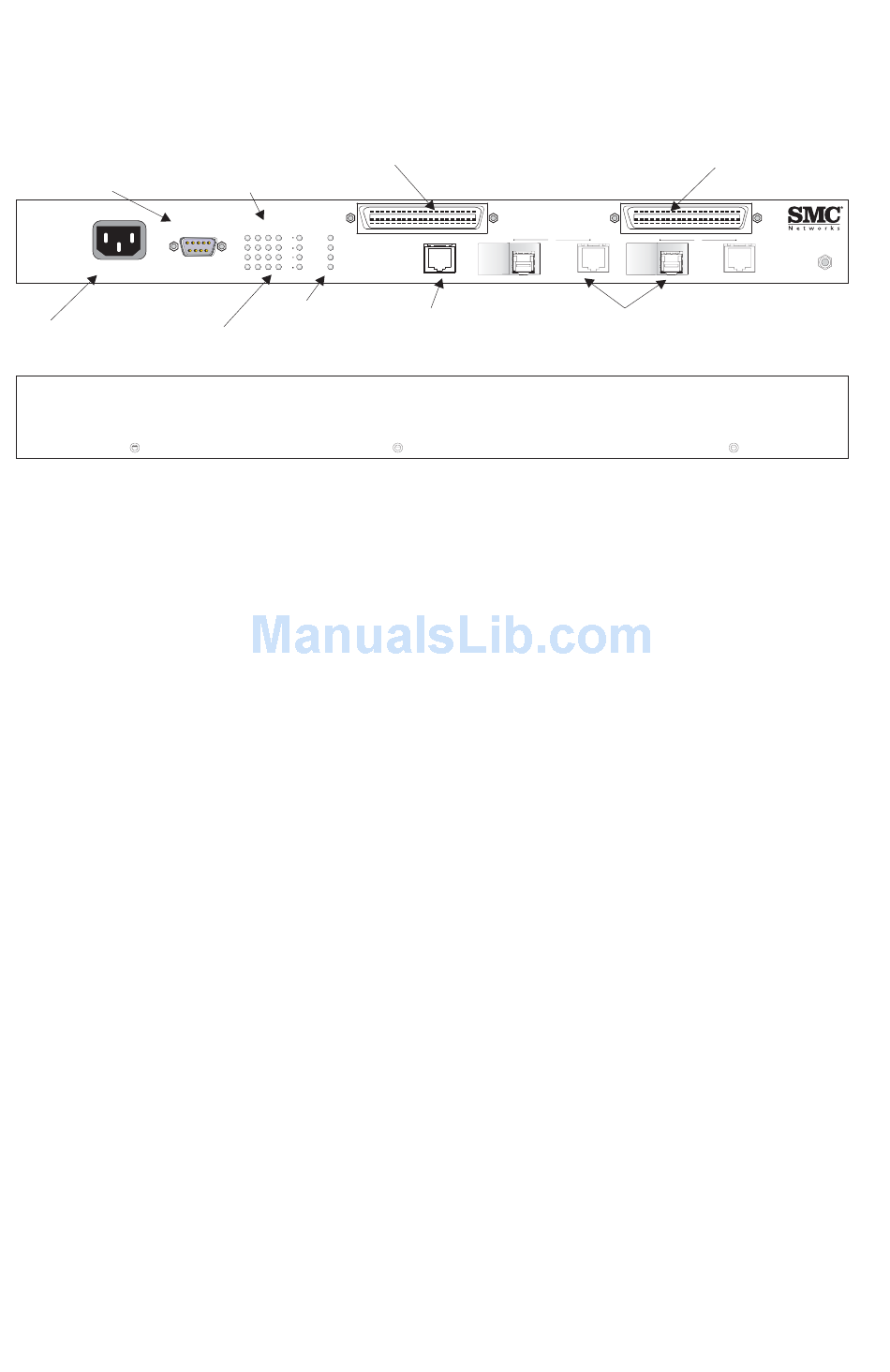

The following figure shows the components of the VDSL switch.
Ethernet Port
Console Port
Status Indicators
-
-
100 240V 50 60Hz 1A
VDSL Port
Status Indicators
Power Socket
RJ-21 Ports
The RJ-21 ports on the switch front panel support 16 twisted-pair
connections. The "Line" port connects to end-user CPEs through a
punch-down box. The "POTS" port connects to the local PBX or directly
to telephone lines from the CO.
1000BASE-T Ports
The switch contains two Gigabit RJ-45 ports shared with alternate Small
Form Factor Pluggable (SFP) transceiver slots. The 1000BASE-T RJ-45
ports operate at 10/100 Mbps, half/full duplex, or at 1000 Mbps, full
duplex. Because all of the RJ-45 ports support automatic MDI/MDI-X
operation, you can use straight-through cables for all network connections
to PCs or servers, or to other switches or hubs. (See "1000BASE-T Pin
Assignments" on page B-3.)
Each of these ports support auto-negotiation, so the optimum
transmission mode (half or full duplex), and data rate (10, 100, or 1000
Mbps) can be selected automatically. If a device connected to one of these
ports does not support auto-negotiation, the communication mode of that
port can be configured manually.
