Connecting To The Console Port; Wiring Map For Serial Cable; Table 3-2 Wiring Map For Serial Cable; Figure 3-9 Serial Port (Rj-45) Pin-Out - SMC Networks TigerAccess SMC7816M Installation Manual

I
NSTALLING THE
and without disrupting the operation of the devices attached to the
unit.

Connecting to the Console Port

The RJ-45 serial port on the switch's front panel is used to connect to the
switch for out-of-band console configuration. The on-board configuration
program can be accessed from a terminal or a PC running a terminal
emulation program. The pin assignments used to connect to the serial port
are provided in the following table.

Wiring Map for Serial Cable

Switch's 8-Pin
Serial Port
6 RXD (receive data)
3 TXD (transmit data)
5 SGND (signal ground) ------------------------------
No other pins are used.
3-10
S
WITCH

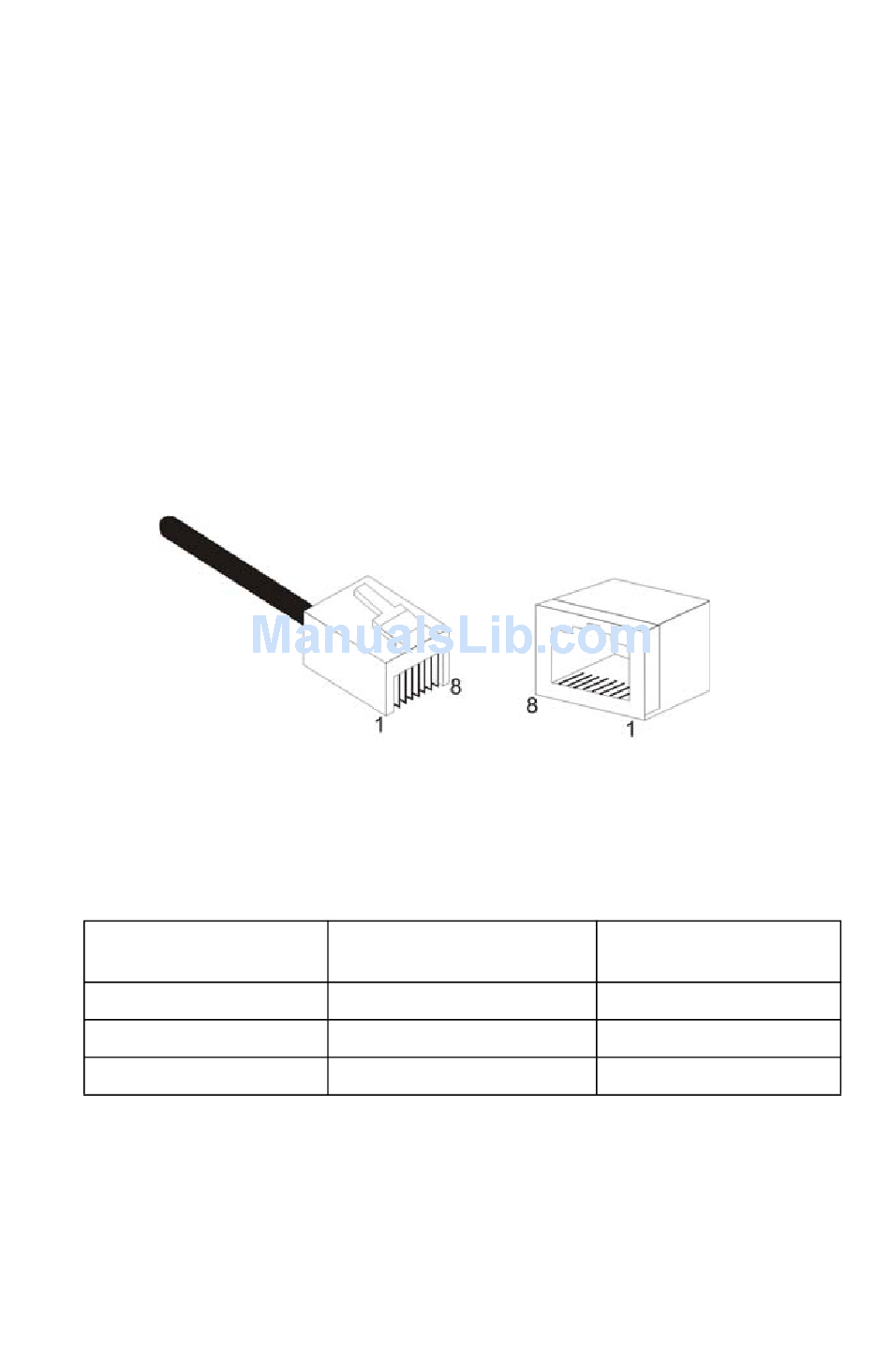

Figure 3-9 Serial Port (RJ-45) Pin-Out

Table 3-2 Wiring Map for Serial Cable

<----------------------------
----------------------------->
Null Modem PC's 9-Pin
DTE Port
3 TXD (transmit data)
2 RXD (receive data)
5 SGND (signal ground)
