CyberX
Rugged RS-232 USB
to Serial Converter
Quick Installation Guide
Introduction

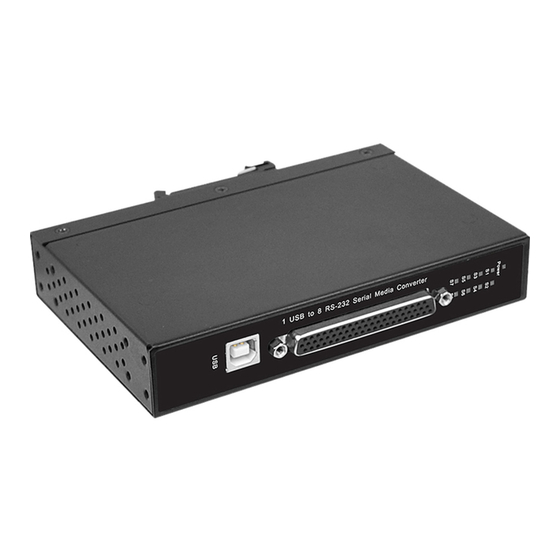

CyberX Industrial Rugged RS-232 USB to Serial Converter
provides an easy connectivity for traditional serial device
through High-Speed USB 2.0 interface.
Features and Benefits
•
Compliant with USB 2.0 specification and backward
compatible with USB 1.1
•
Supports RS-232 with RTS/CTS and DSR/DTR
handshake signals
•
Supports serial port data transfer rate up to
921.6Kb/s
•
USB bus powered, low power consumption
•
Operating temperature range: -40 C to 70 degrees C
•
Built-in 15KV ESD protection
•
DIN-Rail and panel mounting enabled
System Requirements
•
Windows
(32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2008
R2/ Windows 2000 (32-bit)
04-0806B
7 (32-/64-bit) / Vista (32-/64-bit) / XP
®
Industrial
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIIG CyberX ID-SC0H11-S1
Summary of Contents for SIIG CyberX ID-SC0H11-S1
- Page 1 CyberX Industrial Rugged RS-232 USB to Serial Converter Quick Installation Guide Introduction CyberX Industrial Rugged RS-232 USB to Serial Converter provides an easy connectivity for traditional serial device through High-Speed USB 2.0 interface. Features and Benefits • Compliant with USB 2.0 specification and backward compatible with USB 1.1 •...
- Page 2 Package Contents • CyberX Industrial Rugged RS-232 USB to Serial Converter • USB cable (A to B) • Power adapter • Wall-mounting kit • Round screws (M3x3) x8 • 2-Pin terminal block • DB62-4xDB9 Console Cable (for ID-SC0G11-S1 only) • DB62-8xDB9 Console Cable (for ID-SC0H11-S1 only) •...
- Page 3 Frame Ground Power-2 12-48VDC Terminal Block Power-1 Input Figure 2 Power Connection Guide LED Indicator Po w e r LED Gre e n lig h t : p o w e r o n Se ria l Po rt Gre e n lig h t (x4 / x8 ): d a t a a ct ivit y LED is u n d e r t ra n sm issio n Pin Assignment...
- Page 4 Hardware Installation Wall Mount Installation DIN-Rail Installation Driver Installation Windows 7(32-/64-bit) / Server 2008 R2 Boot up to Windows and plug in the converter. Right click Computer, click Manage, click Device Manager, then click Other Device. Right click Quad RS232HS, and click Update Driver Software.
- Page 5 Windows Vista (32-/64-bit) Boot up to Windows and plug in the converter. At the Found New Hardware window, click Locate and install the driver software (recommended), then click Continue. Insert the driver CD. The driver will install automatically. Click Close, click Next, and click Close. Windows XP (32-/64-bit) / Server 2003 (32-/64-bit) Boot up to Windows and plug in the converter.
- Page 6 Windows 2000 Boot up to Windows and plug in the converter. At the Found New Hardware Wizard, click Next. Select Search for a suitable driver for my device(Recommended), and click Next. Insert the driver CD, check CD-ROM drives,uncheck the other boxes, then click Next. Click Next and Finish.
- Page 7 (5) years from the date of purchase of the product. SIIG will, at our discretion, repair or replace (with an identical product or product having similar features and functionality) the product if defective in materials or workmanship.
- Page 8 Fremont, CA 94538-3152, USA Phone: 510-657-8688 CyberX Industrial Rugged RS-232 USB to Serial Converter is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. All other names used in this publication are for identification only and may be trademarks of their respective owners.
