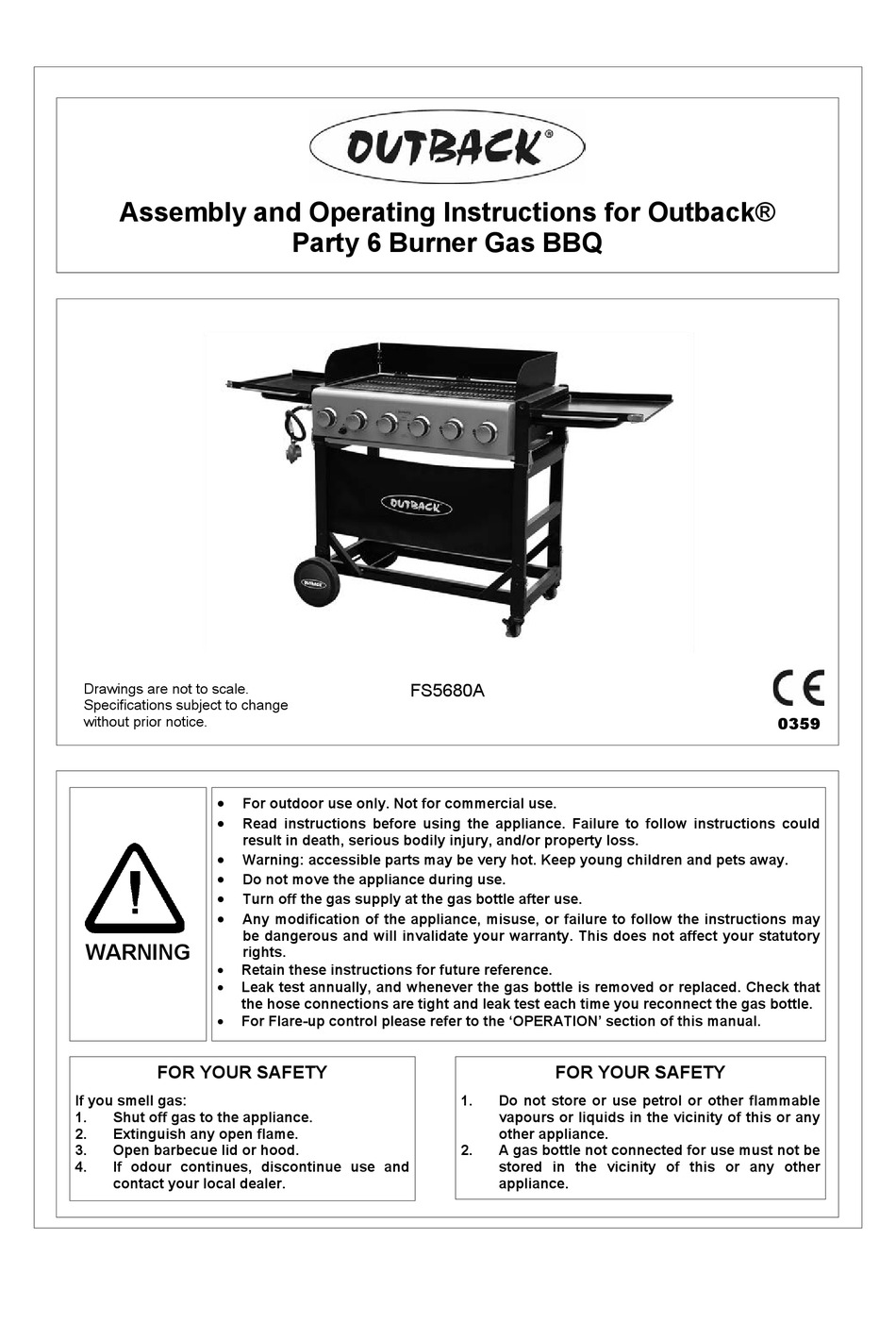

Assembly and Operating Instructions for Outback®
Drawings are not to scale.
Specifications subject to change
without prior notice.
For outdoor use only. Not for commercial use.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children and pets away.
Do not move the appliance during use.
Turn off the gas supply at the gas bottle after use.
Any modification of the appliance, misuse, or failure to follow the instructions may
be dangerous and will invalidate your warranty. This does not affect your statutory
WARNING
rights.
Retain these instructions for future reference.
Leak test annually, and whenever the gas bottle is removed or replaced. Check that
the hose connections are tight and leak test each time you reconnect the gas bottle.
For Flare-up control please refer to the 'OPERATION' section of this manual.
FOR YOUR SAFETY
If you smell gas:
1.
Shut off gas to the appliance.
2.
Extinguish any open flame.
3.
Open barbecue lid or hood.
4.
If odour continues, discontinue use and
contact your local dealer.

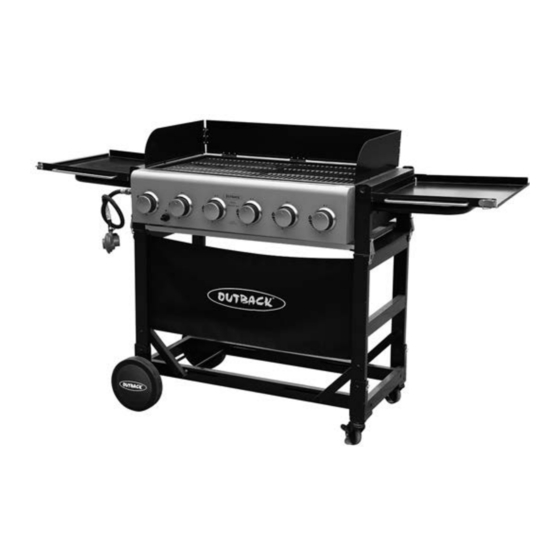

Party 6 Burner Gas BBQ
FS5680A
1.
2.
FOR YOUR SAFETY
Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
0359
Advertisement
Table of Contents
Related Manuals for Outback Party FS5680A
Summary of Contents for Outback Party FS5680A
- Page 1 Assembly and Operating Instructions for Outback® Party 6 Burner Gas BBQ FS5680A Drawings are not to scale. Specifications subject to change 0359 without prior notice. For outdoor use only. Not for commercial use. Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.
-
Page 2: Parts List
Parts List Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. Outback® Party 6 Burner CODE PART Gas BBQ Barbecue Body Burner ... -
Page 3: Parts Diagram
Parts Diagram Quantity varies according to model purchased. Specifications subject to change without prior notice. For more details on hardware, please see the corresponding ‘Hardware Reference Diagram’. - Page 4 Hardware Reference Diagram Specifications subject to change without prior notice. M6x12 Bolt M6 Wing Bolt...
- Page 5 Assembly IMPORTANT! TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set. Remove any internal component or packaging from the barbecue body. Whilst every care is taken in the manufacture of this product, care must be taken during assembly in ...
- Page 6 Carefully turn the trolley assembly over right side-up. Unfold the trolley assembly as shown. Attach one Side Shelf Support (C1) to the barbecue body using M6x12 Bolts (D1x6pcs) as shown. Repeat above process for the other side shelf support. Make sure the side shelf buffers face upward when attaching the side shelf support.
- Page 7 Carefully place the barbecue body assembly onto the trolley assembly, and fix with M6 Wing Bolts (D2x2pcs). Then lock the four latches as shown. Unlock the latch on the side shelves, and extend them to horizontal position. Unfold the Wind Shields (B9, B10, B11) and secure them in position by in placing the locking tabs on side wind shields into the slots in barbecue body.
- Page 8 Lay the Flame Tamers(B6) carefully into the body ensuring it lies level within the body. Lay the Cooking Grill (B7) into place. NOTE: Ensure that the flame tamer lies directly underneath the grills. Insert the Drip Tray (C4) by sliding it underneath the barbecue body.
- Page 9 (Left view of the barbecue trolley) Attach the Screen (C5) to the front left/right legs as shown. ASSEMBLY IS NOW COMPLETE.
-
Page 10: Leak Testing
Leak Test Diagram 1. Maximum diameter or breadth is 320mm. 2. Maximum height (regulator included) is 700mm. PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE ALL JOINTS AND CONNECTIONS MUST NOW BE LEAK TESTED BEFORE USING THE BARBECUE. -
Page 11: Gas, Regulator And Hose
Important Information Before you use your barbecue, perform a leak test. This is the only safe and sure way Please read these instructions carefully to detect any gas leaking from joints and before assembly and use of your barbecue. connections of the barbecue after assembly. -
Page 12: Installation
local gas dealer for the most suitable regulators with more than 50% of the cooking area as a and gas bottles. solid plate — this includes baking dishes. Full coverage will cause excessive build-up of heat and damage the barbecue. This is Installation not covered by warranty. -
Page 13: Care And Maintenance
to protect yourself from the flames. Ensure all knobs are in the off position. Open the gas control valve on the gas bottle If a fat fire occurs, please see the instructions or regulator. given below. Insert lit match through the right match- lighting hole on the right side of the barbecue body and place near rightmost Fat Fires... - Page 14 components sufficiently cool before that the neck of the burner fits over the valve cleaning. Do not leave the barbecue exposed to outlet. outside weather conditions or stored in damp, moist areas. It is quite normal for surface rust to be present on the burners.
- Page 15 Storage Ensure the barbecue is properly cooled before covering or storing. Store your barbecue in a cool dry place. Cover the burners with aluminium foil in order to prevent insects or other debris from collecting in burner holes. If the barbecue is to be stored indoors, the gas bottle must be disconnected and left outside.
-
Page 16: Technical Specifications
Technical Specifications NOTES: Heat Injector Burners Approval Input Size Consumption Outback® Party 6 0359 17.28 Butane: 1258g/hr 0.84mm Burner Gas 359BR665 1235g/hr Propane: Category: I 3+ (28-30/37) Gas / Pressure: G30 Butane at 28-30mbar and G31 Propane at 37mbar Countries of Use: BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT,... -
Page 17: Troubleshooting
Troubleshooting Problem Possible Cause Solution Burner will not light using LP gas bottle is empty Replace with full bottle the ignition system Faulty regulator Have regulator checked or replaced Obstructions in burner Clean burner Obstructions in gas jets or gas hose Clean jets and gas hose Electrode or ignition button wire is loose Reconnect wire... - Page 18 OUTBACK® WARRANTY OUTBACK® barbecues are warranted for a period of one (1) year from the date of purchase to the original purchaser against defects in materials and workmanship, OUTBACK® will supply replacements for defective parts free of charge provided that: The product has not been used for trade, professional or hire purposes.
