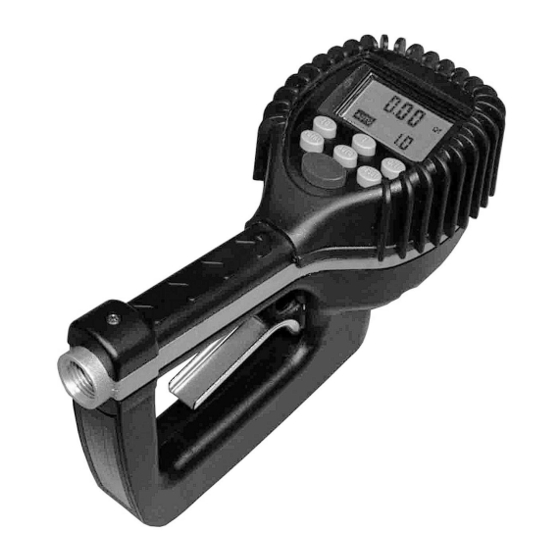

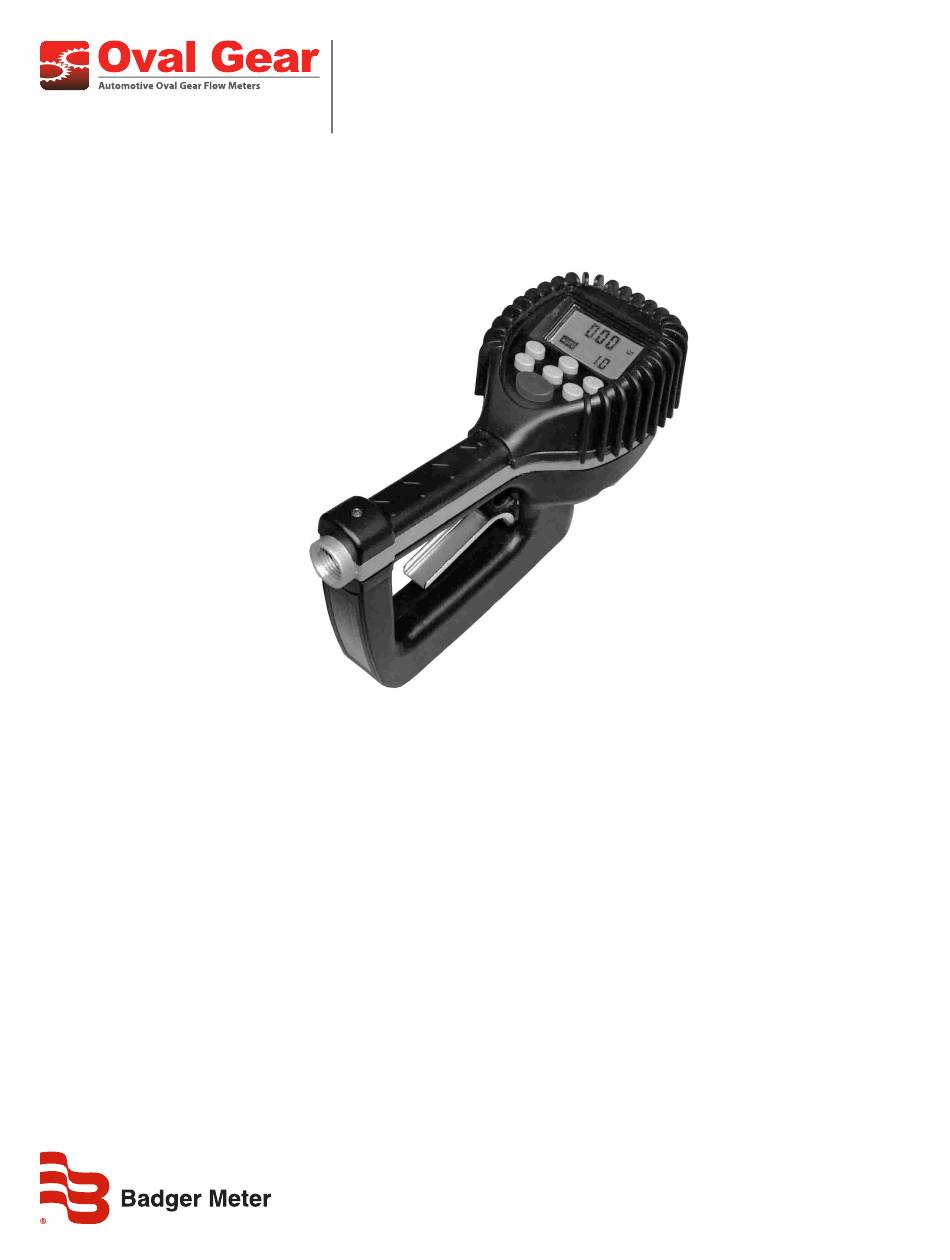

- Page 1 Electronic Preset Meter Model EPM2-STD, Standard Series User Manual AUT-UM-00933-EN-06 (April 2019)
-
Page 2: Table Of Contents
Electronic Preset Meter, Model EPM2-STD, Standard Series CONTENTS Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Meter Buttons . -
Page 3: Safety
Safety SAFETY IMPROPER GROUNDING, POOR VENTILATION, OPEN FLAMES OR SPARKS CAN CAUSE A HAZARDOUS CONDITION AND RESULT IN AN EXPLOSION OR FIRE AND CAUSE SERIOUS INJURY. • Be sure the fluid system is properly grounded . See your pump instruction manual for details . •... -
Page 4: Meter Buttons
Meter Buttons METER BUTTONS Used to enter the batch quantity to be dispensed . Used to display the accumulated total of fluid dispensed as well as the re-settable total during Auto Batch and Manual Mode . Used to enter and exit the Manual or Auto Batch mode . •... -
Page 5: Grounding
Meter Installation Grounding MOVEMENT OF FLUIDS THROUGH THE DISPENSING SYSTEM CREATES STATIC ELECTRICITY. STATIC ELECTRICITY CAN CAUSE VOLATILE FUMES RESULTING IN AN EXPLOSION AND FIRE. THE DISPENSING SYSTEM MUST BE GROUNDED. Grounding reduces the risk of static sparking . Ground all system components according to local, state and federal codes . Consult the pump user manual and other system components to ground the following: •... -
Page 6: Attach Nozzle To Meter
Meter Operation 3 . Tighten completely with an open ended, adjustable, wrench . See Figure 3. Figure 3: Use wrench to tighten Attach Nozzle to Meter 1 . On the opposite end, apply Loctite® 243 sealant, or equivalent, to the end of the nozzle . Thread the nozzle onto the meter . -
Page 7: Auto Batch Mode
Operating Mode Functions Auto Batch Mode To enter Auto Batch Mode from Manual Mode press AUTO . When in Auto Batch Mode, the Auto icon displays and the batch quantity shows in the lower right hand LCD display . 1 . Change the batch size by pressing 10, 1, and 0.1 . a . -
Page 8: Service
Service SERVICE Low Battery When the batteries need to be changed a progression of warnings appears on the meter screen . First, the Low Battery icon will appear on the display, this means that the batteries are getting low, and should be changed . When the icon begins to flash, the battery power is too low, and meter functions are disabled . -
Page 9: Change Unit Of Measure
Calculate Scale Factor Change Unit of Measure The meter comes with an option to choose four different units of measure . Scale Factor Digits 1 . The current unit of measure will flash when Programming Mode is entered . Unit of Measure 2 . -
Page 10: Absolute Scale Factor
Dimensions CHANGING THE SCALE FACTOR WILL CHANGE THE ACCURACY OF THE METER, POTENTIALLY CAUSING IT TO OVERFILL OR UNDER FILL. THIS HAS THE POTENTIAL TO CAUSE A MECHANICAL BREAKDOWN. To view the current scale factor, press and hold TOTAL and AUTO simultaneously . Absolute Scale Factor For absolute scale factor, preform this test: 1 . -
Page 11: Specifications
Specifications SPECIFICATIONS Maximum flow * 10 gpm (38 lpm) Minimum flow * 0 .25 gpm (1 lpm) Operating pressure (maximum) 1000 psi (67 bar) Operating pressure (minimum) 5 psi (0 .35 bar) Operating temperature (maximum) 120° F (50° C) Operating temperature (minimum) 20°... -
Page 12: Troubleshooting
