Summary of Contents for Xylem Bell & Gossett Technologic PPS

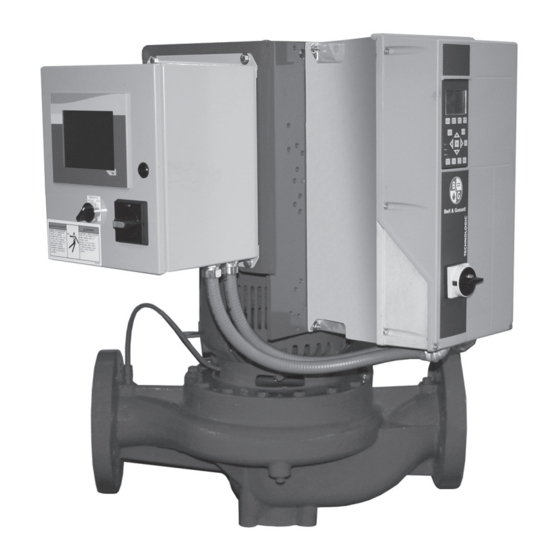

- Page 1 QUICK START GUIDE P2004681 REV 2 Technologic ® Parallel Pump Controller Quick Start Guide...
-
Page 2: Table Of Contents
3.1 IPC Programming for ITSC Drives ……………………………………………………………………………………10 3.2 PPS Pump Controller Programming …………………………………………………………………………………12 3.2.1 Set Scheme Information for BMS Communication …………………………………………………………12 INDUSTRIAL CONTROL PROTOCOLS ………………………………………………………………………………………15 CYBERSECURITY ………………………………………………………………………………………………………………15 XYLEM PRODUCT CYBERSECURITY ………………………………………………………………………………………15 SECURITY RECOMMENDATIOND FOR END-USER ………………………………………………………………………16 CUSTOMER SUPPORT ………………………………………………………………………………………………………20 PAGE 2... -
Page 3: Safety And Instructions
Only qualified personnel are allowed to includes any modification to the equipment install or operate this equipment. or use of parts not provided by Xylem. If • Qualified personnel are defined as trained staff, who there is a question regarding the intended... - Page 4 Bell & Gossett Technologic® PPS Parallel Pump Controller WARNING: EN/EC61800–5–1 (Power Drive System Product DISCHARGE TIME. Disconnect and lock standard) requires special care if the leakage current out electrical power and wait for the exceeds 3.5 mA. Earth grounding must be reinforced minimum in one of the following ways: waiting time specified below.
- Page 5 Exceptional sites cleaned. CAUTION: Radiation Hazard • Disconnect and lock out power before you service Do NOT send the product to Xylem if it has the pump. been exposed to nuclear radiation, unless • Check the explosion risk before you weld or use Xylem has been informed and appropriate electric hand tools.
- Page 6 • Refer to chapter 4 Mechanical Installations in the P2001487 IOM (current version) on the Xylem website CAUTION for details of installations. Before using the Genie, set DI18 to Stop...
-
Page 7: Set Up And Wiring
Bell & Gossett Technologic® PPS Parallel Pump Controller 2. SET UP AND WIRING NOTE: This section shown for reference only. 2.1 IPC Wiring Refer to the Technologic IPC Quick Start Guide for Wiring Instructions for the motor connection and power supplied to the Drive. 91 (L1) (U) 96 3-phase... -
Page 8: Control Wiring
Bell & Gossett Technologic® PPS Parallel Pump Controller 2.2 Control Wiring Confirm that the PPS Pump Controller is connected to the IPC via wiring from the X20 CS 1030 on the PPS Pump Controller to the 68 and 69 terminals on the IPC (as shown right and below). -
Page 9: Pps Pump Controller Power And Control Wiring
Bell & Gossett Technologic® PPS Parallel Pump Controller The communication wiring starts The final IPC used in the parallel The first IPC that is wired to the in the X20 CS 1030 on the PPS pumping system has white and PPS Pump Controller has the white Pump Controller. -
Page 10: Ipc And Pps Pump Controller Programming
Bell & Gossett Technologic® PPS Parallel Pump Controller 3. IPC AND PPS PUMP CONTROLLER PROGRAMMING 3.1 IPC Programming for ITSC Drives When the IPC turns on, it will be in the Start Up Genie by default. Hit the Main Menu button to exit the Start Up Genie and manually go through the menus to set the following parameters. - Page 11 Bell & Gossett Technologic® PPS Parallel Pump Controller Menu 8-32 Set to (2) – 9600 Baud Menu 8-33 Set to (2) – No Parity, 1 Stop Bit Verify the following parameters are correct and change per below if needed. Menu 0-20 Menu 0-23 Set to (1610) – Set to (1652) – Feedback Pressure Menu 0-21...
-
Page 12: Pps Pump Controller Programming
Bell & Gossett Technologic® PPS Parallel Pump Controller 3.2 PPS Pump Controller Programming Once the IPC programming has been confirmed, power on the PPS controller. Follow the steps below to complete the set up. Log in as Technician: Select Service, then Log On/Off to get to login screen (shown left). - Page 13 Bell & Gossett Technologic® PPS Parallel Pump Controller 3.2.2 Application Setup Pump Setup: Select Service, then Pump Setup. Select Pump Selection tab, enter information relevant to pumps in the system. Note: This will set the curve data for the sensorless application and must be done before anything else in the Pump Setup. Select Pump Setup tab, enter number of pumps and standby pumps in system. Select Motor Setup tab, enter motor data.
- Page 14 Bell & Gossett Technologic® PPS Parallel Pump Controller Select Flow Based Control tab, enter application parameters. Duty Pressure – obtain from pump nameplate Pressure at no flow – 40% of duty pressure Curve Shape – 100% for quadratic curve Motor Efficiency – no change Duty Flow – maximum single-pump flow Set Point will be calculated based on duty pressure and flow, and the varying demand of the system.
-
Page 15: Industrial Control Protocols
Cybersecurity risk. Customer security precautions including physical security measures are an important layer of defense in such cases. Xylem's PPS Pump Controller is designed with the consideration that it would be deployed and operated in a physically secure location. -
Page 16: Security Recommendationd For End-User
ISA/IEC 62443-3-3: SR 7.3 the project. For Technologic PPS, use the resilience, including against ransomware. save option in User setup (Service -> File- system) which is saved and loaded with cold starts or after power fails. Implement specific inventory, logging Devices are hardened and Xylem pro- ATT&CK for ICS: M0947 and monitoring of hardware and report vides PSIRT to help customers investigate NIST SP 800-53 Rev5: SM-8 security-related incidents to Xylem at potential security incidents. This safeguard ISA/IEC 62443-3-3: SR 1.11, SR 2.8, SR 3.4... - Page 17 Bell & Gossett Technologic® PPS Parallel Pump Controller NOTES PAGE 17...
- Page 18 Bell & Gossett Technologic® PPS Parallel Pump Controller NOTES PAGE 18...
- Page 19 Bell & Gossett Technologic® PPS Parallel Pump Controller NOTES PAGE 19...
-
Page 20: Customer Support
Morton Grove, IL 60053 Phone: (847) 966-3700 • Fax: (847) 965-8379 www.xylem.com/bellgossett Xylem and Bell & Gossett are registered trademarks of Xylem Inc. or one of its subsidiaries. All other trademarks or registered trademarks are property of their respective owners.
