  • Page 1 User Manual DS-410 Palm-Sized Mini-PC with HDMI VGA COM Ports...
  • Page 2 No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. The information provided in this manual is intended to be accurate and reliable.
  • Page 3 Product Warranty (2 years) Advantech warrants the original purchaser that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products that have been repaired or altered by persons other than repair personnel authorized by Advantech, or products that have been subject to misuse, abuse, accident, or improper installation.
  • Page 4 Consult the dealer or an experienced radio/TV technician for assistance.  Technical Support and Assistance Visit the Advantech website at www.advantech.com/support to obtain the latest product information. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before calling: –...
  • Page 5 Pour éviter tout risque d'électrocution,cet équipement ne doit être branché qu'au réseau d'alimentation avec une terre de protection. Warning! Restricted access area: area accessible only to skilled persons and qualified persons with the proper authorization. DS-410 User Manual...
  • Page 6 Packing List Before system installation, check that the items listed below are included and in good condition. If any item does not accord with the list, contact your dealer immediately. 1 x DS-410 series player  1 x China RoHS Sheet ...
  • Page 7 DISCLAIMER: These instructions are provided according to IEC 704-1 standards. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Consignes de sécurité Lisez attentivement ces instructions de sécurité. Conservez ce manuel de l'utilisateur pour référence ultérieure. Débranchez cet appareil de toute prise secteur avant le nettoyage. Utilisez un chiffon humide.
  • Page 8 ZONE D'ACCÈS RESTRICTED: L'équipement ne doit être installé que dans une zone d'accès restreint. AVERTISSEMENT: Cet ensemble d'instructions est donné conformément à la norme CEI 704-1. Advantech décline toute responsabilité quant à l'exactitude des déclara- tions contenues dans ce document. DS-410 Series Part Number...
  • Page 9: Table Of Contents

    1.6.5 Shock During Vibration ..............4 1.6.6 EMC ....................4 Chapter Hardware Configuration......5 DS-410 Series I/O ..................6 Figure 2.1 DS 410 I/O..............6 2.1.1 LED ....................6 Figure 2.2 Power ................. 6 Figure 2.3 LED - HDD..............6 2.1.2 Power On/Off ................
  • Page 10 3.2.12 Advanced → Network Stack Configuration......... 29 Chipset....................30 3.3.1 Chipset → System Agent (SA) Configuration ......30 3.3.2 Chipset → PCH-IO Configuration ..........32 Security ....................37 3.4.1 Security → Secure Boot ............. 38 Boot......................40 Save & Exit ..................... 41 DS-410 User Manual...
  • Page 11: Chapter 1 General Information

    Chapter General Information This chapter details background information on the DS-410 series.
  • Page 12: Introduction

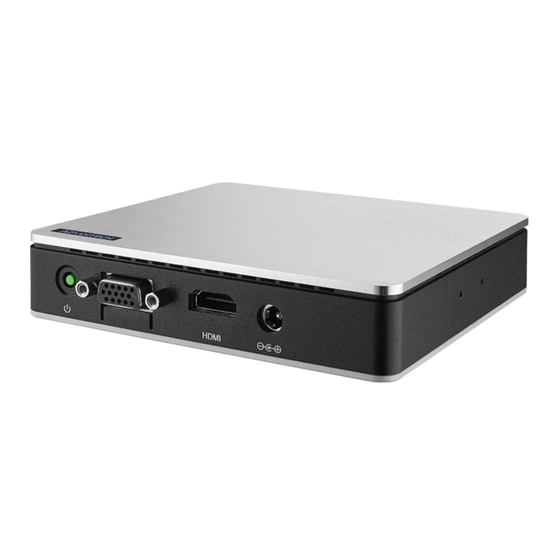

    The Advantech DS-410 is a miniPC powered by Intel processors that delivers 4K UHD output via HDMI, and HD output via VGA. DS-410 is designed to save space, and features diverse built-in I/O — including HDMI, VGA, USB 3.1, RS232 (RJ11), and dual-LAN (RJ-45).
  • Page 13: Mechanical Specifications

    1 x VGA @1920x1080 30Hz Expansion: 1 x M.2 2230 E Key (for Wi-Fi modules)  Mechanical Specifications 1.4.1 Dimensions 124 x 116 x 28 mm (L x W x H) Figure 1.1 Dimensions 1.4.2 Weight 0.41 kg    DS-410 User Manual...
  • Page 14: Power Requirements

    1.6.4 Vibration Loading During Operation 0.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.  1.6.5 Shock During Vibration 20 G, IEC 60068-2-27, half sine, 11 ms duration  1.6.6 CE, FCC Class B  DS-410 User Manual...
  • Page 15: Chapter 2 Hardware Configuration

    Chapter Hardware Configuration This chapter introduces external I/ O and the installation of DS-410 series hardware.
  • Page 16: Ds-410 Series I/O

    When the LED indicator displayed below turns green, it indicates a power on status. Figure 2.2 Power When LED indicator displayed below turns orange it indicates the SSD status Figure 2.3 LED - HDD 2.1.2 Power On/Off Press the button indicated below to power DS-410 on/off. Figure 2.4 Power Button DS-410 User Manual...
  • Page 17: Vga Connector

    2.1.4 USB 3.0 Connector DS-410 supports 2 x USB 3.0 interfaces. The USB interfaces complies with USB UHCI, Rev. 3.0 standards. Please refer to this pin assignment. USB 3.0 connectors contain legacy pins to interface with USB 2.0 devices, and a new set of pins for USB 3.0 connectivity.
  • Page 18: Lan Connector

    Activity status Flash Left side LED: Green/Orange LED Status Display 10Mbps Always off 100Mbps Green 1000Mbps Orange 2.1.6 Wi-Fi Antenna DS-410 provides 2 x Wi-Fi antenna connectors to connect with the SMA antenna. Figure 2.8 SMA Connector DS-410 User Manual...
  • Page 19: Rj11 Connector

    2.1.7 RJ11 Connector DS-410 provides 2 x RS232 (Tx/Rx) and 1 x stem Power On/Off Control pin. Order the cable PN (1700034193-01) to accommodate other kiosks or mini-PC setup demands. RJ11 Port Pin Assignments Signal COM0_TXD COM0_RXD POWERBUTTON# COM1_TXD COM1_RXD...
  • Page 20: Hdmi Connector

    TMDS Data 2 shield TMDS Data 2- TMDS Data 1+ TMDS Data 1 shield TMDS Data 1- TMDS Data 0+ TMDS Data 0 shield TTMDS Data 0- TMDS Clock+ TMDS Clock shield TMDS Clock- Reserved DDC/CEC Ground Hot Plug Detect DS-410 User Manual...
  • Page 21: Hardware Installation

    Hardware Installation 2.2.1 SSD Installation Remove the back cover by loosening 4 fixing screws. Insert the SSD module with screw into M.2 2242 M-key socket. Reverse the above-mentioned steps to assemble the system. DS-410 User Manual...
  • Page 22: Jumpers

    PIN HEADER 3x1P2.0mm 180D(M)DIP 2000-13WS Setting Function (1-2)* Normal operation (Default) (2-3) Clear CMOS 2.3.2 AT/ATX (PSON1) Location PSON1 Part number 1653003101 Foot Print HD_3x1P_79_D Description PIN HEADER 3x1P2.0mm 180D(M)DIP 2000-13WS Setting Function (1-2) (2-3)* ATX (Default) Figure 2.11 DS-410 User Manual...
  • Page 23: Chapter 3 Bios Settings

    Chapter BIOS Settings...
  • Page 24: Bios Introduction

    AMIBIOS has been integrated into motherboards for over two decades. With the AMIBIOS Setup program, users can modify BIOS settings and control various sys- tem features. This chapter describes the basic navigation of the DS-410 BIOS setup screens. AMI's BIOS ROM has a built-in Setup program that allows users to modify the basic system configuration.
  • Page 25: Entering The Setup

    BIOS supports your CPU. If there is no number assigned to the patch code, please contact an Advantech application engineer to obtain an up- to-date patch code file. This will ensure that your CPU‘s system status is valid.
  • Page 26: Advanced

    3.2.2 Advanced DS-410 User Manual...
  • Page 27: Advanced → Cpu Configuration

    → 3.2.3 Advanced CPU Configuration Intel (VMX) Virtualization  Enable or Disable Intel VMX Virtualization support. Active Processor Cores  Enable all or 1/2/3. MonitorMWait  Enable or disable MonitorMWait support. DS-410 User Manual...
  • Page 28: Advanced → Power & Performance

    → 3.2.4 Advanced Power & Performance Boot performance mode  Max non-Turbo performance. Max battery Turbo performance. DS-410 User Manual...
  • Page 29: Advanced → Pch-Fw Configuration

    Enable or disable Turbo mode. C states  Enable or disable C states. → 3.2.5 Advanced PCH-FW Configuration ME State  Enable or disable ME State. ME Unconfig on RTC Clear  Enable or disable ME Unconfig on RTC Clear. DS-410 User Manual...
  • Page 30 3.2.5.1 Advanced → PCH-FW Configuration → Firmware Update Configuration Me FW Image Re-Flash  Enable or disable Me FW Image Re-Flash. FW Update  Enable or disable FW Update. DS-410 User Manual...
  • Page 31 3.2.5.2 Advanced → PCH-FW Configuration → PTT Configuration TPM Device Selection  Select PTT or dTPM. DS-410 User Manual...
  • Page 32: Advanced → Acpi Settings

    3.2.6 Advanced → ACPI Settings Enable ACPI Auto Configuration  Enable or disable ACPI Auto Configuration. Enable Hibernation  Enable or disable Hibernation. ACPI Sleep State.  Select S3 (Suspend to RAM) or suspend Disabled. DS-410 User Manual...
  • Page 33: Advanced → It5121 Hw Monitor

    3.2.7 Advanced → IT5121 HW Monitor DS-410 User Manual...
  • Page 34: Advanced → It5121 Super Io Configuration

    75 °C/167 °F 80 °C/176 °F 85 °C/185 °F 90 °C/194 °F 95 °C/205 °F Watch Dog Timer (PreBoot)  Enable or disable Watch Dog Timer (PreBoot). Watch Dog Timer  Enable or disable Watch Dog Timer. DS-410 User Manual...
  • Page 35 3.2.8.1 Advanced → IT5121 Super IO Configuration → Serial Port 1 Configuration Serial Port  Enable or disable Serial Port. Change Settings  Auto or Change IRQ setting. DS-410 User Manual...
  • Page 36: Advanced → Trusted Computing

    3.2.9 Advanced → Trusted Computing Security Device Support  Enable or disable Security Device Support. SHA256 PCR Bank  Enable or disable SHA256 PCR Bank. Pending operation  None or TPM Clear. DS-410 User Manual...
  • Page 37: Advanced → S5 Rtc Wake Settings

    3.2.10 Advanced → S5 RTC Wake Settings Wake system from S5  Enable or disable Wake system from S5. DS-410 User Manual...
  • Page 38: Advanced → Usb Configuration

    Configure time for USB transfer time-out. Device reset time-out  Configure time for Device reset time-out. Device power-up delay  Auto or Manual set. UFD 2.0 Silicon-Power16GPMAP  Auto or Floppy or Forced FDD or Hard Disk or CD-ROM. DS-410 User Manual...
  • Page 39: Advanced → Network Stack Configuration

    3.2.12 Advanced → Network Stack Configuration Network Stack  Enable or disable Network Stack. DS-410 User Manual...
  • Page 40: Chipset

    Chipset 3.3.1 Chipset → System Agent (SA) Configuration VT-d  Enable or disable VT-D. DS-410 User Manual...
  • Page 41 3.3.1.1 Chipset → System Agent (SA) Configuration → Memory Configuration DS-410 User Manual...
  • Page 42: Chipset → Pch-Io Configuration

     Enable or disable Onboard LAN Controller. LAN1 PXE OpROM  Enable or disable LAN1 PXE OpROM. PCIE Wake  Enable or disable PCIE Wake. PinCntrl Driver GPIO Scheme  Enable or disable PinCntrl Driver GPIO Scheme. DS-410 User Manual...
  • Page 43 SATA Mode Selection  Select AHCI. Aggressive LPM Support  Enable or disable Aggressive LPM Support. SATA Controller Speed  Select Default or Gen1 or Gen2 or Gen3. M.2 M-Key → Port 1  Enable or disable M.2 M-Key. DS-410 User Manual...
  • Page 44  Enable or disable USB3 Port 2. USB2 Port 1  Enable or disable USB2 Port 1. USB2 Port 2  Enable or disable USB2 Port 2. M.2 E-Key Port  Enable or disable M.2 USB Port. DS-410 User Manual...
  • Page 45 3.3.2.3 Chipset → PCH-IO Configuration → HD Audio Configuration HD Audio  Enable or disable HD Audio. DS-410 User Manual...
  • Page 46 3.3.2.4 Chipset → PCH-IO Configuration → PCI Express Configuration PCI Express Root Port 2  Enable or disable PCIe of M.2. DS-410 User Manual...
  • Page 47: Security

    Security Administrator Password  Set/Configure Administrator Password. User Password  Set/Configure User Password. DS-410 User Manual...
  • Page 48: Security → Secure Boot

    3.4.1 Security → Secure Boot Secure Boot  Enable or disable Secure Boot. Secure Boot Mode  Select Custom or Standard. DS-410 User Manual...
  • Page 49 3.4.1.1 Security → Secure Boot → Key Management Factory Key Provision  Enable or disable Factory Key Provision. DS-410 User Manual...
  • Page 50: Boot

    Boot Setup Prompt Timeout  Configure Setup Prompt Timeout. Bootup Numlock State  Select On or off. Quiet Boot  Enable or disable Quiet Boot. DS-410 User Manual...
  • Page 51: Save & Exit

    Discard Changes  Discard your changes. Restore Defaults  Restore all the changes and back to default. Save as User Defaults  Save all your changes as user defaults. Restore User Defaults  Restore back to user defaults. DS-410 User Manual...
  • Page 52 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2023...
