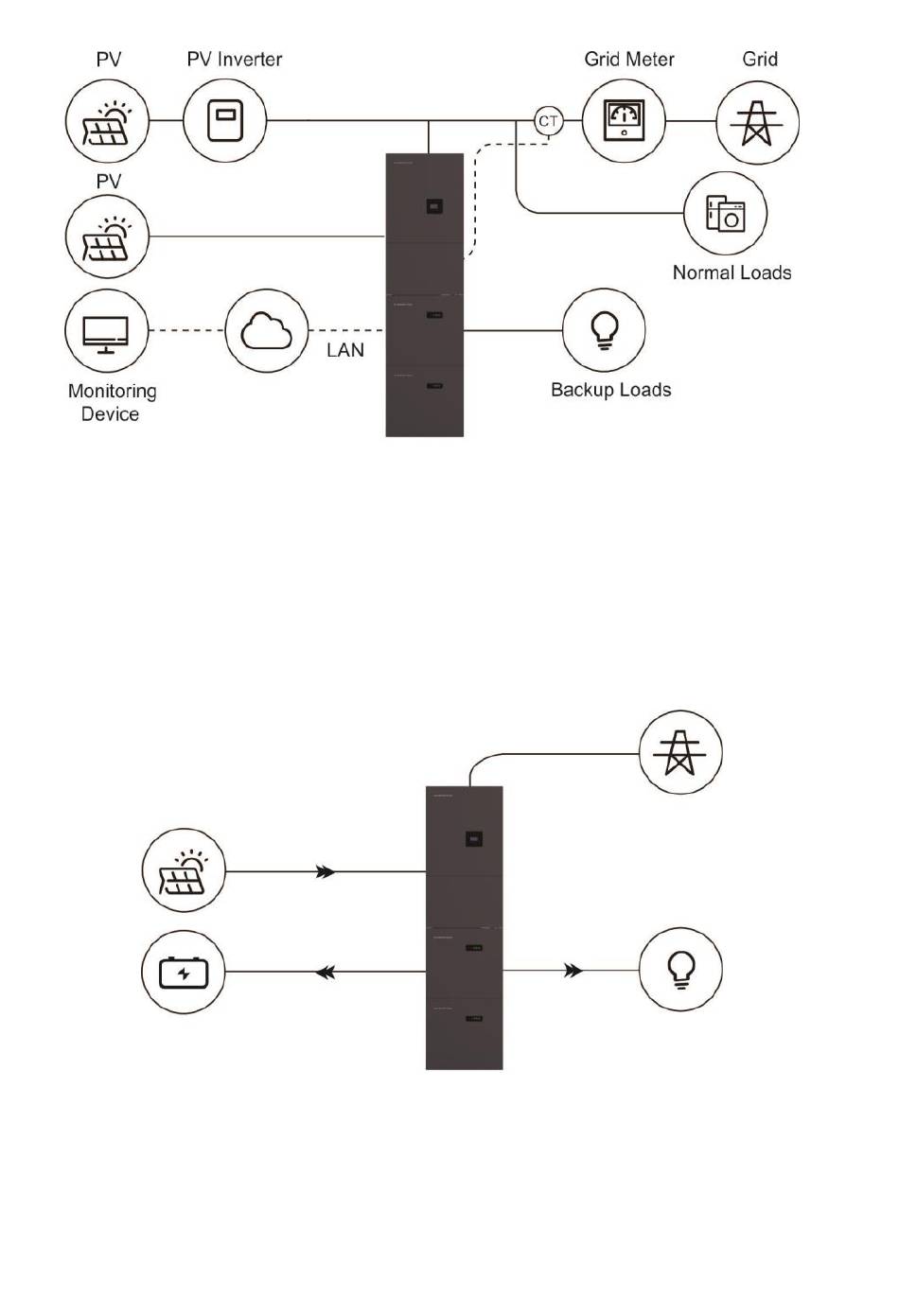

Figure 3 Hybrid-coupled Storage System-Scheme

1.2 Operation Modes

There are three basic modes that end users can choose via inverter screen/APP.
SELF CONSUME: The energy generated by the solar panels will be used in the following
order: Feed the home loads; Charge the battery and then, feed into the grid.
When the sun is off, the load will be supported by battery to enhance self-consumption.
If the power supply from the batteries is not sufficient, the grid will support the load
demand.
BAT PRIORITY: Under this mode, the battery is only used as a backup power supply
when the grid fails and as long as the grid works, the batteries won't be used to power
the loads. The battery will get charged with the power generated by the PV system or from
the grid.
