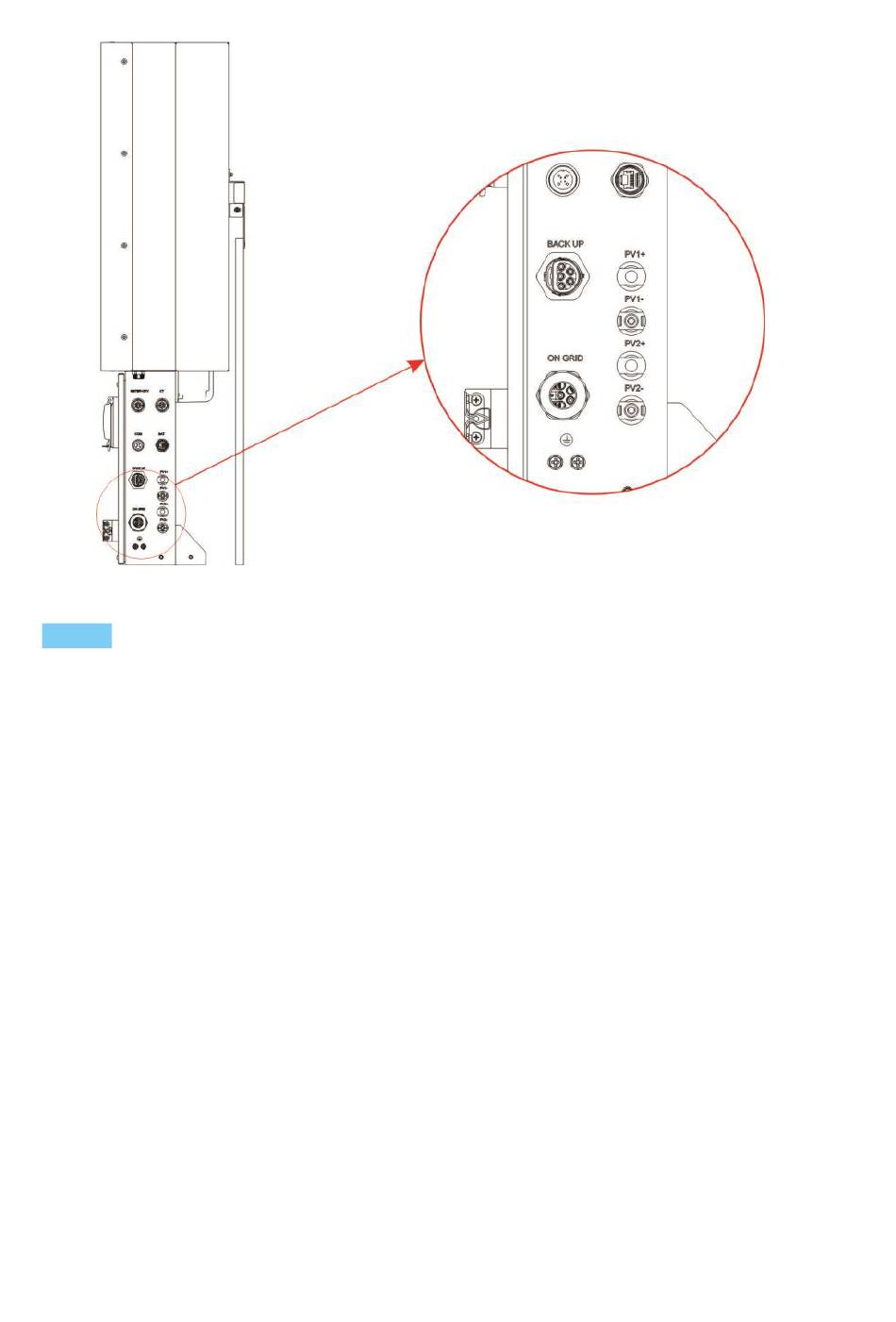

Figure 16 Cable Box Bottom View, Wiring Connectors
Step 9
Connect the BAT communication cable of the cable box from Step 13 to the
topmost battery at the right side. Then use the communication cable supplied with the
batteries to connect the batteries to each other via the respective connectors on the left
side. After you have connected all the modules together, close all covers (if you want to
connect further battery modules, you must mount them before closing).
27
