2.2 Installation
Step 1
Remove the battery and inverter from the packaging box.
2.2.1 Battery Installation
Step 2
Assemble the battery mounting panel on the battery.
Step 3
Position the battery parallel to the wall and use a Φ8mm drill to drill holes at a
depth of about 70mm in the wall for subsequent fix action of the mounting plates.
NOTE: The type B RCD must be installed on the backup port of the system
according to local regulations.

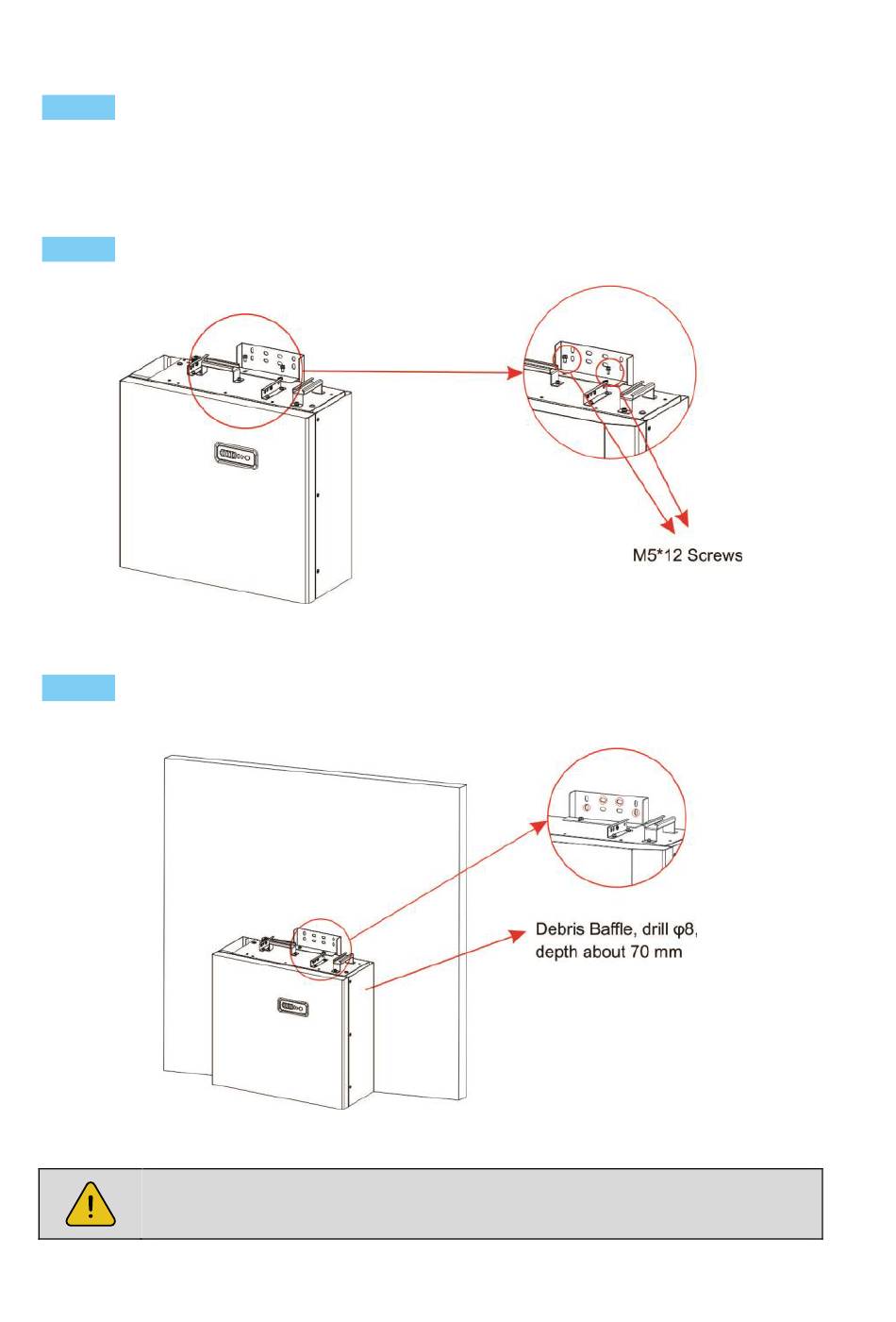

Figure 9 Assemble Battery Mounting Panel
Figure 10 Battery Installation - Drill Holes
21
