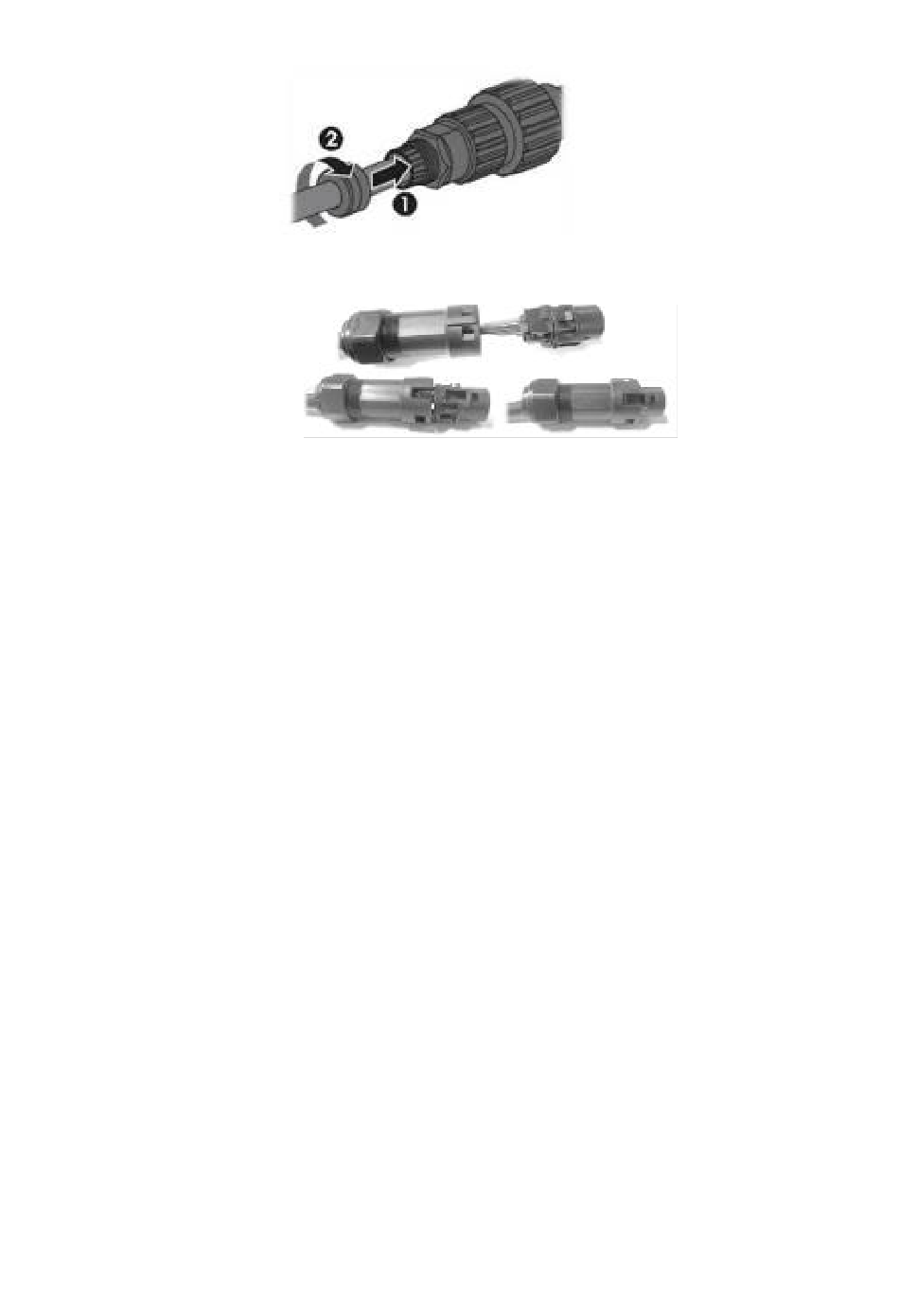

5. Assembly the plug shell ,adapter as below picture, Push the adapter and Shell by hand
until a "Click" is heard or felt.
6.Plug the AC connector into the jack for the AC connection by hand until a "Click" is
heard or felt.
(8) Use tool to clamp the AC wiring terminal and wire rod; screw the nut, but do not
tighten it. Make sure that the cable is free to pass through the waterproof components.
Once the terminal is connected to the right site of the inverter, tighten the nut.
