Parameter Setting - MULTISPAN AVH-16 Quick Start Manual

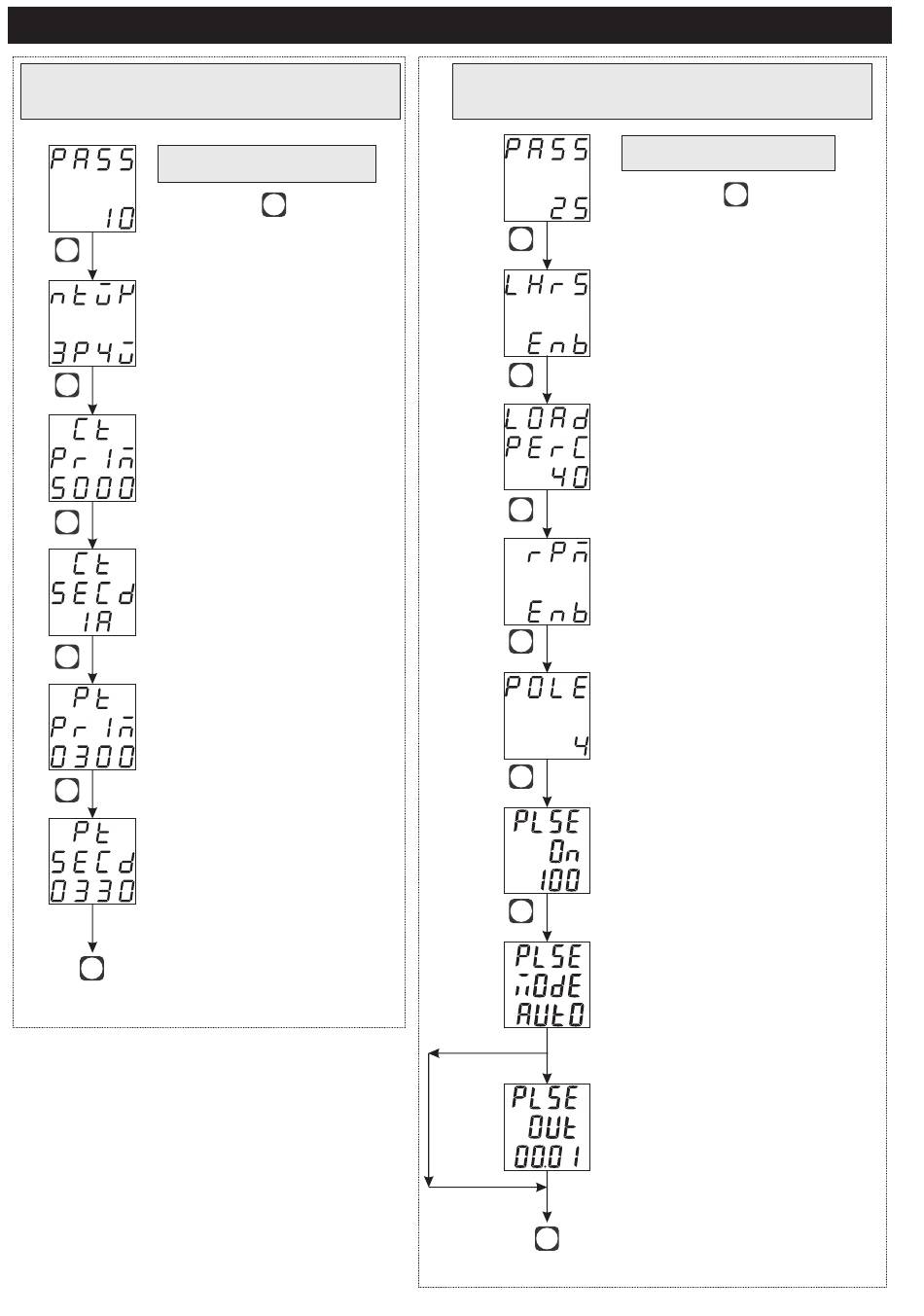

Basic Parameter Setting :
Network, CT/PT Selection.
Enter Password 10
Long Press
To Enter into parameter
PRG
Network Selection
(3P-4W/3P-3W/1P-2W)
PRG
CT Primary
(5 Amp to 6000 Amp
selectable)
PRG
CT Secondary
(5 Amp/1 Amp selectable)
PRG
PT Primary
(100V to 520kV selectable)
PRG
PT Secondary
(100V to 520V selectable)
Press key to save & exit from
PRG

parameter setting

PARAMETER SETTING
key
PRG
Advance Parameter Setting :
Load Hour %, No Load Hour, RPM.
Enter Password 25
Long Press
To Enter into parameter
PRG
Load Hour
Enable / Disable
PRG
Load Hour
Percentage
(5 to 50%)
PRG
RPM
Enable / Disable
PRG
Pole
(2 to 128)
PRG
Pulse ON Time
(10 to 500ms)
PRG
Pulse Mode
Auto / Manual
IF Auto
Pulse Out
(0.01, 0.1, 1, 10, 100, 1000)
Press key to save & exit from
PRG
parameter setting
key
PRG
