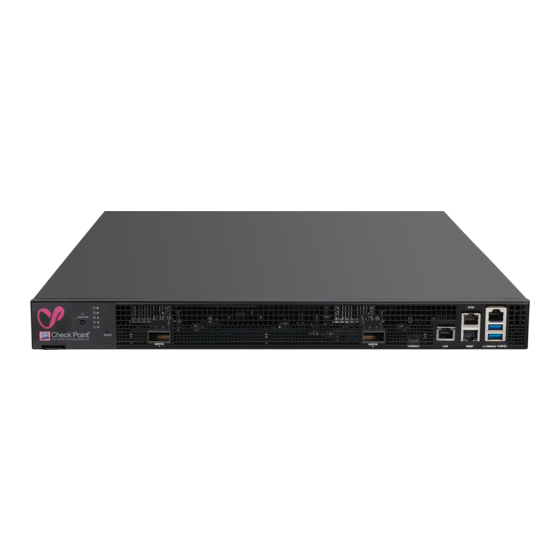

- Page 1 30 August 2021 INSTALLING AND REMOVING MEMORY IN SANDBLAST TE2000XN- 28VM/56VM APPLIANCES...
- Page 2 Check Point. While every precaution has been taken in the preparation of this book, Check Point assumes no responsibility for errors or omissions. This publication and features described herein are subject to change without notice.
- Page 3 Latest Version of this Document in English Download the latest version of this document in PDF format. Feedback Check Point is engaged in a continuous effort to improve its documentation. Please help us by sending your comments. Revision History Date...
-
Page 4: Table Of Contents
Table of Contents Table of Contents SandBlast TE2000XN Appliances Installing and Removing Memory Preparing the Appliance About DIMM Sockets DIMM Configuration Removing DIMMs Installing DIMMs Verifying the Memory Configuration Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances | 4... -
Page 5: Sandblast Te2000Xn Appliances Installing And Removing Memory
We recommend that you use the grounding wrist strap that is included in the memory kit. The grounding plug on the rear of the appliance provides a chassis grounding point. Memory Kit Contents QR code document - Installing and Removing Memory in Check Point TE2000XN Appliances Memory DIMMs ESD grounding strap (anti-static) To prepare the appliance: 1. - Page 6 SandBlast TE2000XN Appliances Installing and Removing Memory To remove the top cover: 1. Unscrew the cover screws (number 2 below). 2. Pull the top cover back in the direction of the arrows. 3. Pull the cover up to remove it completely. Item Description Appliance cover...
-
Page 7: About Dimm Sockets
SandBlast TE2000XN Appliances Installing and Removing Memory About DIMM Sockets Item Description Appliance front panel Appliance rear panel DIMM sockets Installing and Removing Memory in SandBlast TE2000XN-28VM/56VM Appliances | 7... -
Page 8: Dimm Configuration
SandBlast TE2000XN Appliances Installing and Removing Memory The memory sockets are colored blue. In the appliance configuration diagrams note that: The view shown is always from the top The front panel of the appliance is always at the bottom of the diagram Item Description Memory socket with DIMM installed... -
Page 9: Removing Dimms
SandBlast TE2000XN Appliances Installing and Removing Memory Removing DIMMs Important - The appliance contains sharp metal parts such as the heat sink fin and bracket that can cause injury or damage the DIMMs. "Preparing Make sure that you prepare the appliance before you remove DIMMs. For more information, see the Appliance"... - Page 10 SandBlast TE2000XN Appliances Installing and Removing Memory 4. Carefully pull the DIMM up. Important - Only touch the rear corners of the DIMM. Pressing on the heat sink or other DIMM components can damage the hardware. If necessary, pull one end of the DIMM, then the other, to gradually release it from the contact pins. Important - Make sure that there are no leftover parts inside the appliance.
-
Page 11: Installing Dimms
SandBlast TE2000XN Appliances Installing and Removing Memory Installing DIMMs You can replace a faulty DIMM with a new one in the same slot.. Important - The appliance contains sharp metal parts such as the heat sink fin and bracket that can cause injury or damage the DIMMs. - Page 12 SandBlast TE2000XN Appliances Installing and Removing Memory 3. Align the new DIMM above the socket. The top of the DIMM is smooth. The bottom edge has two different-length sets of contacts, which connect to the slots on the socket. Important: Only touch the top corners of the DIMM.
- Page 13 SandBlast TE2000XN Appliances Installing and Removing Memory 4. Press the new DIMM into the socket until it clicks into position. The retaining clips move into the lock position as you press the DIMM into position. 5. Do steps 1 - 4 again for the other DIMMs. 6.
-
Page 14: Verifying The Memory Configuration
SandBlast TE2000XN Appliances Installing and Removing Memory Verifying the Memory Configuration To verify memory configuration using the free command: 1. In the CLI, enter Expert mode. 2. Run: # free -wht Sample output: Note -The amount of installed memory is shown in the row named Mem under the column named total.
