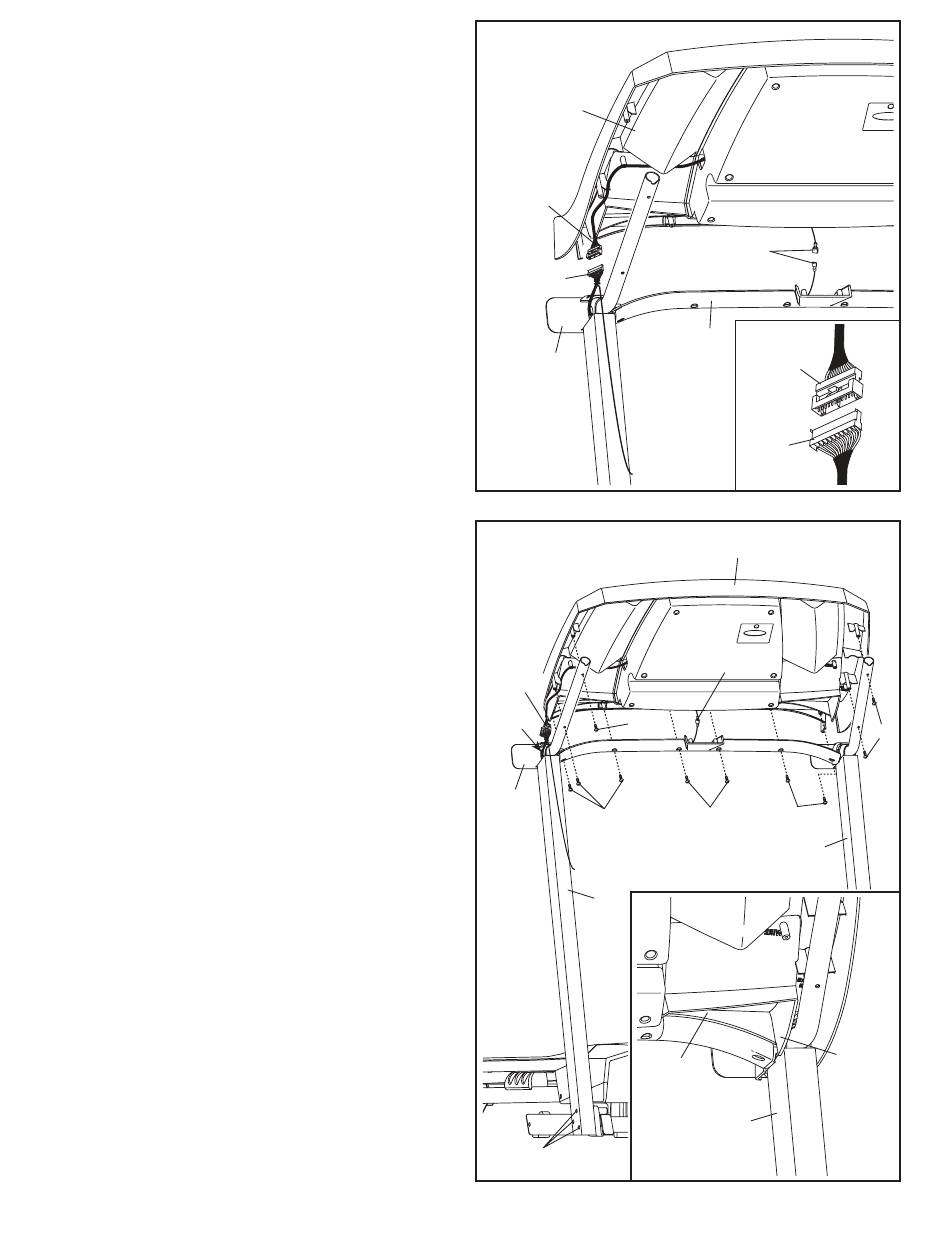

10. With the help of a second person, hold the con-
sole assembly near the Right Handrail (64).
See the inset drawing. Connect the Upright
Wire (63) to the console wire. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
Connect the console ground wire to the ground
wire on the Console Crossbar (61).
11. Insert the wires into the Right Handrail (64)
through the indicated hole as you set the con-
sole assembly on the Right and Left Uprights
(33, 66). Make sure that no wires are pinched.
See the inset drawing. When setting the
console assembly onto the Uprights (33, 66),
make sure that the indicated fl anges (only one is
shown) on the Console Base (58) do not sit on
top of the Uprights. They must be on the sides
of the Uprights as shown.
Attach the console assembly with ten #8 x 3/4"
Screws (4). Start all ten Screws, and then
tighten them; do not overtighten the Screws.
Firmly tighten the six 3/8" x 3 1/4" Screws (2) in
the lower ends of the Uprights (33, 66) (only one
side is shown).
10
Console
Assembly
Console
Wire
63
64
11
Wires
Hole
4
64
4
33
2
12
Ground
Wires
61
Console
Wire
63
Console Assembly
Wires
4
4
66
Flange
58
66
4
