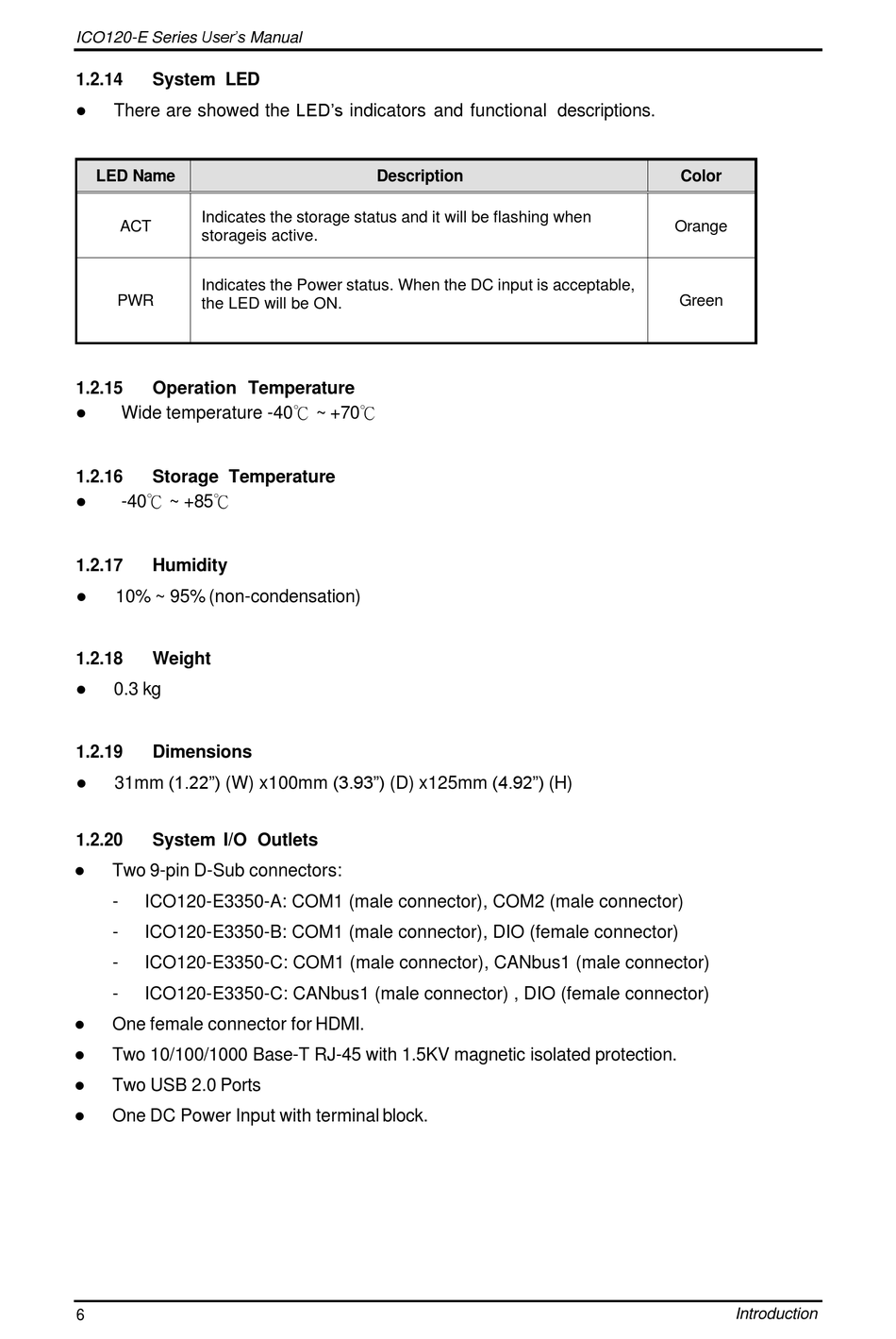

1.2.14 System LED
There are showed the LED's indicators and functional descriptions.
⚫
LED Name
Indicates the storage status and it will be flashing when
ACT
storageis active.
Indicates the Power status. When the DC input is acceptable,
PWR
the LED will be ON.
1.2.15 Operation Temperature
⚫ Wide temperature -40℃ ~ +70℃
1.2.16 Storage Temperature
⚫ -40℃ ~ +85℃
1.2.17 Humidity
⚫ 10% ~ 95% (non-condensation)
1.2.18 Weight
⚫
0.3 kg
1.2.19 Dimensions
31mm (1.22") (W) x100mm (3.93") (D) x125mm (4.92") (H)
⚫
1.2.20 System I/O Outlets
⚫
Two 9-pin D-Sub connectors:
- ICO120-E3350-A: COM1 (male connector), COM2 (male connector)
- ICO120-E3350-B: COM1 (male connector), DIO (female connector)
- ICO120-E3350-C: COM1 (male connector), CANbus1 (male connector)
- ICO120-E3350-C: CANbus1 (male connector) , DIO (female connector)
⚫ One female connector for HDMI.
⚫
Two 10/100/1000 Base-T RJ-45 with 1.5KV magnetic isolated protection.
⚫ Two USB 2.0 Ports
⚫ One DC Power Input with terminal block.
