Takara Belmont DIVAN-Z AB-DVZF Installation Manual

Be sure to store this manual in a secure location together with the operation manual as it describes items
that must be understood by the customer.
Installation Procedures

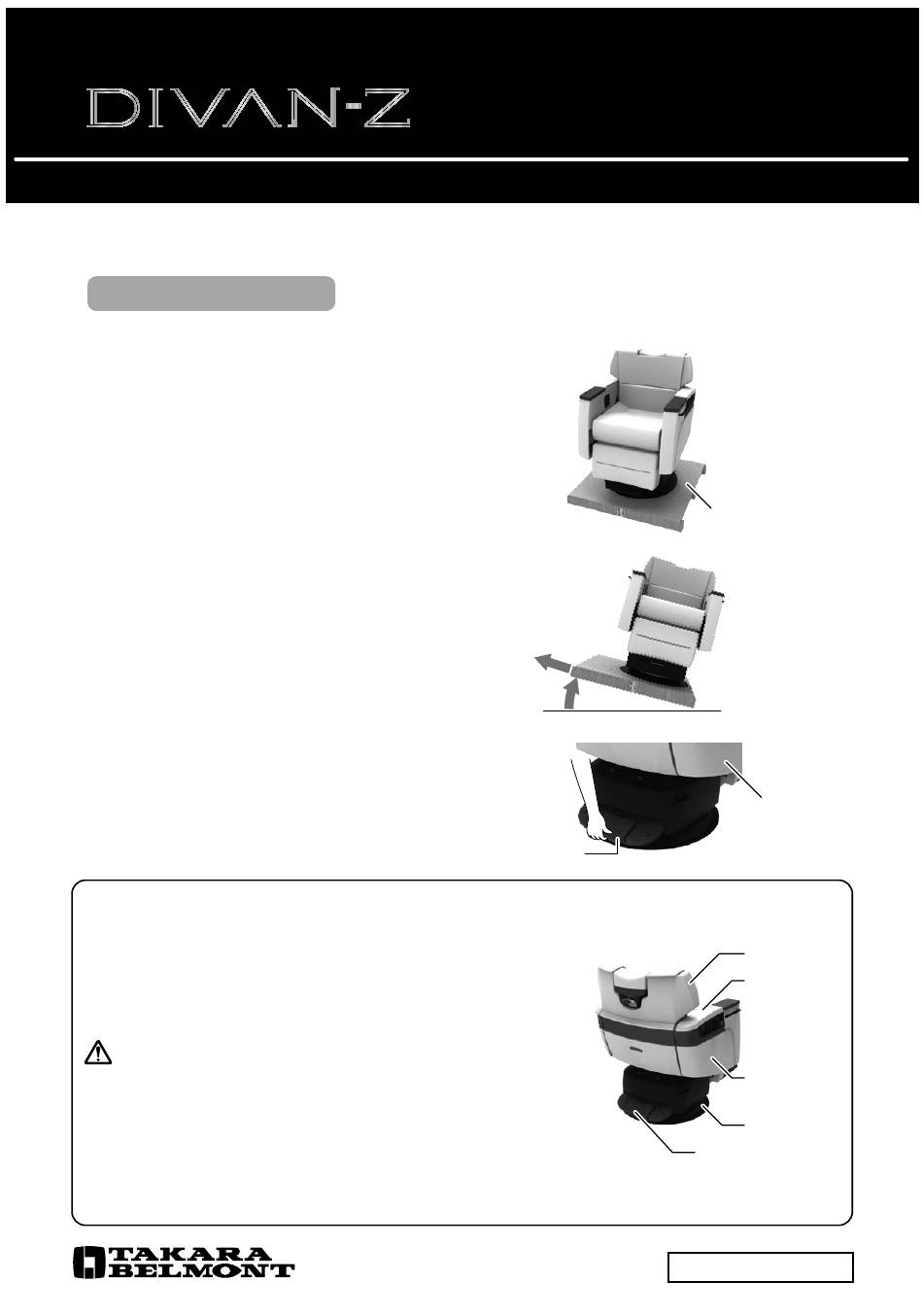

1. Move the chair to the installation location.
●Move the chair by holding the skid.
(Carrying the chair by the upper part is
dangerous because the base could come off
and drop.)
●When the chair is still on the skid, move the
chair to the edge of the skid as shown in the
figure on the right, tilt the chair and skid,
and pull out the skid. Removing the skid
without tilting it can result in the skid
interfering with the mechanisms on the
underside of the base, causing an abnormal
noise to be emitted when the chair is rotated.
●After unloading the product from the skid,
moving the chair by holding the metal plate
under the foot switch and the body (lower
half).
•Hold the base, foot switch, or the body (lower
half) when performing procedures such as
transporting, installing the rubber ring to, or
positioning the chair. (Do not hold the natural
wood parts.) When holding the chair, be
careful not to damage the cape holders, wrinkle
or dirty the leather, and that the base does not
come off.
CAUTION
•If you need to hold the upper half of the body or
the backrest it in a tilted position, take care not
to apply force.
•Make sure not to apply excessive force that
could damage the chair even when holding by
the parts shown in the figure on the right.
•Do not push the backrest from behind. This may
cause malfunction.
Takara Belmont Barber Chair
Installation Manual
AB-DVZF
Model No.
1
Foot switch
20 23 -04 (1st e di tio n)
Hold the skid when
carrying the chair.
Body
(lower half)
Backrest
Body
(upper half)
Body
(lower half)
Base
Foot switch
