Thank you for purchasing this Takara Belmont product.
Be sure to read this operation manual before operating the chair and always
operate the chair properly according to the instructions herein.
Failure to read this operation manual may lead to accidents.
●Carefully store this operation manual in a secure location near this product where
they can be readily accessed, and refer to them whenever necessary.
●This product is a barber chair designed for the services offered at hair salons.
Do not use this product for any purposes other than those described above.
This product shall be operated only by qualified hairdressers.
●Ask your authorized Takara Belmont dealer to install this product.
Please contact Takara Belmont with the BOOK No. (outlined below) if this operation
manual becomes torn or damaged and unreadable, or is lost.

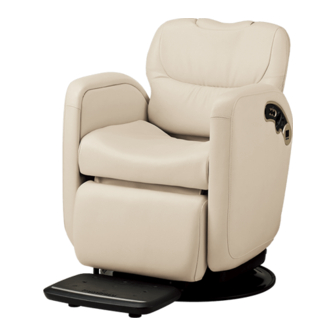

Takara Belmont Barber Chair
Model No.
Operation Manual
AB-MF
2023-11-01 (1st edition)
BOOK No.1E09ZFA0
BOOK No.1E09ZFA0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUAR AB-MF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Takara Belmont LUAR AB-MF

Summary of Contents for Takara Belmont LUAR AB-MF

  • Page 1 This product shall be operated only by qualified hairdressers. ●Ask your authorized Takara Belmont dealer to install this product. Please contact Takara Belmont with the BOOK No. (outlined below) if this operation manual becomes torn or damaged and unreadable, or is lost.

  • Page 2: Table Of Contents

    Contents Explanation of Warning Labels Safety Precautions Use Precautions Affixing Locations of Warning Labels Precautions Related to Synthetic (Natural) Leather Accessories Part Names Preparation Use Procedures (1) Guiding Customers ....................(2) Raising/Lowering the Chair ................... (3) Reclining and Raising the Backrest ..............(4) Using Preset Function ..................

  • Page 3: Explanation Of Warning Labels

    Takara Belmont has absolutely no responsibility for accidents that might be caused by failure to obey "Safety Precautions" and "Use Precautions" resulting in injury to users and other persons, or other damage. In this case, those using the product without observing "Safety Precautions"...

  • Page 4: Safety Precautions

    Doing so can result in electric shock or fire. Power cord replacement must be performed by a qualified person. If the power cord is damaged, it must be replaced by Takara Belmont, its distributors or similarly qualified persons in order to avoid a hazard.
  • Page 5 Safety Precautions WARNING Use and Cleaning Precautions Be careful to keep hands, fingers and other body parts of the customer and user from touching or getting close to moving parts. Doing so may cause the unit to have them pinched, resulting in injury. Customer must not lie on his/her stomach, put his/her legs or feet on the seat, or sit on the product with a child in his/her arms.
  • Page 6 Safety Precautions WARNING Use and Cleaning Precautions Precautions when getting in and out of the chair • When the customer gets on or off the chair, the chair should always be at entry/exit position (auto return position) with the chair rotation locked. •...
  • Page 7 • If the connection becomes loose, immediately stop using the equipment attached to the service outlet and unplug the equipment from the service outlet. Contact your authorized Takara Belmont dealer as soon as possible for inspection or replacement parts.
  • Page 8 If you feel that something seems slightly different or not normal, immediately stop using the chair, turn off the power and unplug the power plug, and contact your authorized Takara Belmont dealer. Always be sure to use your hands to operate the switches.
  • Page 9 Safety Precautions CAUTION Use and Cleaning Precautions Precautions when using a foot cushion Remove the foot cushion from the footrest when the customer gets in and out of the chair. Otherwise the customer may fall over causing injury. Be careful not to trip on the power cord. It may cause injury.

  • Page 10: Use Precautions

    Only persons who are certified hairdressers or beauticians can be allowed to use this chair. Do not use or store outdoors. Doing so can result in damage. Contact your authorized Takara Belmont dealer if the breaker function (p. 34) frequently operates. Maximum load (maximum lifting capacity) is 1350 N (135 kgf).

  • Page 11: Affixing Locations Of Warning Labels

    Affixing Locations of Warning Labels Rotating Table (OS Type) ・ Do not weigh more than 5kg on the table. ・ Insert the table tightly into the slot, when using the table. ・ Careful with customer’s fingers or hands not to touch the table when set back the chair. ・...

  • Page 12: Precautions Related To Synthetic (Natural) Leather

    Precautions Related to Synthetic (Natural) Leather Clothing dye adhering The color of clothing or belts can be transferred to the synthetic leather of this chair by means of contact. If color adheres to the leather, wipe off the stain as soon as possible before it soaks in by using a soft cloth that has been dabbed with a neutral detergent diluted with water to approximately one tenth, wipe it with a damp cloth and thoroughly wipe it dry.

  • Page 13: Part Names

    Part Names ■Main Unit Headrest Headrest cover (Leather) Backrest Armrest Control panel (Left) Service outlet (Type C Specification) Seat Cape holder (AB-MFB) Legrest Footrest (Removable) Base Base ring Foot cushion (OS type) Aluminum footrest (removable) can also Adjuster be installed. Table securing slot (OS type) Power switch...
  • Page 14 Part Names ■Operating Unit Control Panel ⑤ ⑩ ⑥ ⑧ ⑤ ⑥ ⑦ ⑦ ③ ③ ② ② ① ① ④ ④ ⑨ ⑨ Backrest switch Preset switch P2 ① ⑥ UP/DOWN switch Preset switch P3 ② ⑦ ③ Legrest switch ⑧...

  • Page 15: Preparation

    Preparation ■Power Supply 1. Insert the power plug into the outlet. Type C Specification Type BF Specification Ground Power plug Power plug Ground Power cord Power cord • Use an unshared outlet that has an attached ground terminal and matches the rated voltage and current *of this product.

  • Page 16: Use Procedures

    Use Procedures (1) Guiding Customers 1. Rotate the chair so that the customer can be easily seated on the chair. 1 Step on the rotation lock switch. Step on the rotation lock switch to release the lock and enable rotation of the chair. (Operation is the same on either side.) Chair rotation locking is performed by use of hydraulics.
  • Page 17 Use Procedures 2. Using the cape holder (AB-MFB) Using the cape holder: Provides space between the customer and the ● cutting cape to provide good ventilation. Makes it easy to clean up the cut off hair. ● 1 Rotate the pulled-out cape holder forward. Cape holder 2 Pull out the tip of the cape holder and pinch the cutting cape.

  • Page 18: Raising/Lowering The Chair

    Use Procedures (2) Raising/Lowering the Chair 1 Raising the chair To raise the chair, step on the right side of the UP/DOWN pedal switch on the base operation section or press the UP/DOWN switch of the control panel (right or left) upwards. The chair operates while the stepping on (pressing) the switch.

  • Page 19: Reclining And Raising The Backrest

    Use Procedures (3) Reclining and Raising the Backrest Headrest 1. If using the lift-up headrest operation button 1 Lift up the headrest operation lever and pull up the headrest. Secure the headrest at the desired position so that you can use it at that position.
  • Page 20 Use Procedures 2. Reclining the backrest Push the backrest switch of the control panel (right or left) in the direction of the arrow to recline the backrest. The chair operates while the switch is pressed. Backrest switch Left Right ⇨ If any switch except for the heater switch is pressed while the chair rotation lock is released, chair rotation is locked automatically.
  • Page 21 Use Procedures 4. Lowering the legrest Push the legrest switch of the control panel (right or left) in the direction of the arrow to lower the legrest. The chair operates while the switch is pressed. The legrest of legrest-footrest linked type lowers together with the footrest.

  • Page 22: Using Preset Function

    Use Procedures (4) Using Preset Function 1. Preset Function The preset function allows you to press a switch once to move the chair to the previously set work position. You can set up to three optional positions of this chair. The auto-return LED blinks rapidly during preset operation.
  • Page 23 Use Procedures Using Preset Switch P3 (Last and facial positions) Although the preset function of preset switch P3 can be used to function in the same normal manner as preset switches P1 and P2, you can change the setting of P3 to change it to a useful function that matches the desired customer use (last and facial positions).
  • Page 24 Use Procedures ■ Facial Position Function This function is useful as it allows you to recline and raise the chair without changing the height of the customer. For example, you can use this function if you want to reduce the work time or repeatedly check in the front mirror in the case of a facial service. By setting the facial position function for preset switch P3, only the back and legrest move to the set position (height does not change) when you press preset switch P3.
  • Page 25 Use Procedures 2. Auto-Return Function Press the auto-return switch on the control panel (right or left) once. The chair height, backrest angle and legrest position return to their initial position (position for getting in/out of chair). The auto-return LED blinks rapidly during auto-return operation. (An electronic "pough"...

  • Page 26: Removable Footrest

    Use Procedures (5) Removable Footrest You can remove the footrest anytime it might interfere such as when sitting a wheelchair customer in the chair or using a foot spa machine. If using the independent legrest type (AB-MFBSB), raise the legrest and make the guide visible before performing work.

  • Page 27: Heater

    ● If you notice abnormal heat when using the heater, turn off the power switch, unplug the equipment, and contact your authorized Takara Belmont dealer. (7) Accumulator (OS Type) This chair is equipped with an accumulator that reduces vibration when operating and stopping the chair.

  • Page 28: Yume Swing Bowl Positioning (Os Type)

    Use Procedures (8) Yume Swing Bowl Positioning (OS Type) This chair is equipped with a "Yume Swing Position Setting" in the chair base that detects position in order to be able to properly align the positions of the Yume Swing bowl and chair rotation. 1 Release the rotation lock and rotate the chair.

  • Page 29: Dryer/Iron Holder (Ab-Mfb)

    Use Procedures (9) Dryer/Iron Holder (AB-MFB) Pull out the dryer/iron holder at the center of the body on the right side of the chair. You can use this as a stand for a hand dryer or iron while working. Iron slots Dryer slot Dryer/Iron holder •...

  • Page 30: Service Outlets (Type C Specification)

    ● If the connection becomes loose, immediately stop using the equipment attached to the service outlet and unplug the equipment from the service outlet. Contact your authorized Takara Belmont dealer as soon as possible for inspection or replacement parts. ● Remove the power plug of a device from the outlet when not using it.

  • Page 31: Rotating Table (Os Type)

    Use Procedures (11) Rotating Table (OS Type) 1 Insert the rotating table into the table securing slot on Rotating table the side of the body until it is fully and securely inserted. (360°rotation) 2 As the rotating table can rotate a full 360°, you can set it to the proper position for the service you want to Cape holder provide, such as using it as a temporary stand for an...

  • Page 32: Foot Cushion (Os Type)

    Use Procedures (12) Foot Cushion (OS Type) This chair has a foot cushion that can be placed Legrest on the footrest on which the customer's legs can rest in order for the customer to recline with Footrest comfort. Use it for customers whose height is such that their heels extend beyond the legrest.

  • Page 33: Cleaning Procedures

    Cleaning Procedures Clean this chair after use to maintain it in a clean state. Leaving dirt or grime on the chair can result in the formation of mold. • Turn off the power switch and unplug the power plug before cleaning. Failure to do so can result in electric shock or fire.

  • Page 34: Before Requesting Repair

    If the the service outlet? power cannot be turned on when using a different device, contact Takara Belmont or its distributors. Breaker Function This is a protective function that prevents damage to devices due to using a current that exceeds the allowable value.

  • Page 35: Daily Inspection

    If operation is still not normal, stop using the switches. chair, turn off the power, unplug the power plug, and contact Takara Belmont or its distributors. □ Perform the procedures indicated in "2. □ Check that the chair moves Auto-Return Function"...
  • Page 36 Stop using the chair, turn off the power, unplug the power plug, and contact Takara Belmont or its distributors. □ Check that chair rotation □...

  • Page 37: Specifications

    Specifications Model No. AB-MF Weight 135 kg Maximum lifting capacity 1350 N (135 kgf) Temperature 0 - 40ºC Usage environment Humidity 10 - 95% (No condensation) Air pressure 700 - 1060 hPa Use the product at an altitude of 3000m or less. Temperature -20 - 70ºC Transportation / Storage Humidity 10 - 95% (No condensation)

  • Page 38: Standard Use Period

    Standard Use Period ● The standard use period of this chair is 10 years. ● The standard use period is "an approximate standard period for which the chair can be safely used with no impediments to safety under the standard use conditions for each chair and while performing proper maintenance and inspection (including parts replacement).
  • Page 39 NOTE...
  • Page 40 FRANKFURT/M,GERMANY TAKARA COMPAGNIE PARIS S.A.R.L. Importateur en France 56 rue des Hautes Pâtures 92009 NANTERRE Cedex France TAKARA BELMONT ITALY S.R.L. Importatore in Italia Via Marino Mazzacurati No.4/1, 42019 Scandiano RE, Italy EU Authorised representative TAKARA COMPANY EUROPE GmbH Berner Strasse 18, 60437...
