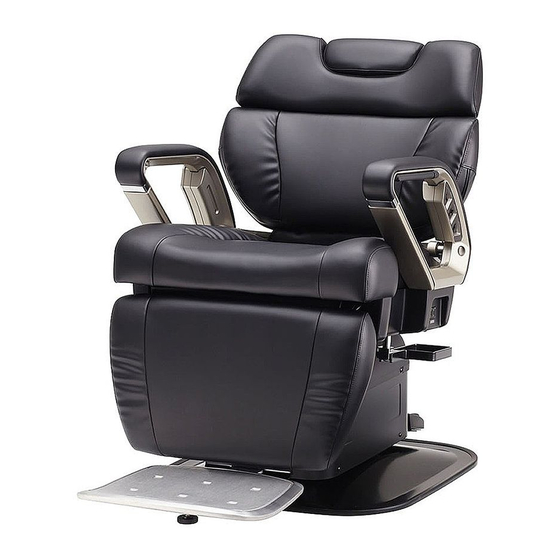

TAKARA BELMONT Barber Chair
INOVA-EX
AB-IVFB AB-IVFS
Model No.
AB-IVFT AB-IVFW
Operating Manual
Thank you for purchasing TAKARA BELMONT product.
Please read through this manual and
warranty carefully before installing or
using the product to ensure correct use.
Failure to read the operating manual may lead to accidents.
This product is designed for commercial use at barbers or
beauty salons. Do not use this product for the purposes other
than the practices and services in these places.
Keep this operation manual in a safe place for your future
reference.
Please contact us in case your operating manual is
unreadable due to being soiled or ripped, or is lost.
Table of Contents
(7) Detaching the Backrest (The Backrest (upper)
1
1
3
4
4
(artificial and natural leather)
4
5
7
10
11
14
15
16
16
17
18
19
19
20
21
22
22
2019.01
BOOK.No : 1E02MJEE
8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Takara Belmont INOVA-EX
Summary of Contents for Takara Belmont INOVA-EX
-
Page 1: Table Of Contents
Care and Maintenance Daily Inspection Troubleshooting Daily Inspection Procedure Specifications Thank you for purchasing TAKARA BELMONT product. Please read through this manual and Standard Period of Use warranty carefully before installing or When Disposing of This Product using the product to ensure correct use. -
Page 2: General Safety Instructions
These precautions are provided for the safe use of this product and to prevent personal injury and harm to users and third parties. Please follow all of the precautions shown here, as they contain important information related to safety. TAKARA BELMONT bears no responsibility for personal injury or harm caused to the user or third parties in the event that the “Safety Precautions”, “Notes for Use”... - Page 3 Safety Precautions (Be sure to observe them) Warning Care must be taken under environment with electromagnetic interference waves Be careful during installation This product may malfunction under environment with electromagnetic Have installation or mounting of the equipment performed by • interference waves.
-
Page 4: Notes For Use
Safety Precautions (Be sure to observe them) Caution Be sure to turn on or off the power switch by hand Do NOT let persons weighing 135kg or more sit in the chair Doing so may result in a falling accident or cause malfunction. Before operation, confirm that every part is working Watch your step so that you aren’t caught by the normally and safely... -
Page 5: Position Of Warning Label
Position of Warning Label Notes for Use with Upholstery (artificial and natural leather) Adherence of fabric dyes The upholstery may be stained by coming into contact with fabric, belts or other such attire. In order to avoid infiltration by plasticizer when color has been adhered, apply a solution of neutral detergent diluted by about 10% to a soft towel and wipe off the color as soon as possible. -
Page 6: Name Of Components
Name of Components Main body Backrest (upper) removable model Headrest (with headrest cover) (AB-IVFS and IVFW) Backrest (upper) Backrest (lower) Armrest Cape holder Control panel (left) Seat Service outlet Auxiliary holder Legrest (AB-IVFS and IVFW) Base Adjuster Step Power cord Power plug Backrest (upper) fixed model... - Page 7 Name of Components Control panel Left Right (1) Preset switch P1 (2) Preset switch P2 (3) Backrest switch Control panel (4) UP/DOWN switch (5) Auto return switch (6) Legrest switch (AB-IVFW, IVFT) (7) Service outlet Base operation unit Power switch Base Rotation lock switch UP/DOWN pedal switch...
-
Page 8: Preparation
Preparation Power Supply Inserting the power plug to the outlet Type C Specification Be sure to plug the power cord into an Outlet outlet of 230 VAC (7A or higher). Do not ※ (With ground terminal) share the outlet with other appliances. Power plug ※... -
Page 9: How To Use
How to Use (1) Using the Rotation Lock Switch and Cape Holder 1. Rotate the chair so that your customer can be easily seated on the chair. 1 Depress the rotation lock switch. The chair can be rotated freely by depressing the lock switch (either left or right button). - Page 10 How to Use 2. Using the cape holder Using the cape holder provides the following: Good ventilation (making space between the customer and cutting cape) Easy handling of cut hair Pull out the cape holder from armrest and rotate it forward.
-
Page 11: Raising/Lowering Chair
How to Use (2) Raising/Lowering Chair Raising the chair For raising the chair, depress the right side of the UP/DOWN switch in the base operation unit or push the UP/DOWN switch of the control panel (either left or right side) upward. The chair will move while the switch is depressed (or pushed). -
Page 12: Adjusting The Headrest, Backrest, And Legrest
How to Use (3) Adjusting the Headrest, Backrest, and Legrest 1. Pulling up the headrest It is not necessary to use the headrest when the head of a customer does not need to be supported such as back shampoo. 1 Insert your hand between the headrest and the backrest and then pull up the Headrest Headrest... - Page 13 How to Use 2. Reclining the backrest Press the backrest switch of the control panel (either left or right side) downward for reclining the backrest. The backrest continues reclining while the switch is pressed Backrest switch Left Right Moved while the switch is pressed If the chair is unlocked, it is locked automatically when pressing any of the switches.
- Page 14 How to Use 4. Raising the legrest (AB-IVFW, AB-IVFT) Press the legrest switch of the control panel (either left or right side) upward for raising the legrest. The legrest continues rising while the switch is pressed. Legrest switch Right Left Moved while the switch is pressed If the chair is unlocked, it is locked automatically when pressing any of the switches.
-
Page 15: Preset Function And Auto Return Function
How to Use (4) Preset Function and Auto Return Function 1. Using the preset function Preset function: The seat is raised and the backrest is reclined to the preset position automatically with a press of the switch. You can set two preset positions to this chair. If you use the headrest, pull up the headrest to a desired position beforehand. -
Page 16: Using The Removable Step (Ab-Ivfw)
How to Use Cancel function If you want to stop the automatic operation of the chair using the preset switch or the auto return switch, pressing either switch can stop the operation. The cancel function works, and the operation will stop. (A “beep”... -
Page 17: Using The Dryer Holder
How to Use (6) Using the Dryer Holder Swing out the dryer holder from the lower part of the armrest (right). Use the dryer holder as the temporary holder of a hand dryer or hair iron during work. When storing Hair iron hole When using Dryer hole... -
Page 18: Using Service Outlet
How to Use (8) Using Service Outlet Service outlets are provided on the both control panels (230V, 7A). ※ When the chair is not operated, the total current of the service outlets on the both sides is 7A or less. Meanwhile, when the chair is operated, the total current of the thi s si d e If thi s si d e... -
Page 19: Care And Maintenance
Care and Maintenance Take care of the product after use and keep it always clean. If the product remains dirty, it may get moldy. When you clean the product, be sure to unplug the power cord from the outlet. Maintenance of each section Leather Resin Wipe the surface with soft and dry cloth gently. -
Page 20: Daily Inspection
Daily Inspection To ensure safe use, inspect the product according to “Daily Inspection Procedure” in Page 20 in this manual. Be sure to inspect the product by following the description of “Daily Inspection Procedure.” Using the product without conducting daily inspection may cause breakdown or accident. Troubleshooting Please conduct inspection on your own before contacting your service agent or us. -
Page 21: Daily Inspection Procedure
Daily Inspection Procedure Follow the inspection procedure below to ensure safe and long use of the product. Items to be checked every day Item to be inspected How to inspect In case of x (rejection) as a result of inspection Proper operation of the Inspect that beep continues Turn off the power, wait for about 5 seconds,... -
Page 22: Specifications
Daily Inspection Procedure Item to be inspected How to inspect In case of x (rejection) as a result of inspection Proper operation of the Inspect that the product does not When the product wobble and abnormal wobble and abnormal sound does sound occurs during operation, stop using the equipment not occur during operation. -
Page 23: Standard Period Of Use
This is not a warranty period. The “standard period of use” will differ depending on an environment that the customer uses the product in and its frequency of use. For maintenance after the standard period of use has passed, consult your local dealer or TAKARA BELMONT. When Disposing of This Product Properly dispose of this product or its replacement parts in accordance with the laws and regulations at the time of disposal. - Page 24 MANUFACTURER EU REPRESENTATIVE TAKARA COMPANY EUROPE GmbH Berner Strasse 18, 60437 TAKARA BELMONT CORPORATION Frankfurt am Main, Germany 2-1-1, Higashishinsaibashi, Chuo-ku, Osaka, 542-0083, Japan TEL:81-6-6212-3523 Tel:+49 69 506878 0 FAX:81-6-6211-5745 Fax:+49 69 506878 20 BOOK.No : 1E02MJEE Original instruction...
