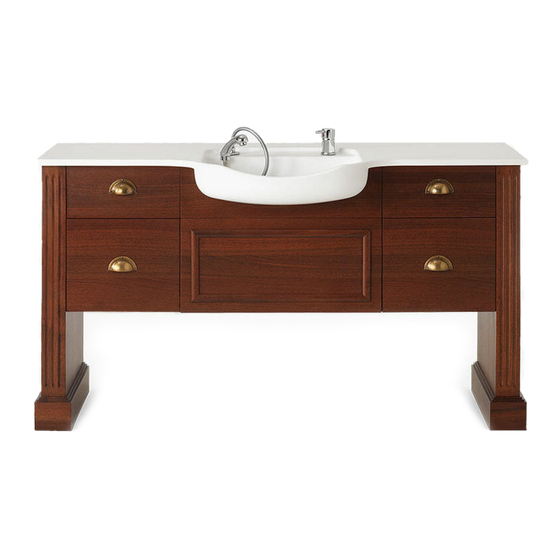

Barber Cabinet & Front wash basin
Dover
Dover with Mini Cabi
Dover
Operation / Installation manual
Preparation before Installation
(Specification Drawings)
Usage condition
Parts List / Accessory Parts
Installation Procedure
Safety Precautions
Precautions for Use
Care and Maintenance
To the installer
• The instructions should be thoroughly read
and understood before installation to ensure
that Dover is installed correctly.
•
After installation, give these instructions to the customer.
To the customers
• Customers must ask proffessional to install Dover.
• Customers must not install Dover by themselves.
• Customers must store these instructions in
a safe place so as not to lose them.
* The actual shape of Dover and the images
and dimensions listed in these instructions may be
modified and are subject to change without notice.
The precautions listed here are to ensure that Dover
can be installed safely, and to prevent any
danger or risk to the person installing Dover
or those around them. All of these precautions are
important for safety. Takara Belmont is not responsible
for any damage or risk to the person installing Dover
or those around them due to accidents if
Dover is installed without adhering to the
precautions.
Caution
If Dover is installed after ignoring this symbol,
"there is the risk of light or moderate injury or physical
damage".
Note : Plumbing should be performed by a qualified
technician and should meet all national and local
plumbing codes and ordinances. It is the responsibility
of purchaser and/or plumber to conform to national
and local codes and ordinances. Takara Belmont does
not take any responsibility or liability for plumbing and
installation.
1
Contents
Version 1
April 2017
2
3
3
4
6
8
9
Advertisement
Table of Contents
Related Manuals for Takara Belmont Dover
Summary of Contents for Takara Belmont Dover
- Page 1 All of these precautions are important for safety. Takara Belmont is not responsible for any damage or risk to the person installing Dover or those around them due to accidents if Dover is installed without adhering to the precautions.
-
Page 2: Preparation Before Installation
Preparation before Installation Prior to installation, determine the installation position of the product referring to the following drawings. Installation Instruction of water tap included in the package should be throughly read and understood before use. Raise the drain pipe, the water supply pipe, and the hot water supply pipe referring to the following plumbing layout. -
Page 3: Usage Condition
Usage Condition Hot water supply and water supply conditions •Public water supply (do not use non-drinkable well water or water that contains rust or sand.) Water used installed. Hot water supply, •Set the difference between the hot water supply pressure and water supply water supply pressure Hot water... -
Page 4: Installation Procedure
Installation Procedure 1. Before installation, with reference to the plumbing layout and the dimensions in this manual, raise the water supply pipe, hot water supply pipe and drainage pipe. 2. Fix the Mixer and Shower head on the Basin top plate with reference to the manual included in the package of the Mixer and Shower head. - Page 5 5. Fix the Drawer handles to each drawers with screws provided. (Fixing ways vary depending on the handle types.) 6. Assemble the Bottle trap. Then detach the Maintenance cover and fix the Bottle trap to the Drain cap. Bottle trap 7.
-
Page 6: Description Of Warning Symbols
Description of Warning Symbols Warning Caution Note CAUTION Hot water user actions Disassembly Prohibited Safety Precautions (Adhere to these precautions at all times) Warning Install on a stable area Do NOT use this product for back wash shampooing. This product is designed only for front wash shampooing. - Page 7 Warning Do not use hot water (boiling water) Adjust the water temperature while checking the temperature by hand. of 60 °C or higher. CAUTION Using hot water of 60 °C or higher may deform or When adjusting the temperature of the water, Hot water damage the parts such as the basin, shower head reduce the volume of water, point the shower...
-
Page 8: Precautions For Use
Precautions for Use Caution Always wipe the floor clean if it is wet. Do not use peppermint or aroma oil. Do not use peppermint or aroma oil containing menthol. Failure to take this precaution may damage the resin parts, such as the showerhead, shower hose, hair catcher, and drain cap. -
Page 9: Precautions On Resin (Plated) Parts
Check to ensure that there are no flaws, cracks, or peeling of the plated surface Caution before using the product. If peeling is observed, immediately stop using the product and contact your closest dealer or Takara Belmont. Continued operation may result in injuries. Example of flaws on the plated surface...
