- Page 1 Bedienungsanleitung instrucciones de manejo mode d'emploi gebruiksaanwijzing 11867180 Canto 1500 msr FF 120V Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
-
Page 2: Table Of Contents
LDR Canto 1500msr FF 120V User’s manual – 2.0 ENGLISH – TABLE OF CONTENTS Important safety norms …………………………………………………………………….. page 2 1. Check packing content……………………………………………………………………. page 4 2. Mounting the spigot…………………………………………………..…….... page 4 3. Mounting the colour changer …………………………………………..……….…… page 4 4. Mounting/ replacing the iris diaphragm ………………………………………... page 5 5. Shutter blades …………………………………………………………………………..…… page 5 6. Adjusting the yoke ……………………………………………………………………..…. page 5 7. Important notice before the installation/installation…………………….. page 6 8. Wiring ………….……………………………………………………………………………….. page 6 9. Voltage ………………………………………..…….………………………………………… page 7 10. Frequency …………………………………………………………………………………….. page 7 11. Fuse ………………………………………………………………………………………………. page 7 12. Mounting or replacing the lamp ……………………………………………………. ... -
Page 3: Important Safety Norms
LDR Canto 1500msr FF 120V User’s manual – 2.0 ENGLISH Thanks for having chosen Luci della Ribalta srl. We hope our products and services meet your requirements, but should this not be the case, we kindly ask you to contact us directly to help us supply you and all our customers with better and better quality. The product you purchased has been manufactured with maximum care and selected components, but should you, for reasons beyond our control, have received it damaged, we kindly ask you to contact the dealer who ... - Page 4 LDR Canto 1500msr FF 120V User’s manual – 2.0 Replace the lamp, the reflector and the lenses if damaged or deformed by heat. Make sure the lamp is cold before attempting to remove it. To perform a correct installation of the lamp, please refer to the lamp manufacturer's instructions included in the lamp box and to the relevant chapters in this manual. Repairing and replacement of any component of this product must be carried out exclusively by professional personnel in conformity with the relevant safety and health standards and ...
-
Page 5: Check Packing Content

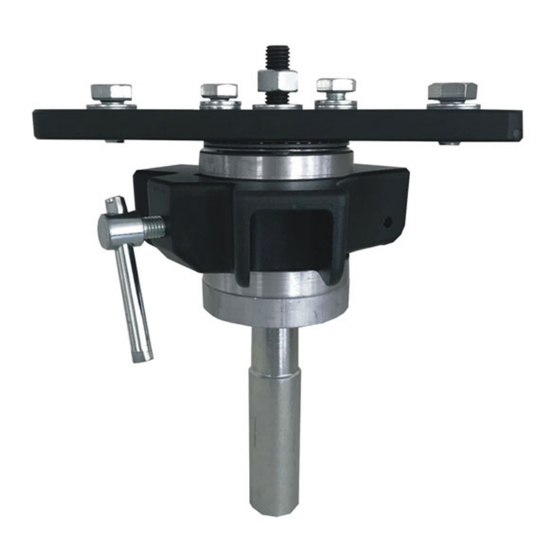

LDR Canto 1500msr FF 120V User’s manual – 2.0 1. CHECK PACKING CONTENT Upon opening the packaging, please make sure it contains the following: A. In case you bought just the followspot – item #11877180 Canto 1500msr FF 120V 1. luminaire: a. Followspot net weight kg 23.2 b. Iris diaphragm ‐ mounted c. ø 28mm spigot with M12 self locking nut and plain washer net weight kg 1.0 2. PSU: a. 120V separate electronic ballast unit net weight kg 8.5 B. In case you bought the complete kit – item #K11877180 packed in a flight‐case: a. Follow‐spot ... -
Page 6: Mounting/ Replacing The Iris Diaphragm
LDR Canto 1500msr FF 120V User’s manual – 2.0 colour levers are positioned on the right‐hand side of the follow spot when viewed from behind and hang it to the previously positioned screws. Release the colour filters of the colour changer in order to have access to the screws and tighten them. Ensure the colour changer unit is secure, and all three screws are tight. 4. MOUNTING / REPLACING THE IRIS DIAPHRAGM The iris diaphragm supplied with the followspot has 20 leaves to size the beam from a maximum aperture of 68mm to a minimum of 5mm. A black‐out iris diaphragm is available to special order. The iris diaphragm comes factory‐mounted already but should you for any reason need to fit or replace the iris diaphragm then: Using a Phillips screw‐driver remove the two cross‐head screws from the sides of the iris plate. Slide the diaphragm in the gate area. Tighten the screws. Important notice: do not leave the iris closed for over 5 minutes while the lamp is on Use the front dowser to “cut off” the light should you require to have the lamp on with no beam projecting on the stage. FAILURE TO COMPLY WITH THE ABOVE NOTICE MAY CAUSE THE IRIS AND THE FOLLOWSPOT TO SUFFER MAJOR HEAT DAMAGES AND WILL INVALIDATE THE PRODUCT WARRANTY 5. SHUTTER BLADES Shutter blades are not supplied with the unit but are available as separate accessory. They are sold as single items and relevant part number is R80208019, 4x are required. ... -
Page 7: Important Notice Before The Installation/Installation
7. IMPORTANT NOTICE BEFORE THE INSTALLATION / INSTALLATION This fixture is meant for tripod‐mount installation only. No hanging is allowed In case you need the followspot to be hung please contact your dealer or LDR as a special version for hanging is available on demand Before installing this fixture check its weight on the product label and the weight of each ... -
Page 8: Voltage
LDR Canto 1500msr FF 120V User’s manual – 2.0 or coloured in green or in green‐ marked with the letter E or with the symbol yellow The blue wire must be connected to the connection point marked with the letter N or with the symbol or coloured in black The brown wire must be connected to the connection point marked with the letter L or with the symbol or coloured in red Before you finally position this product for use, temporarily connect it to a properly fused ... -
Page 9: Lamping The Followspot
Remove the panel. Remove the lamp (if operating a replacement) by holding the ceramic base and turning it until the lamp is dislodged Place the new lamp in by holding the ceramic base and turning it until the base is locked in position. A “click” should be heard. Re‐position the lamp holder panel by turning clockwise the two ¼ turn fasteners LDR declines any responsibility on poor performance of the unit or damages to the inner components in case the lamp has not been installed properly or a non compatible lamp is used 13. LAMPING THE FOLLOWSPOT Plug the follow spot to the electronic PSU and make sure the connector is safely clamped in Please note that each followspot has been factory tested with relevant PSU. Both units are recognized by a serial number on the outer box, on the units and on the front cover of the instruction manual. Make sure you match each followspot to the relevant PSU. Connect the PSU to your 120 volt mains power ... -
Page 10: Operation
LDR Canto 1500msr FF 120V User’s manual – 2.0 Switch on the unit and project the beam on a flat surface (a wall, for example) at a short distance (0,5m approximately). Completely de‐focus the zoom so that you can see the lamp or its filaments projected on the surface. Close the dowser to a slightly bigger size than the height of the lamp. You should obtain a circle of light including the projection of the lamp. If the lamp is not exactly centred in the circle, set the alignment by loosening/tightening the M4 screw positioned on the left‐hand side of the lamp‐house near the lamp‐holder panel. CAUTION: adjust the screw very slowly in order not to cause the lamp bulb to touch any of the components of the optical system as this would cause both the lamp and the lenses to explode. Once the alignment is correct you can start using your followspot. 15. OPERATION Focus control: this fixture features a variable beam angle from 8° to 22° which can be controlled ... -
Page 11: Cleaning And Maintenance
LDR Canto 1500msr FF 120V User’s manual – 2.0 Beam‐sizing: the size of the beam is controlled using the supplied iris diaphragm Beam‐shaping: 4 accessory shutter blades (see chapter 5. of this manual) can be fitted to shape the beam Beam‐dimming and black‐out: this followspot is fitted with an adjustable mechanical dimmer (dowser) to dim and finally black‐out the light. The black‐out mechanical dimmer is located between the two zoom lens‐assemblies in the front lens‐tube CAUTION: Make sure you always use the dowser to black‐out the light and never the sizing iris ... -
Page 12: Spare Parts
LDR Canto 1500msr FF 120V User’s manual – 2.0 Open the lens compartment door by removing the two M4 cross head screws on the top of the lamphouse tube. Remove the lens/mirror assembled block by removing the two M5 cross head screws. Clean the lens/mirror with a softcloth. Zoom lenses: Slide open the front zoom panels positioned on the bottom of the lens tube and clean with a soft cloth. 17. SPARE PARTS All components are available as spare parts. We strongly recommend you always use original LDR components as spare parts. Please refer to our technical assistance should you need to order and/or replace any part of the unit. 18. WARRANTY Our warranty covers all structural and manufacture defects from one year from the date you ... - Page 13 P .iva 01815640204 c.iso IT01815640204 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo MN Italy - tel +39 0376 771777 - web www.ldr.it - email info@ldr.it IT/015/MN/11 VAT registration # It01815640204 - REA MN 198438 - Authorized Exporter #...
- Page 14 modulo di reclamo ‐ complaint form Reklamationsformular ‐ formulaire de réclamation ‐ hoja de reclamaciones fax: +39 0376 772140 Azienda ed Indirizzo ‐ Company's name and address ‐ Firmenname und Addresse ‐ Nom et adresse ‐ Nombre y direcciòn _______________________________________________________________________________________________________ _______________________________________________________________________________________________________ Nome del rivenditore da cui il prodotto è stato acquistato ‐ Name of the dealer where you have purchased the product ‐ Namen der Firma, die Ihnen das Produkt verkauft hat ‐ Nom de la société qui vous a vendu ce produit ‐ Nombre de la compañia donde han comprado el producto: ____________________________________________________________________________________________________ 11867180 Canto 1500 msr FF 120V Prodotto difettoso Faulty product Defekte s Produkt Produit défectueux Producto defectuoso Descrizione del problema /Problem found/Beschreibung des Defekts/Description du défaut/Descripciòn del problema ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ ________________________________________________________________________________________________________ Data d'acquisto ‐ Date of purchase ‐ Kaufdatum ‐ Date de l'achat ‐ Fecha de compra ________________________ Si prega di allegare prova d'acquisto ‐ Please attach copy of purchase invoice ‐ Bitte Kaufnachweis beilegen ‐ Veuillez joindre une quittance d'achat ‐ Les rogamos incluyan lcopia de la factura de compra. Nome e qualifica ‐ Name and position ‐ Name und Funktion ‐ Nom et fonction ‐ Nombre y cargo ____________________________________________________________________ Data ‐ Date ‐ Datum ‐ Date ‐ Fecha _____________________________...
- Page 15 local de escoamento de residuos, ou a loja na qual efectuou a compra. Richtlinie 2002/96/EU (Elektro- und Elektronik- Altgeräte - WEEE): Benutzerinformationen. Dieses Produkt entspricht Richtlinie WEEE-symbolet (Waste Electrical 2002/96/EU. Das Symbol des auf dem Gerät Electronic Equipment). dargestellten, durchgestrichenen Korbes gibt an, dass Bruken av WEEE-symbolet indikerer at dette Produkt Ende...
- Page 16 Luci della Ribalta srl, Via Berna 14, 46042 Castel Goffredo mn Italy. tel +39 0376 771 777 ‐ fax +39 0376 772 140 ‐ email info@ldr.it...
