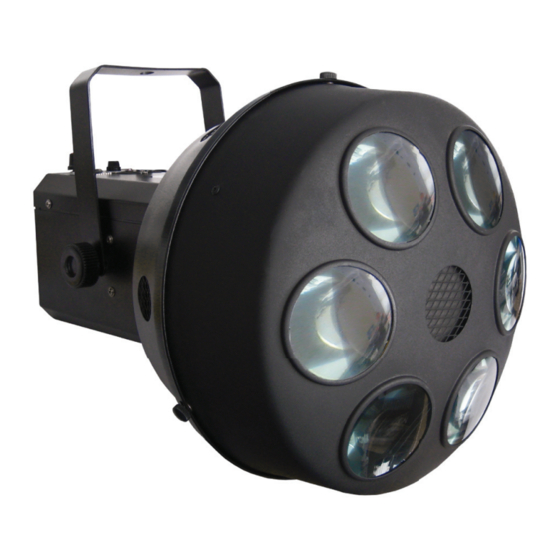

Equinox Systems PREDATOR User Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
w w w . p r o l i g h t . c o . u k
Order code: EQLED32
user manual

Advertisement

loading

Related Manuals for Equinox Systems PREDATOR

Summary of Contents for Equinox Systems PREDATOR

  • Page 1 w w w . p r o l i g h t . c o . u k Order code: EQLED32 user manual...

  • Page 2: Safety Instructions

    Equinox Predator Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...

  • Page 3: Operating Determinations

    Equinox Predator Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...

  • Page 4: Technical Specifications

    Equinox Predator Technical specifications You should find inside the Equinox carton the following items: 1, Equinox Predator 2, Power cable 3, Instruction manual Technical Specifications: DMX channels: 4 Voltage: AC 240V - 50Hz 122 Ultra Bright LEDs (R: 32, G: 48, B: 42)
  • Page 5 Equinox Predator Overview Master/Slave connection 1) Connect the 3-pin (male) connector of the DMX cable to the output 3-pin (female) connector on the master unit 2) Now connect the opposite end of the DMX cable to the input socket on the slave unit/s.
  • Page 6 DATA Cable (DMX cable) requirements (for DMX operation): • The Equinox Predator can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 7 Equinox Predator DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
  • Page 8 Equinox Predator Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position Dip Switch position DMX Address...
  • Page 9 w w w . p r o l i g h t . c o . u k...

This manual is also suitable for:

Eqled32
