- Page 1 HiArc T 180 Operating manual Manual de instrucciones Manuel d’utilisation Manual de utilização Инструкции по эксплуатации...
- Page 3 OPERATING MANUAL English © Kemppi Oy / 1410...
-
Page 4: Table Of Contents
................. .. Ordering numbers ............Technical data ..............Hiarc T 180... -
Page 5: Introduction

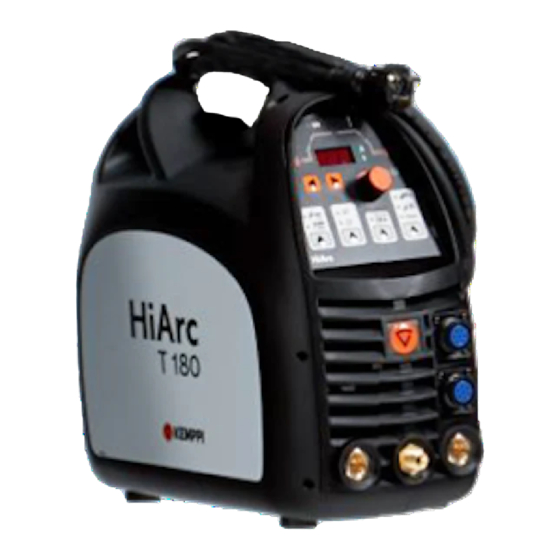

Kemppi. About the product HiArc T 180 is a compact and robust direct current welding machine suitable for MMA and TIG welding. Extremely light in weight for its output power, the machine is easy to carry to the work place with either the inbuilt moulded carry handle or the shoulder strap provided. -
Page 6: Before Starting
Site the machine so that it does not come into contact with hot surfaces, sparks and welding spatter. Make sure the airflow to and from the machine is unrestricted. Main components Welding torch Earth return cable and clamp Main switch Mains cable Shielding gas hose connector Hiarc T 180... -
Page 7: Distribution Network
The welding torch is used to supply shielding gas and electrical arc energy to the weld piece. When you press the welding torch switch, the shielding gas begins to flow and the arc is established. The TIG torch is connected to the negative pole. © Kemppi Oy / 1410... - Page 8 Connect the hose to the reduced pressure side of the cylinder regulator, or flow meter and tighten the connector. Adjust the shielding gas flow rate with the flow regulation adjustment screw. A suitable gas flow rate is 8–15 l/min Close the cylinder valve after use. Hiarc T 180...
-
Page 9: Welding Power Selection And Electrodes
It is also important to properly adjust the welding current so that the filler material and coating will melt properly and the welding is efficient. The table below presents the electrode sizes available with the HiArc T 180 welding machine and the corresponding welding current values. -
Page 10: Use
NOTE! explosion! Welding processes HiArc T 180 is a precise welding tool and will provide high quality results time after time provided the correct operational procedures are followed. Welding quality is not only influenced by the machine itself. Personal expertise, ancillary equipment and consumables also play an essential role, as does the correct, fused supply power. -
Page 11: Operating Functions
The light switches off again, when the machine is ready for operation. Make sure that there is enough space around the machine to allow the air to freely circulate and flow into and out off the machine. © Kemppi Oy / 1410... -
Page 12: Welding Selections
For HF ignition, press the HF button so that the indicator is on (item 6). Press the TIG torch trigger and hold or release, depending on whether 2T or 4T is Hiarc T 180... -
Page 13: Setup Features
Minimum setting for pre-gas time 0,0…10,0 s 1.0 s Minimum setting for post-gas time 5.0…20.0 s 10.0 s Maximum setting for pre-gas time 15…99 s 30 s Maximum setting for post-gas time -3…5 Arc dynamics (Arc Force) © Kemppi Oy / 1410... -
Page 14: Error Codes
*) Happens when exiting SETUP mode and value is 1. Voltage reduction device (VRD) HiArc T 180 contains a voltage reduction device (VRD), which reduces the open-circuit voltage below 35 V. This reduces the risk of electric shock in particularly dangerous environments, such as closed or damp spaces. VRD is activated through the setup menu. -
Page 15: Troubleshooting
• Ensure that cooling air has unrestricted flow. • The machine’s duty cycle has been exceeded. Wait for indicator to turn off. • Too low or high supply voltage. If the machine’s malfunction is not eliminated with these measures, contact KEMPPI service. © Kemppi Oy / 1410... -
Page 16: Maintenance
We recommend that you schedule a service inspection of your welding machine every six months. An authorised Kemppi service agent will inspect and clean your machine, ensuring that all power connections are tight and secure. Power connections can become loose and oxidised with frequent and high changes in temperature. -
Page 17: Ordering Numbers
ORDERING NUMBERS Product Part number Power Sources HiArc T 180, TTC 160 4 m P350 HiArc T 180, TTC 160 8 m P351 Cables Welding cable, 16 mm² 5 m 6184103 Welding cable, 25 mm² 5 m 6184201 Welding cable, 25 mm² 10 m 6184202 Earth return cable, 16 mm²... -
Page 18: Technical Data
TECHNICAL DATA HiArc T 180 Connection voltage 1 ~, 50/60 Hz 230 V ±15 % Rated power at max. current 6.7 kVA (180 A/17.2 V) 7.0 kVA (140 A/25.6 V) Supply current, I1max 29 A (180 A/17.2 V) 31 A (140 A/25.6 V) Supply current, I1eff 18 A (120 A/14.8 V) - Page 19 EMC class Operating temperature range -20 °C...+40 °C Storage temperature range -40 °C...+60 °C Recommended generator > 7 kVA Standards IEC 60974-1 IEC 60974-3 IEC 60974-10 © Kemppi Oy / 1410...
