Summary of Contents for Kemppi Minarc Evo 180

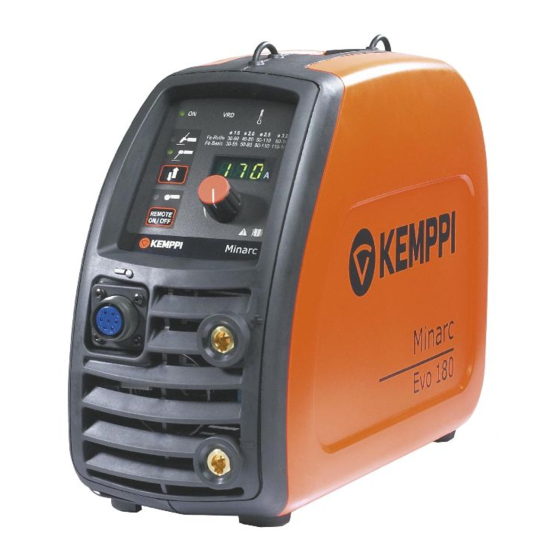

- Page 1 Minarc Evo 180 Operating manual Bruksanvisning Gebrauchsanweisung Manual de instrucciones Käyttöohje Manuel d’utilisation Manuale d’uso Gebruiksaanwijzing Brugsanvisning Instrukcja obsługi Manual de utilização Инструкции по эксплуатации Bruksanvisning 操作手册...
- Page 3 OPERATING MANUAL English...
-
Page 4: Table Of Contents
....................Ordering codes ....................Technical data ....................Minarc Evo 180... -
Page 5: Preface
(Australia, New Zealand) VRD for maintaining the open-circuit voltage at 12 volts is always included. Minarc Evo 180 tolerates fluctuations in input voltage, and it is suitable for on-site work using power generators and long power cables. The power source utilises PFC technology to ensure optimum usage on a single phase power supplies. -
Page 6: Before You Start Using The Unit
High rates of harmonic current may cause losses and disturbance to some equipment. Minarc Evo 180 comply with IEC 61000-3-12. Serial number The serial number of the unit is marked on the rating plate. The serial number makes it possible to trace product manufacturing series. -
Page 7: General View Of The Machine
Connect the earth return cable to the power source. Normally, the earth return cable and clamp is connected to the negative terminal ( – ). Clean the workpiece surface and fix the earth return cable clamp to the work piece in order to create a welding circuit. © Kemppi Oy / 1438... -
Page 8: Operating Functions
The machine should be reset via the main switch. If the light continues to flash, contact your Kemppi service shop. Always start and stop the machine from the main switch, never use the plug as a switch! -
Page 9: Use
Unrestricted current flow is only possible when the earth return clamp is properly attached to the workpiece and the fixing point of the clamp is clean, free from paint and rust. © Kemppi Oy / 1438... -
Page 10: Mma Welding
For more info, visit www.kemppi.com > Welding ABC. 3.2.1 Filler materials and equipment Minarc Evo 180 can be used with all electrode types suitable for DC welding. Electrode sizes for the unit are listed in Technical data section later in this manual. -
Page 11: Tig Welding
TIG welding Minarc Evo 180 can also be used for basic TIG welding and remote current control. The TIG arc is started by the touch and lift ignition technique. Order numbers for the additional equipment required for TIG welding and/or remote current control devices can be found in Ordering codes section later in this manual. -
Page 12: Dc Tig Welding
Argon shielding gas is used in DC TIG welding. Your dealer will give you advice on choosing the correct gas, supplier, and supporting equipment. Open the gas valve on the Kemppi TTM 15V TIG torch. When the gas starts to flow, ignite the arc. The arc is activated by lightly touching the work piece with the tungsten electrode and lifting away. -
Page 13: Using The Shoulder Strap
As you take the weight of the machine with the strap, the cable set is clamped securely into position ready for transport. The machine should not be used when hanging from the shoulder strap. NOTE! © Kemppi Oy / 1438... -
Page 14: Maintenance
• If the machine’s duty cycle has been exceeded, wait for indicator to turn off. In certain circumstances, this light may also indicate irregularity in the supply voltage. Too low or high supply voltage. If the machine’s malfunction is not eliminated with the above measures, contact Kemppi service. Minarc Evo 180... -
Page 15: Storage
The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European directive you will improve the environment and human health. -
Page 16: Technical Data
TECHNICAL DATA Minarc Evo 180 Connection voltage 1 ~ 50/60 Hz 230 V ± 15 % Connection voltage (AU) 1 ~ 50/60 Hz 240 V ± 15 % Rated power at max. current 30 % ED MMA 170 A / 5.7 kVA 35 % ED TIG 180 A / 4.0 kVA... - Page 18 KEMPPI OY KEMPPI, TRADING (BEIJING) COMPANY LTD Telefax +44 (0)845 6444202 Kempinkatu 1 sales.uk@kemppi.com Room 420, 3 Zone, Building B, PL 13 No.12 Hongda North Street, KEMPPI FRANCE S.A.S. FIN-15801 LAHTI Beijing Economic Development Zone, 65 Avenue de la Couronne des Prés...
