6 - Operation

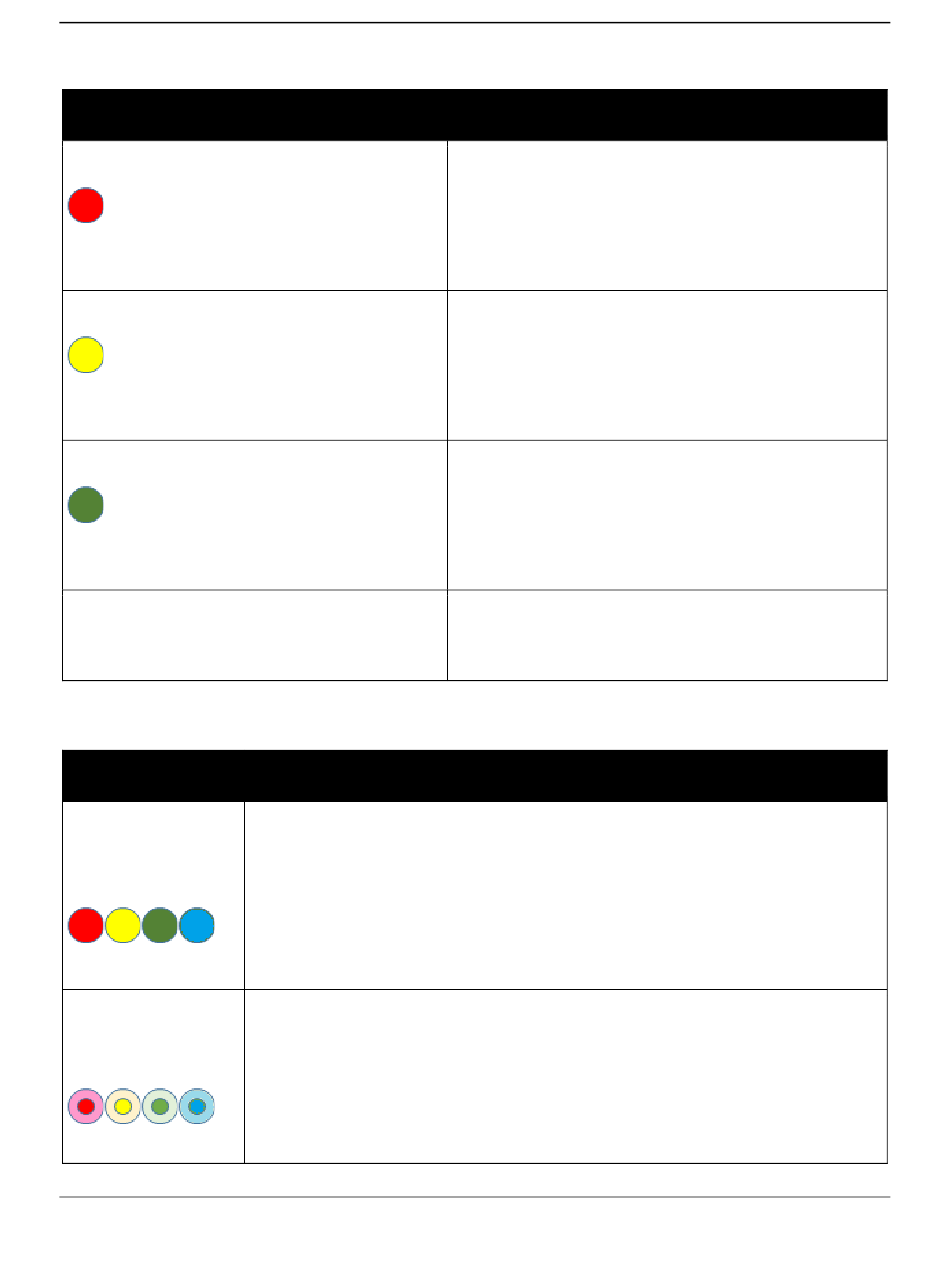

Table 6-2 – DynaFlex II LED Colors
Color
Red
Yellow
Green
Other Colors
Table 6-3 – DynaFlex II LED Patterns
Color
Solid
Blinking
DynaFlex II| Product Family | Installation and Operation Manual
Solid LEDs generally require an operator or cardholder to take action to change
the state the LED is reporting.
Example: Host is connected. Cardholder or host would have to disconnect.
Example: Host is disconnected. Host would have to initiate connection.
Blinking LEDs generally mean the device is in the process of doing / attempting
something. Blink duty cycle and blink period are generally selected to show
urgency or ongoing progress through a series of steps.
Example: Device is attempting to connect to the WLAN access point.
Page 32 of 78 (D998200554-10)
Stop or stopped
Example: LED1 is red. Stop using device: Battery is
about to run out of charge.
Wait or waiting
LED2 will show status for Access Point connection:
Green connected, yellow waiting for connection.
Go, going, or went
LED3 will show status for WebSocket connection:
Green connected, yellow Waiting for connection.
Reserved
Means
Means
