1 - Introduction
Figure 1-3 shows the major components of the optional charging cradle. The drain holes provide drainage
of liquid spills from the top surface of the cradle out through the bottom. The nesting feature allows
mechanical joining of any number of charging cradles into a unified charging bank. Note, the charging
cradle is only compatible with non-kiosk models of the device.

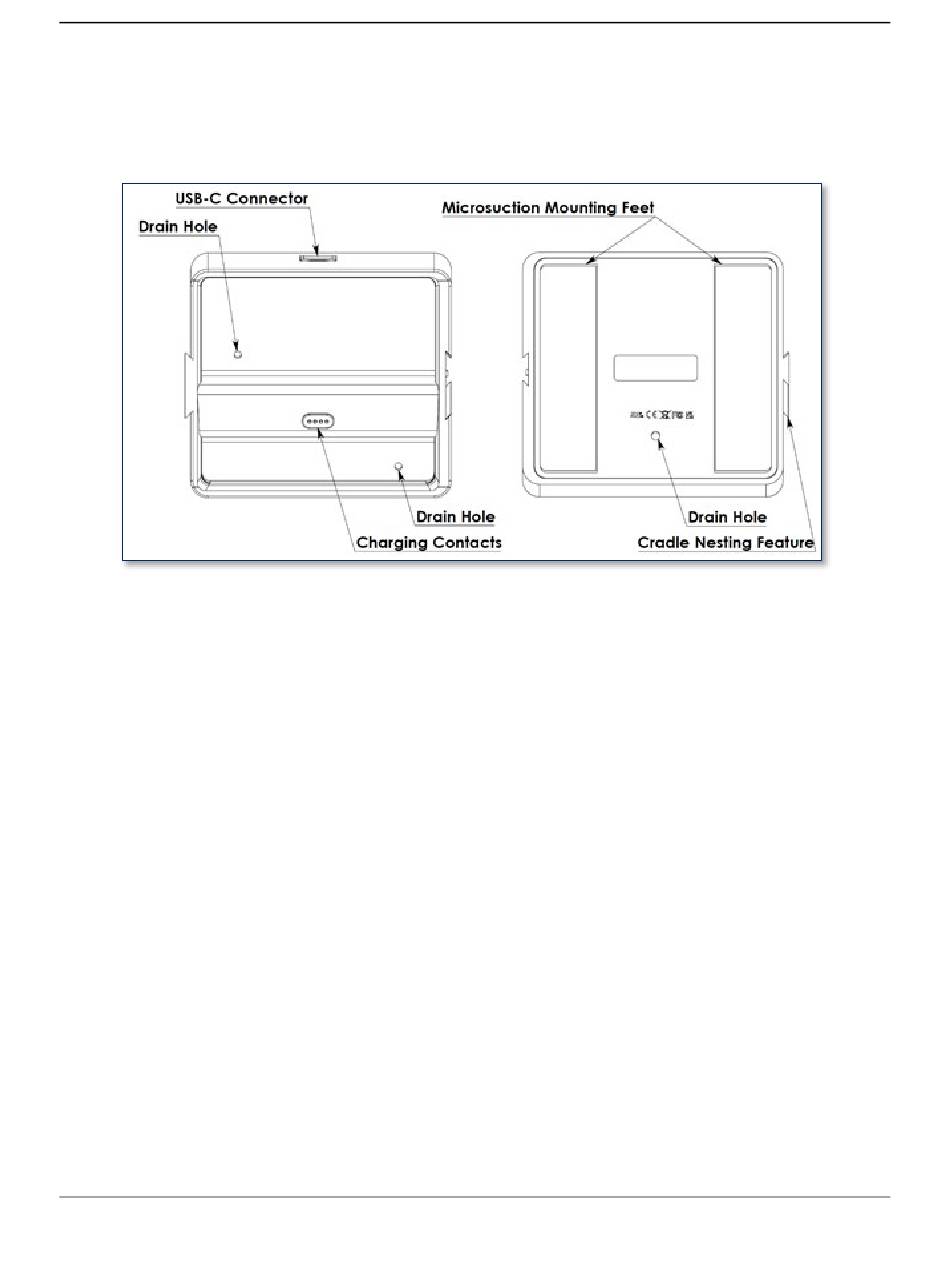

Figure 1-3 - Charging Cradle Major Components
DynaFlex II| Product Family | Installation and Operation Manual
Page 14 of 78 (D998200554-10)
