4 - Installation

4.3

Connecting to a Host

The following sections provide steps for connecting DynaFlex II products to a host via the various

available physical connection types.

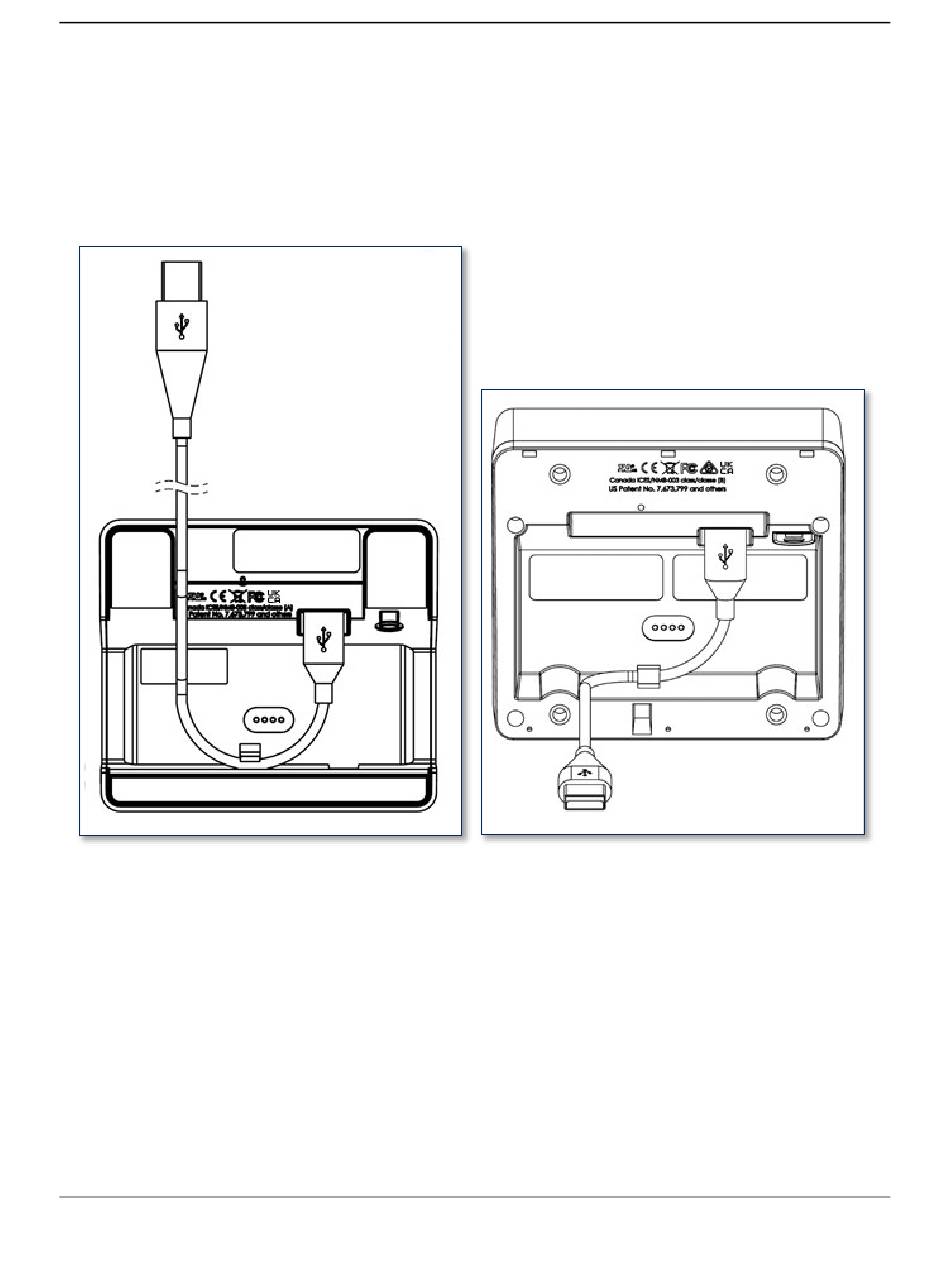

Figure 4-1 - Connecting to a USB Host or USB Charger. Left: Countertop Models. Right: Kiosk Models

To connect DynaFlex II products to a USB host or charger using the USB-C port, follow these steps (for

reference see Figure 4-1 and section 1.8 About DynaFlex II Components):

1) For best results, use the cable that is included with the device or another cable from Table 1-2 –

DynaFlex II Accessories on page 11. These cables are designed specifically for DynaFlex II products

and include ferrite shielding at both ends of the cable to reduce emissions and interference. If the

solution design requires an alternate cable, contact MagTek for assistance with ferrite selection and

placement, and with connector overmold design.

2) Connect the USB-C end of the cable to DynaFlex II or DynaFlex II PED.

3) If you plan to route the cable out the back of the device, route the cable through the cable

management clip to change its direction. Even if you are not routing out the back, you may use the

DynaFlex II| Product Family | Installation and Operation Manual

Page 20 of 78 (D998200554-10)
