- Page 1 DYNAPRO INSTALLATION AND OPERATION MANUAL PART NUMBER: 99875586 REV 1 AUGUST 2013 REGISTERED TO ISO 9001:2008 1710 Apollo Court Seal Beach, CA 90740 Phone: (562) 546-6400 FAX: (562) 546-6301 Technical Support: (651) 415-6800 www.magtek.com...
- Page 3 Information in this document is subject to change without notice. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express written permission of MagTek, Inc. MagTek is a registered trademark of MagTek, Inc.
- Page 4 This warranty shall be provided only for a period of one year from the date of the shipment of the product from MagTek (the “Warranty Period”). This warranty shall apply only to the “Buyer” (the original purchaser, unless that entity resells the product as authorized by MagTek, in which event this warranty shall apply only to the first repurchaser).
- Page 5 FCC WARNING STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
-
Page 7: Table Of Contents
Table of Contents SECTION 1: INTRODUCTION AND SPECIFICATIONS ................1 Product Description ..........................1 Design Objectives ............................. 1 Securing Personal Cardholder Data ..................... 1 Protection for all Points within the Payment Infrastructure ..............1 Security and Ease of Integration by Design .................. - Page 8 FIGURES Figure 1-1. DYNAPRO with Optional Privacy Shield ................2 Figure 1-2. Major Components (front) ..................... 3 Figure 1-3. Major Components (back) ..................... 4 Figure 1-4. RJ12 (or RJ25) 6-Pin Connector ................... 6 Figure 3-1. USB Interface ........................9 ...
-
Page 9: Section 1: Introduction And Specifications
Security and Ease of Integration by Design In addition to securing clear text card data, the DYNAPRO uses a 32-bit secure processor which incorporates flexible data formatting and masking capabilities for compatibility with existing software and payment applications, eliminating the need for recertification. -
Page 10: Design Features

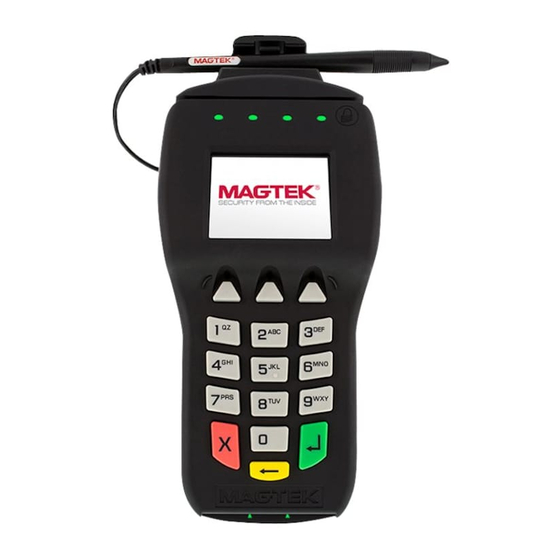

Flexible Data Masking Real-time electronic signature capture (in some models) USB HID Device or Ethernet Device Optional Privacy Shield Backlit color LCD graphics ICC Card Reading Contactless Card Reading Figure 1-1. DYNAPRO USB and ETHERNET... -
Page 11: Major Components
Introduction and Specifications MAJOR COMPONENTS The major components of the DYNAPRO are shown in Figures 1-2, 1-3 and 1-4. Note: The ferite bead must remain attached to the stylus cable at all times, do not remove. Changes or modifications not expressly approved by Magtek could void the user's authority to operate the equipment. -
Page 12: Figure 1-3. Major Components (Back)

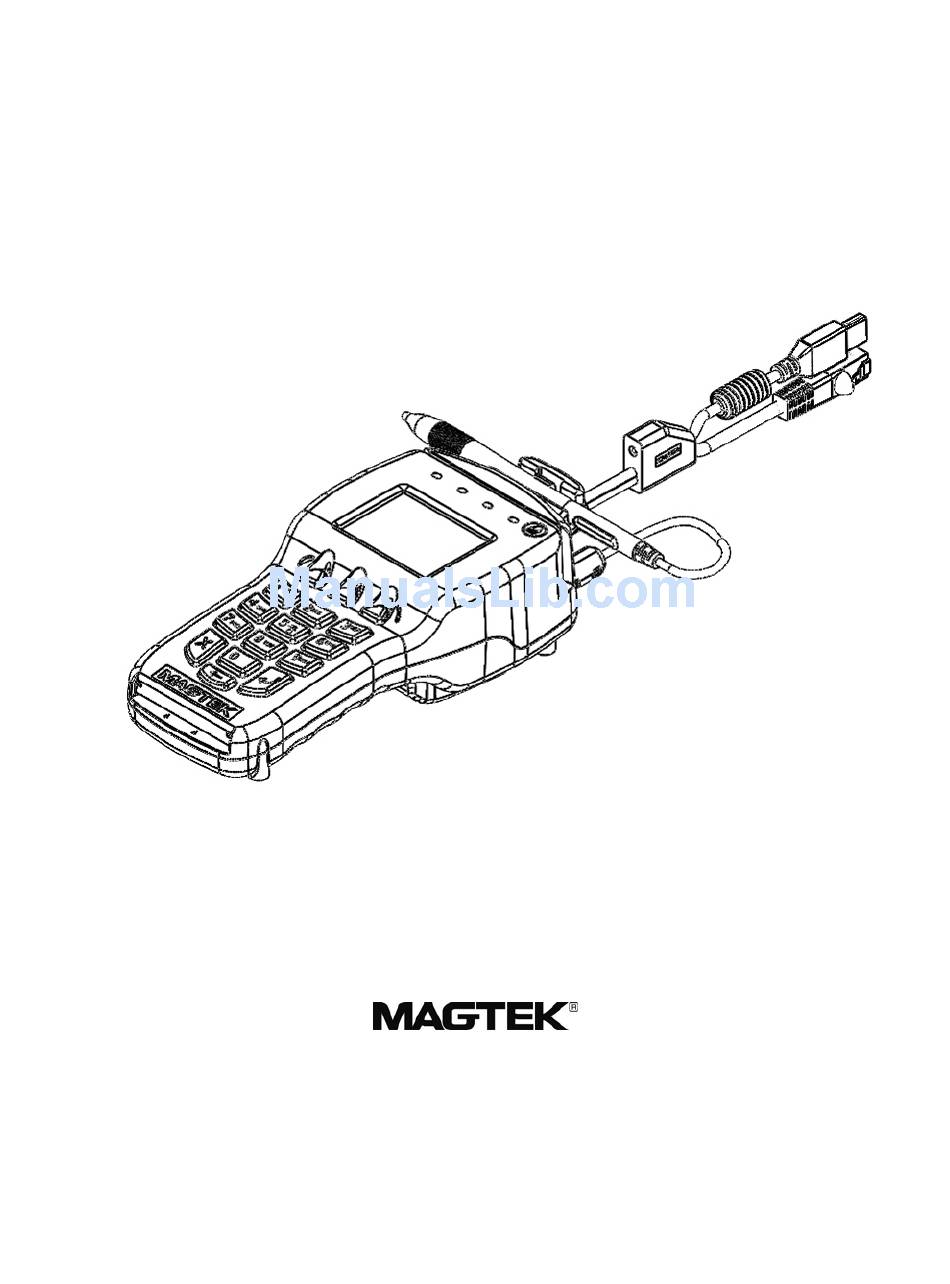

DYNAPRO Installation and Operation Manual Figure 1-4. Major Components (back) -
Page 13: Specifications
Introduction and Specifications SPECIFICATIONS Electrical Power Input: USB Bus Powered Voltage: 5VDC Current: 250mA (900mA with contactless) Interfaces: USB 2.0 (USB 1.1 compatible) Display Type: Backlit, color liquid crystal display (LCD) Display Resolution: 240 x 320 dpi Flash Memory: 256 MBit Internal SDRAM memory: 64 MBit Battery type:... -
Page 14: Pinout On Rj-12 (Or Rj-25) 6-Pin Connector
DYNAPRO Installation and Operation Manual PINOUT ON RJ-25 6-PIN CONNECTOR RJ25 Signal Connector VBUS USB_DM USB_DP CGND Figure 1-5. RJ25 6-Pin Connector... -
Page 15: Section 2: System Requirements & Device Features
The DYNAPRO enclosure and its associated electronics have been designed to form a Tamper Resistant Security Module (TRSM). The covers are securely attached and incorporate sensing circuits to detect if any attempt is made to open the unit. Internal spaces within the DYNAPRO have been minimized to reduce the possibility of unauthorized modifications. -
Page 16: Icc Card Reading
The card reader is capable of reading any ISO or AAMVA encoded magnetic stripe data. ICC Card Reading The DYNAPRO includes a smart card (ICC) reader. The card is inserted from the front of the unit under the keypad. Contactless Card Reading... -
Page 17: Section 3: Installation
SECTION 3: INSTALLATION USB INSTALLATION To connect the DYNAPRO to a computer, connect its USB cable to the USB port on the computer as shown in Figure 3-1. Note: the standard USB cable P/N 30019317 is six feet long. Warning Connecting or disconnecting the USB cable from the back side of the DYNAPRO when the computer is ON may clear the encryption keys. - Page 18 DYNAPRO Installation and Operation Manual Figure 3-2. Ethernet Interface...
-
Page 19: Privacy Shield Installation
Installation PRIVACY SHIELD INSTALLATION To install the Privacy Shield, follow the steps below. Place the clips of the open end of the Privacy Shield into the openings located just above the contact card slot as shown in Figure 3-2. Privot the shield down, locking the three clips into the holes located just above the function buttons. -
Page 20: Mounting Dimensions
The overall dimensions of the unit and the mounting hole locations are shown in Figure 3-4. This drawing is not to scale and dimensions are given in inches. In addition, mounting the DYNAPRO to a surface will require size # 4-40 screws. Notes: All dimensions are XX= +/- 0.02 in inches. -
Page 21: Section 4: Operation
Refer to appropriate personnel if there are any questions about the prompts or any part of the operation. The DYNAPRO will display “Welcome” on its LCD (see figure 4-1 for an example) to indicate that it is ready to enter a new transaction. -
Page 22: Card Reading
When the appropriate prompt appears (see Figure 4-2 for an example), swipe the card with the magnetic stripe down and facing toward the keypad of the DYNAPRO as indicated in Figure 4-3 below. If the magnetic stripe data could not be read, the application may prompt the user to swipe the card again. -
Page 23: Manual Card Entry
MANUAL CARD ENTRY If the swiped card’s magnetic stripe is damaged or unreadable, the application controlling the DYNAPRO may prompt the cardholder to enter information from his or her card manually, as shown in the following example: Figure 4-4. Example of User Screen to Manually Enter Card Data The account number field has a minimum of 16 and a maximum of 19 digits. -
Page 24: Pin Entry
DYNAPRO Installation and Operation Manual PIN ENTRY When PIN entry is required, the LCD will prompt the cardholder to enter his or her PIN (the PIN field has a minimum of 4 and a maximum of 12 digits for PIN entry) as required by the financial institution (see figure 4-6 for a sample LCD display). -
Page 25: Signature Capture
Operation SIGNATURE CAPTURE If your DYNAPRO has signature capture capability, the LCD will prompt the cardholder to enter a signature to complete the transaction (see figure 4-7 for a sample LCD display). After the cardholder has entered his or her signature, the ENTER key must be pressed. -
Page 26: Section 5: Maintenance
CLEANING Periodic cleaning of the DYNAPRO’s exterior may be required. To clean the outside of the DYNAPRO, wipe down the unit with a soft, damp cloth and then wipe with a dry cloth. Caution To avoid damaging the read head, do not touch the inside of the card path with a wet cloth.
