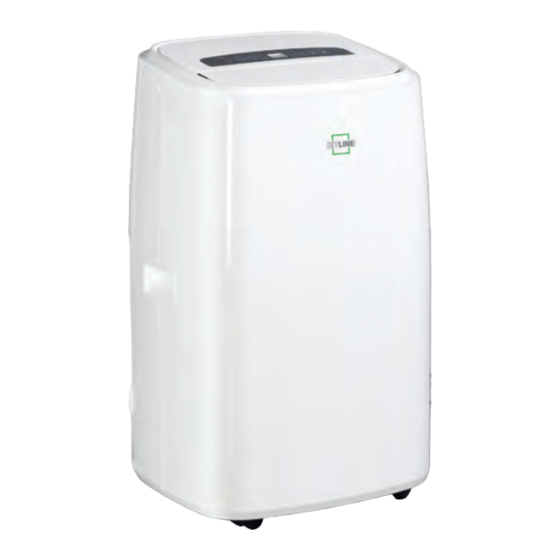

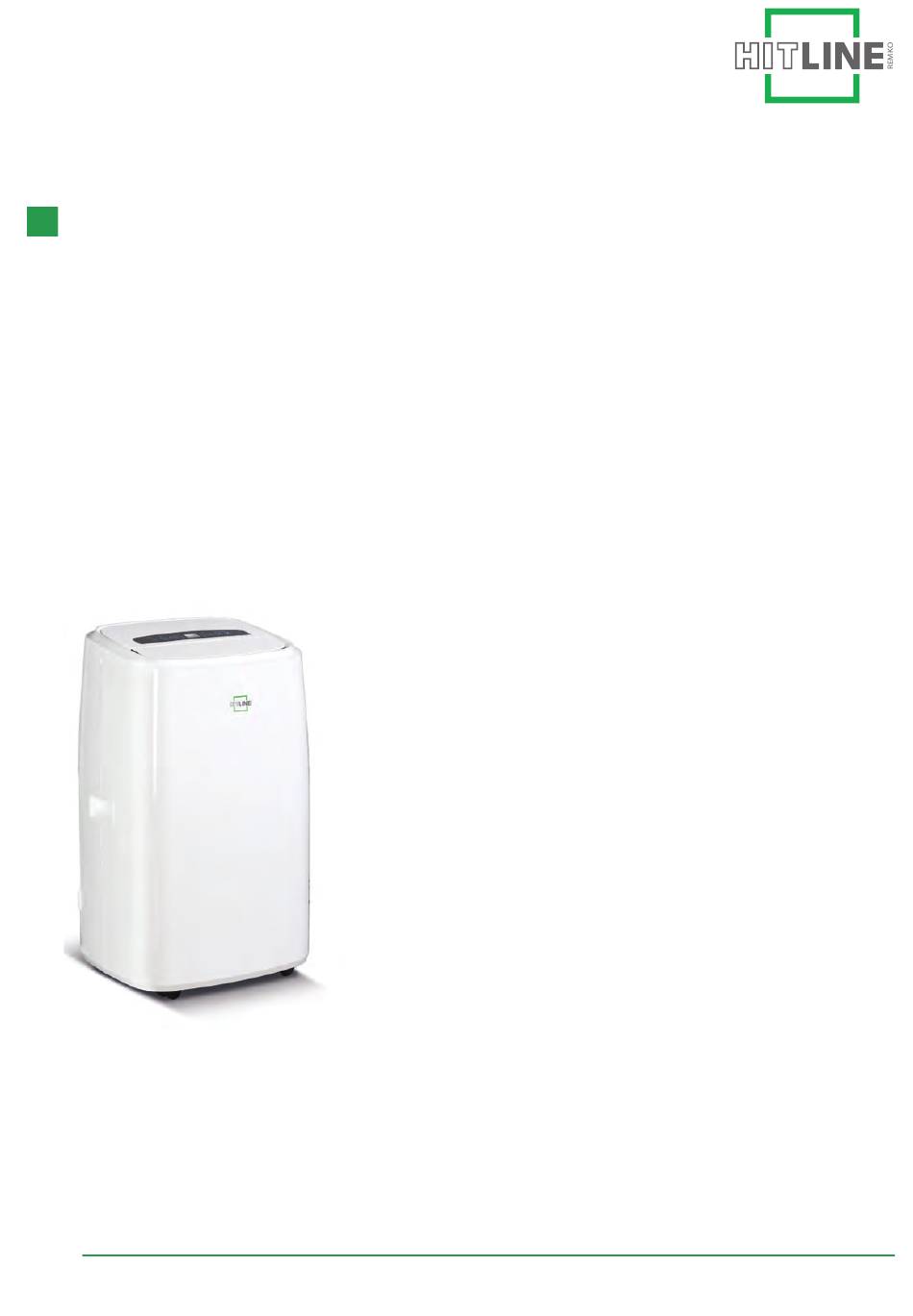

- Page 1 Operating and installation instructions REMKO SKM Eco series Local room air conditioner in compact design SKM 250 Eco, SKM 330 Eco 0267-2020-10 Edition 1, en_GB Read the instructions prior to performing any task!
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must R290 always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- Refrigerant prints! Translation of the original...
-
Page 3: Table Of Contents
Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Additional safety notes when handling refrigerant R290..............4 1.3 Identification of notes........................5 1.4 Personnel qualifications........................5 1.5 Dangers of failure to observe the safety notes................5 1.6 Safety-conscious working....................... -
Page 4: Safety And Usage Instructions
REMKO SKM Eco series Safety and The safety notes in regards to the room sizes and the flammability of the refrigerant must not usage instructions be removed from the machine. The units may only be operated in well venti- 1.1 General safety notes lated areas. -
Page 5: Identification Of Notes
Intervention in the refrigeration circuit may only be done by certified specialist personnel taking WARNING! into account the safety notes of the manufac- This combination of symbol and signal word turer. warns of a potentially hazardous situation, Maintenance and repairs may only be carried which if not avoided may be fatal or cause out by authorised personnel which have the serious injury. -
Page 6: Safety-Conscious Working
REMKO SKM Eco series 1.6 Safety-conscious working All housing parts and unit openings, e.g. air inlets and outlets, must be free from foreign The safety notes contained in this manual, the objects, fluids or gases. existing national regulations concerning accident... -
Page 7: Safety Notes For Installation, Maintenance And Inspection
Do not stand or sit on the unit. Do not operate the unit with defective cables or sockets. Unplug the power plug before cleaning the unit. 1.8 Safety notes for installation, maintenance and inspection Check the work area Before starting work on units with combustible refrigerants, ensure that any potential ignition sources are removed and the risk of igniting the refrigerants is eliminated. - Page 8 REMKO SKM Eco series Sufficient ventilation Repairing of intrinsically safe components Before starting work, ensure that the working Do not introduce permanent inductive or area is outdoors or has sufficient ventilation. A capacitive loads into the existing circuits continuous ventilation stream is required while without ensuring that the maximum permitted working.
-
Page 9: Unauthorised Modification And Changes
Leak detection methods Filling process The following leak detection methods are per- The following requirements for the general mitted for systems with combustible refriger- specifications must also be fulfilled during the ants. Electronic equipment must be used for filling process: detecting leaks. -
Page 10: Intended Use
"certificate of warranty" to REMKO GmbH & Co. KG at the time when the units are purchased and commissioned. The warranty conditions are detailed in the "Gen- eral business and delivery conditions". -
Page 11: Technical Data
Technical data 2.1 Unit data Series SKM 250 Eco SKM 330 Eco Operating mode Local compact air conditioning unit for cooling Nominal cooling output Energy efficiency ratio - cooling Energy efficiency rating EER Energy consumption, hourly kWh/60 min Application area (room volume), approx. Adjustment range indoor unit °C +16 to +32... -
Page 12: Design And Function
REMKO SKM Eco series Design and function Unit description The local air conditioning unit is particularly well suited to flexible use. The local room air conditioner comprises a floor- standing unit for the indoor area and an exhaust air hose to conduct the heat away. The indoor unit... -
Page 13: Operation
Operation The system can be operated by means of the control panel on the unit or via the standard infrared remote controller. The functional operation of the keys is identical, however, the designation may vary. The batteries must be correctly inserted before the infrared remote control is used. Fig. - Page 14 REMKO SKM Eco series "▲/▼- THERMO/TIMER CONTROL" keys Infrared remote control General notes The target temperature can be set by pressing the "▲/▼" keys. This can be adjusted in a range of 16 With the unit switched on any change to the to 32 °C in 1 °C steps.
-
Page 15: Assembly And Installation
Assembly and Check whether the stopper in the condensate drain is present and correctly installed. There is installation a risk of uncontrolled condensate leakage after commissioning. Assembly and unit installation instructions The unit is positioned at the desired location with the discharge side pointing into the room. - Page 16 REMKO SKM Eco series Conduct the warm exhaust air away Via a wall pass-through The hose supplied is firmly attached to a wall pass- through. A suitable wall pass-through is available NOTICE! as an accessory (Fig. 11). The exhaust air hose should always be laid...
-
Page 17: Commissioning
Permanent shutdown The entire system should only be dismantled by a specialist firm familiar with all environmental aspects involved. REMKO GmbH & Co. KG or your contractual partner will be pleased to provide a list of refrigerant specialists in your area. -
Page 18: Electrical Wiring
REMKO SKM Eco series Electrical wiring Electrical wiring diagram CN 6 BLACK CN 5 WHITE GREEN Fig. 12: Electrical wiring diagram A: Power supply Fan motor, evaporator B: Control board Capacitor fan motor, evaporator C: Diplay board Compressor Liquid level switch... -
Page 19: Troubleshooting And Customer Service
Troubleshooting and customer service The unit has been manufactured using state-of-the-art production methods and has been tested several times to ensure that it works properly. If malfunctions should occur, please check the unit as detailed in the list below. Please inform your dealer if the unit is still not working correctly after all the function checks have been performed. -
Page 20: Care And Maintenance
REMKO SKM Eco series Care and maintenance Filter cleaning The unit is equipped with an air filter. This can be Regular care and observation of some basic points withdrawn from the rear of the unit. The filters must will ensure trouble-free operation and a long be cleaned at regular intervals. -
Page 21: General View Of Unit And Spare Parts
General view of unit and spare parts 11.1 Exploded view of the unit Fig. 14: Exploded view of the unit SKM 250-330 Eco We reserve the right to modify the dimensions and design as part of the ongoing technical development process. -
Page 22: Spare Parts List
REMKO SKM Eco series 11.2 Spare parts list IMPORTANT! To ensure the correct delivery of spare parts, please always the device type with the corresponding serial number (see type plate) No. Designation SKM 250 Eco SKM 330 Eco Base pan... - Page 23 No. Designation SKM 250 Eco SKM 330 Eco Capacitor for fan motor 3 mF Capacitor for fan motor 2 mF Air filter ambient air Sensor (for indoor) Fix ture sensor Display board Cover display board Air outlet grille Sensor temperature liquid pipe) Control board Power supply cord complete On request by pro-...
-
Page 24: Index
REMKO SKM Eco series Index Ordering spare parts ..... 22 Assembly ......15 Recirculated air filter . - Page 26 REMKO SKM Eco series...
