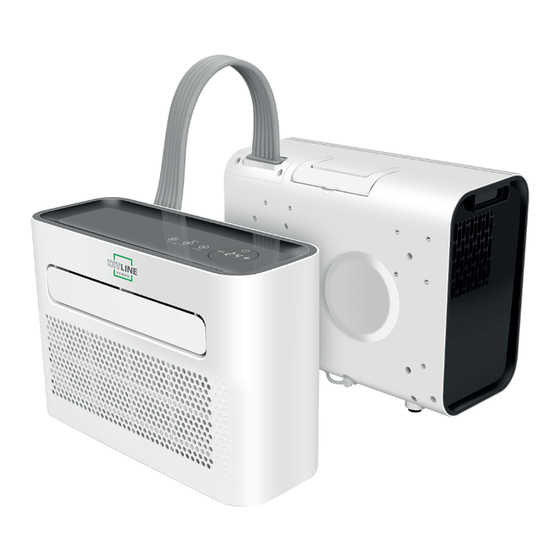

- Page 1 Operating and installation instructions REMKO SKC series Local camping air conditioner in compact design SKC 150 0344-2023-05 Edition 1, en_GB Read the instructions prior to performing any task!
- Page 2 Read these operating instructions carefully before commis- sioning / using this device! These instructions are an integral part of the system and must R290 always be kept near or on the device. Subject to modifications; No liability accepted for errors or mis- Refrigerant prints! Translation of the original...
-
Page 3: Table Of Contents
Table of contents Safety and usage instructions......................4 1.1 General safety notes........................4 1.2 Additional safety notes when handling refrigerant R290..............4 1.3 Identification of notes........................5 1.4 Personnel qualifications........................5 1.5 Dangers of failure to observe the safety notes................5 1.6 Safety-conscious working....................... -
Page 4: Safety And Usage Instructions
REMKO SKC series Safety and The safety notes in regards to the room sizes and the flammability of the refrigerant must not usage instructions be removed from the machine. The units may only be operated in well venti- 1.1 General safety notes lated areas. -
Page 5: Identification Of Notes
WARNING! CAUTION! Do not use anything other than the agent rec- This combination of symbol and signal word ommended by the manufacturer to speed up a warns of a potentially hazardous situation, possible defrosting process or to clean the which if not avoided may cause injury or mate- units. -
Page 6: Safety Instructions For The Operator
REMKO SKC series 1.7 Safety instructions Read this manual carefully before commissioning! for the operator 1.8 Safety notes for installation, The operational safety of the units and compo- maintenance and inspection nents is only assured providing they are used as intended and in a fully assembled state. - Page 7 Checking the refrigerant circuit according to the situation-dependent condi- tions. Only use components which are officially If electronic components need to be replaced, approved by the manufacturer as spare parts. ensure that the spare parts have the same Unapproved components can cause a fire in function and identical technical specifications.
-
Page 8: Unauthorised Modification And Changes
REMKO SKC series Leak detection methods Filling process The following leak detection methods are per- The following requirements for the general mitted for systems with combustible refriger- specifications must also be fulfilled during the ants. Electronic equipment must be used for filling process: detecting leaks. -
Page 9: Intended Use
"certificate of warranty" to REMKO GmbH & Co. KG at the time when the units are purchased and commissioned. The warranty conditions are detailed in the "Gen- eral business and delivery conditions". -
Page 10: Technical Data
REMKO SKC series Technical data 2.1 Unit data Series SKC 150 Operating mode Camping air conditioner Nominal cooling output Energy efficiency ratio Energy efficiency rating EER Energy consumption, hourly 0.56 Dehumidification capacity Electrical rated power consumption 0.56 Electr. rated current consumption... -
Page 11: Unit Dimensions
2.2 Unit dimensions Fig. 1: Unit dimensions (all measurements in mm) Information provided without guarantee! We reserve the right to make technical changes within the frame- work of technical advancement. -
Page 12: Scope Of Delivery
REMKO SKC series Scope of delivery Fig. 2: Scope of delivery Item Number Designation Outdoor unit bracket Indoor unit bracket Spring washer M6 Bolt M6 Star grip screw M6 Rubber buffer Condensate hose Protective pipe jacket... -
Page 13: Design And Function
Design and function In cooling mode, the thermal energy contained in the room air is absorbed via the evaporator (heat Unit description exchanger) and transferred to the refrigerant. This transfers the thermal energy to the outside air via The mobile split air conditioner is designed exclu- the condenser (heat exchanger) located in the out- sively for use in the caravanning sector (e.g. -
Page 14: Operation
REMKO SKC series Operation "-/+" keys for setpoint adjustment This key is used to set the temperature setpoint in The unit is operated via the control panel located 1 °C increments. The adjustment range for the on the unit. The display shows operating parame- target temperature is between +16 °C and +30 °C. - Page 15 Setting the operating mode Switch-off delay "Cooling" mode Make sure that the unit is connected to the power supply and is switched on. Make sure that the unit is connected to the power supply and is switched on. Press and hold the "MODE" key for 3 sec- onds to activate the switch-off delay.
-
Page 16: Assembly And Installation
REMKO SKC series Assembly and installation Screw the rubber buffers into the holes pro- vided on the back of the outdoor unit. Assembly and unit installation instructions The unit consists of an outdoor unit and an indoor unit, which can be hung in the desired vent window using the mounting brackets included in the scope of delivery. - Page 17 Hang the indoor unit on the mounting brackets. Hang the unit combination with the mounting Use the guides on the back of the unit for this brackets into the frame of the vent window and purpose. fix it with the screw clamps of the mounting bracket.
-
Page 18: Commissioning
REMKO SKC series Commissioning Condensate drainage In cooling mode, the condensate produced is con- Before every commissioning the air inlet and outlet tinuously pumped via the connecting line into the openings should be checked for foreign bodies and outdoor unit, where it is centrifuged to the con- the air inlet filter must be checked for dirt. -
Page 19: Shutdown
Permanent shutdown The entire system should only be dismantled by a specialist firm familiar with all environmental aspects involved. REMKO GmbH & Co. KG or your contractual partner will be pleased to provide a list of refrigerant specialists in your area. -
Page 20: Electrical Wiring
REMKO SKC series Electrical wiring Electrical wiring diagram Y/GN 10 11 AC-OUT AC-N1 AC-N Y/GN AC-L Fig. 14: Electrical wiring diagram A: Control board Indoor unit condensate pump B: Display circuit board Swing fins Power supply Temperature probe, evaporator Compressor... -
Page 21: Troubleshooting And Customer Service
Troubleshooting and customer service The unit has been manufactured using state-of-the-art production methods and has been tested several times to ensure that it works properly. If malfunctions should occur, please check the unit as detailed in the list below. Please inform your dealer if the unit is still not working correctly after all the function checks have been performed. - Page 22 REMKO SKC series Error codes If the unit detects an error, it is shown on the unit display using an error code. In the list below, the individual error codes with the respective cause and possible remedial measures are listed. Repair work may only be...
-
Page 23: Care And Maintenance
Care and maintenance Regular care and observation of some basic points will ensure trouble-free operation and a long service life. DANGER! Prior to performing any work, ensure the equip- ment is disconnected from the voltage supply and secured to prevent accidental switch-on! Clean the unit using a damp cloth. -
Page 24: View Of Unit And Spare Parts List
REMKO SKC series View of unit and spare parts list 12.1 View of the unit Fig. 15: Exploded view We reserve the right to modify the dimensions and design as part of the ongoing technical development process. -
Page 25: Spare Parts List
12.2 Spare parts list IMPORTANT! To ensure the correct delivery of spare parts, please always the device type with the corresponding serial number (see type plate) No. Designation SKC 150 Swing fins Housing front of indoor unit Operating panel Housing cover of indoor unit Swing motor Display board Air outlet protection grid... - Page 26 REMKO SKC series No. Designation SKC 150 Housing floor Compressor Centrifugal pump motor Centrifugal impeller, centrifugal pump On request by providing the serial number Outdoor unit spacer Mounting bracket of indoor unit Mounting bracket of outdoor unit We reserve the right to modify the dimensions and design as part of the ongoing technical development...
-
Page 27: Index
Index General ......4 Identification of notes ....5 Assembly . - Page 28 REMKO QUALITY WITH SYSTEMS Air-Conditioning | Heating | New Energies Telephone +49 (0) 5232 606-0 REMKO GmbH & Co. KG Hotline within Germany +49 (0) 5232 606-0 Klima- und Wärmetechnik Telefax +49 (0) 5232 606-260 Im Seelenkamp 12 E-mail info@remko.de...
